New

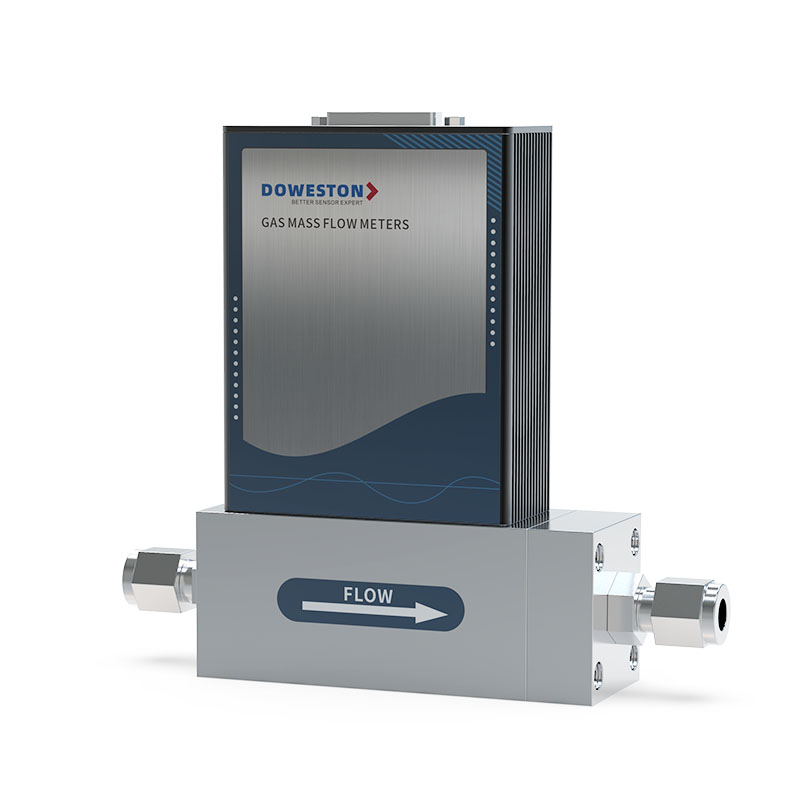

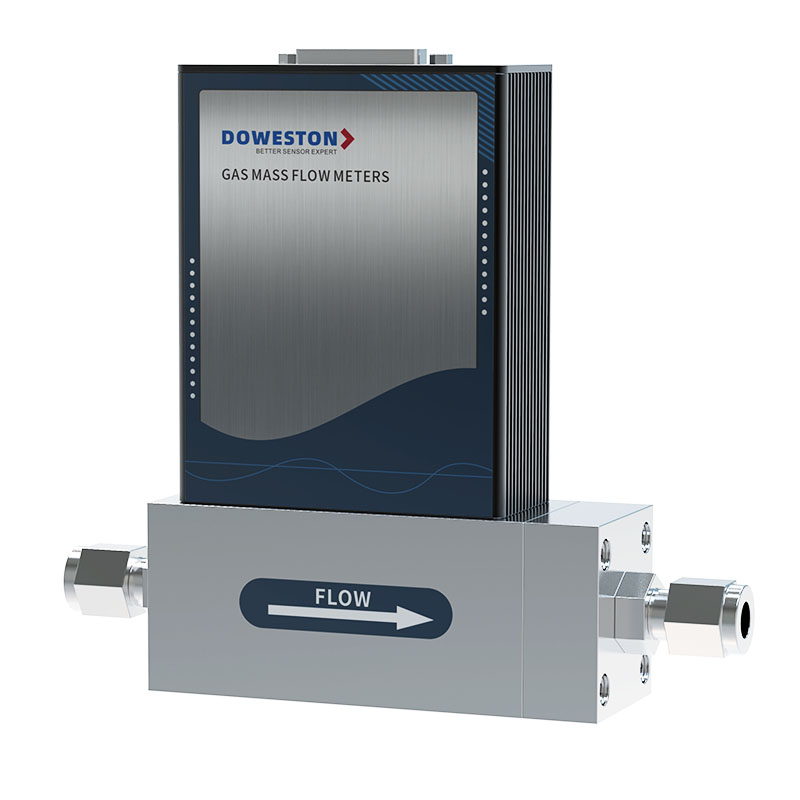

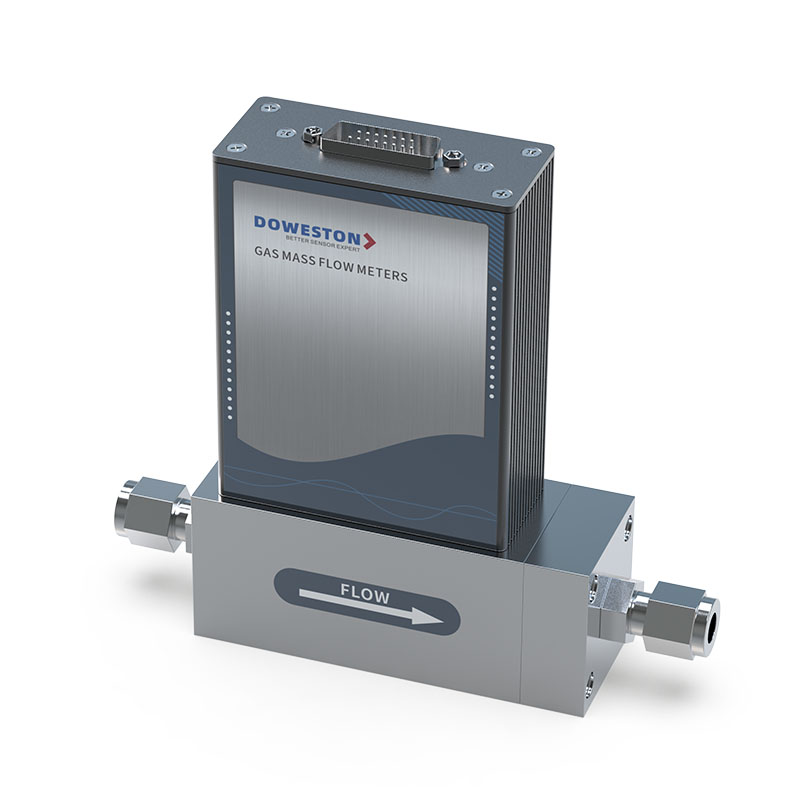

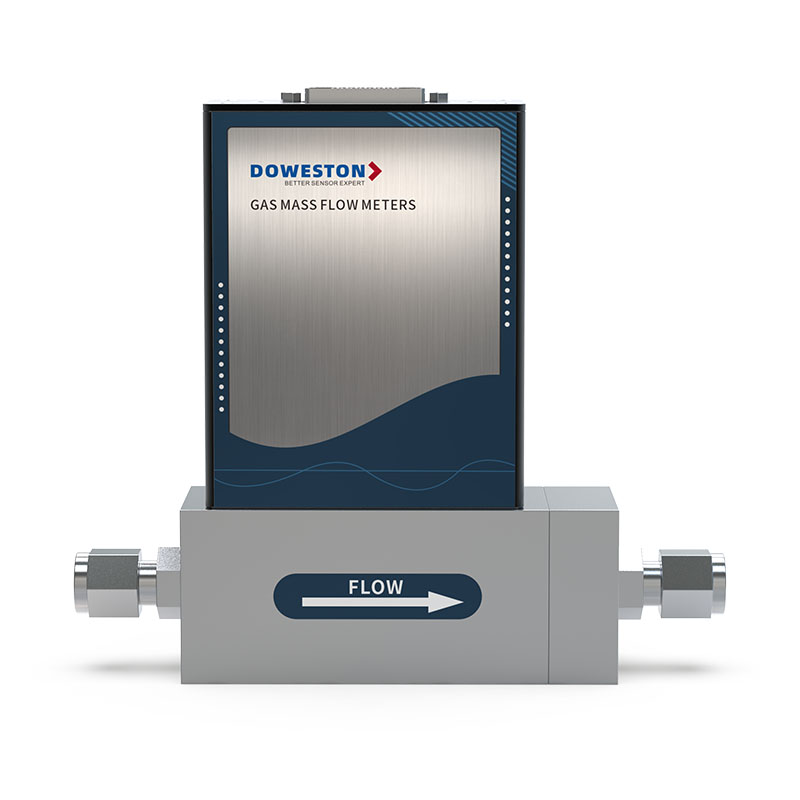

FTW-1600MM series micro gas flow meter
Designed for pipe diameters 8mm-12mm
designed for low-velocity flow metering in gas pipelines
Limitsmallspan 5SCCM, has excellent performance in low and medium flow rates and slow flow conditions, and is the first choice for flow measurement in laboratories, testing and other places.
● 30SLM~150SLMrange,
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● suitable for low- and high-pressure piping
● short warm-up time, minimal zero drift, high reliability
| Sensor | |||
| Measuring range | 30SLM~150SLM | ||
| Turndown Ratio | 100:1 | ||
| Accuracy | ±1.0%F.S | ||
| Linear | ±0.5%F.S | ||
| Repeatability | ±0.2%F.S | ||
| Response Time | <1.5S | ||
| Analog | 0-5V, 4-20mA | ||
| Power supply | ±15 V DC, 24 V DC | ||
| Operating Temperature | 0to 50°C | ||
| Working Pressure | Working pressure drop: <30Kpa | ||
| Maximum pressure resistance | 3Mpa/10Mpa | ||
| Electrical Connection | DB9 hole | ||
| Leakage rate | 1×10-9SCCSHe | ||
| Temperature coefficient | ±0.015%F.S/℃ | ||
| Base material | Stainless Steel | ||
| Seal material | FKM (fluororubber), neoprene, NBR | ||
| Fittings | Φ8, Φ10, Φ12 | ||
