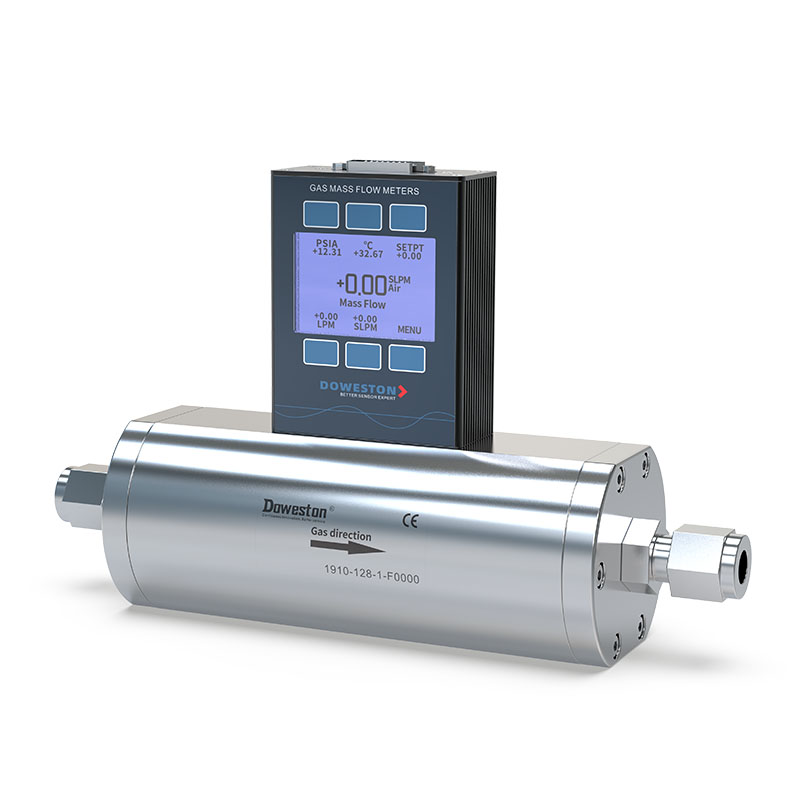

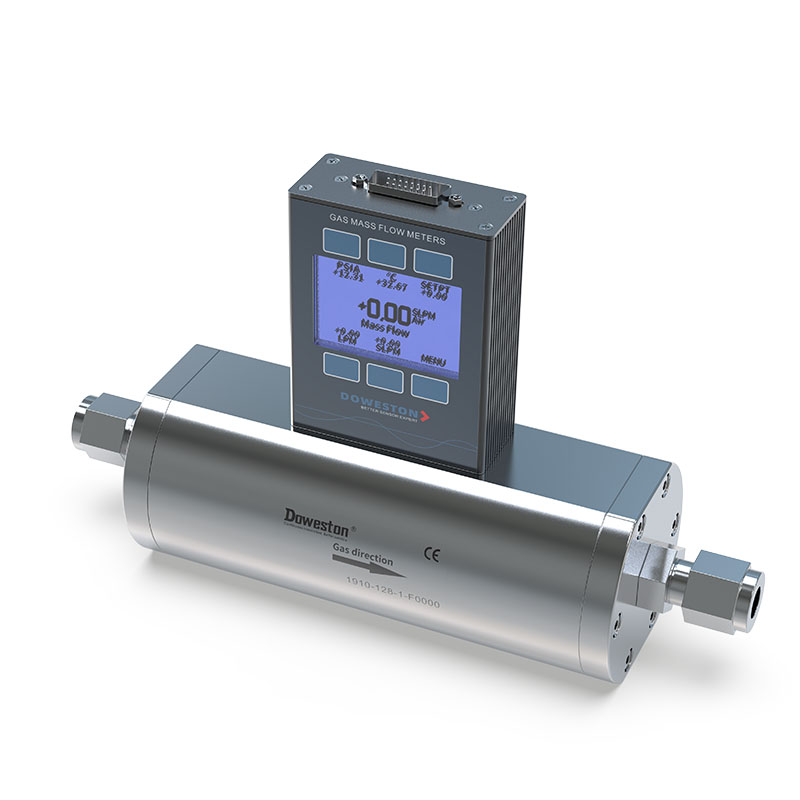

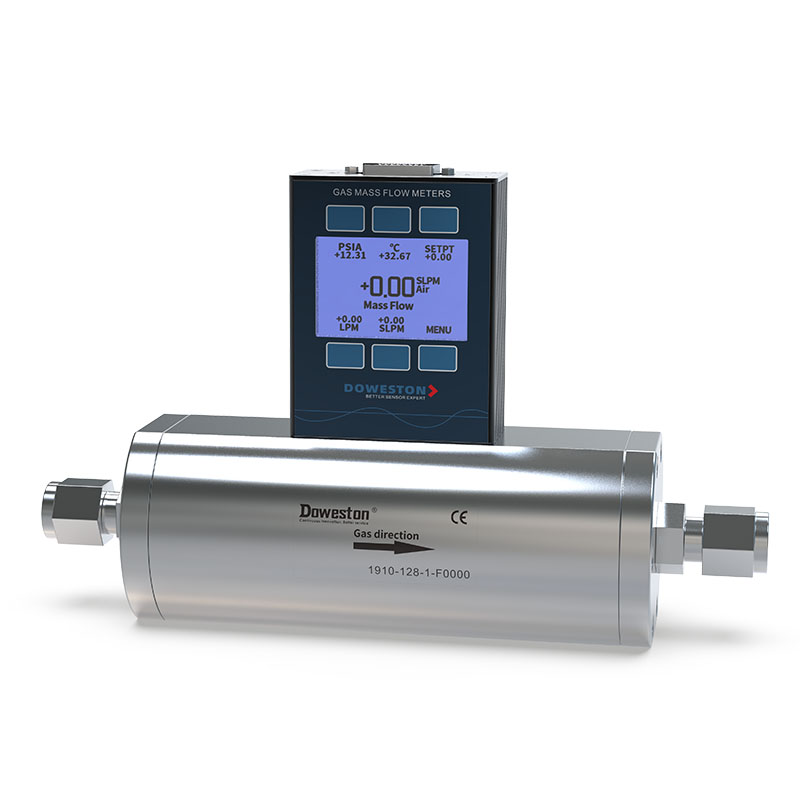

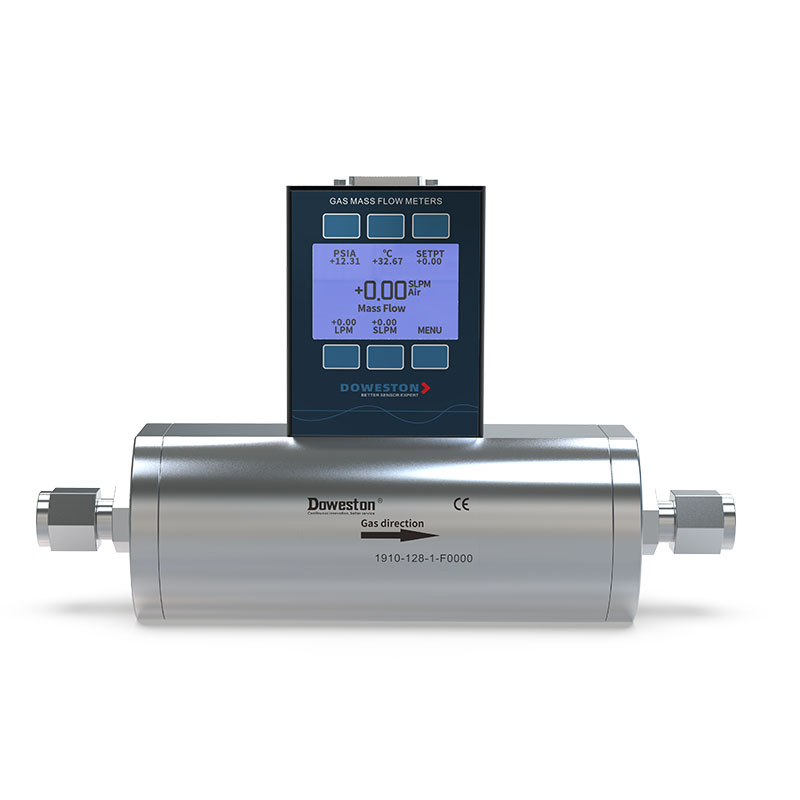

FTW-1600BM series micro gas flow meter
Designed for pipe diameters 12mm and above
Designed for high-speed flow measurement in gas pipelines
LimitsmallRange300SLM, has excellent performance in medium to high flow rates and slow flow conditions, and is the first choice for flow measurement in laboratories, testing and other places.
● 300SLM~3000SLMrange,
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● suitable for low- and high-pressure piping
● short warm-up time, minimal zero drift, high reliability
● Digital inputs/outputs allow flow control and display via secondary instruments or flow computers
| Sensor | |||
| Measuring range | 300SLM~3000SLM | ||
| Turndown Ratio | 100:1 | ||
| Accuracy | ±1.0%F.S | ||
| Linear | ±0.5%F.S | ||
| Repeatability | ±0.2%F.S | ||
| Response Time | <0.8S | ||
| Digital | RS232/485, MODBUS protocol | ||
| Analog | 0-5 V, 4-20 mA, 1-5 V | ||
| Power supply | ±15 V DC, 24 V DC | ||
| Operating Temperature | 0to 50°C | ||
| Working Pressure | Working pressure drop: <0.01Mpa | ||
| Maximum pressure resistance | 3Mpa/10Mpa | ||
| Electrical Connection | DB15 hole | ||
| Leakage rate | 1×10-9SCCSHe | ||
| Temperature coefficient | ±0.025%F.S/℃ | ||
| Base material | Stainless Steel | ||
| Seal material | FKM (fluororubber), neoprene, NBR | ||
| Fittings | Φ12, flange installation | ||
