Home > Products > Flow Measurement > Gas Mass Flow Meters & Controllers > FTWM-1600Ma Series Micro-Flow Gas Mass Flow Meter
New

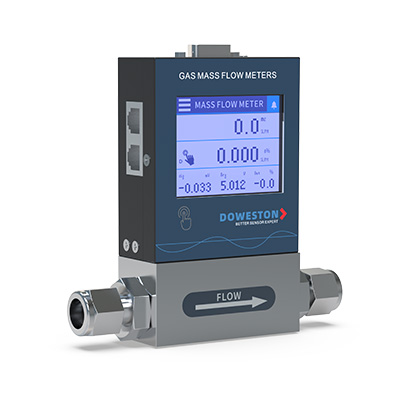

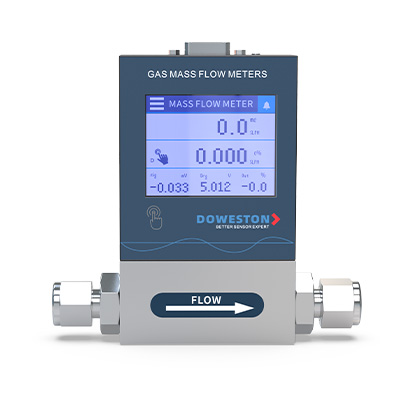

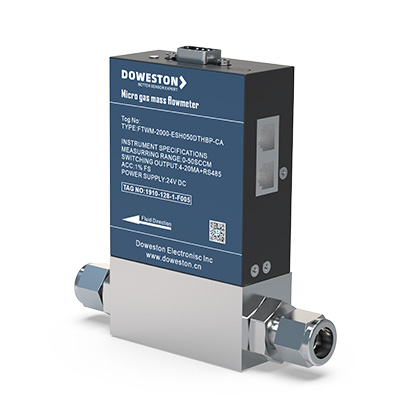

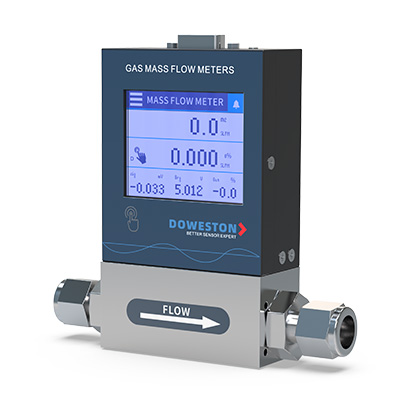

FTWM-1600Ma series micro gas flow meter
Designed for pipe diameters from 8mm to 12mm
designed for low-velocity flow metering in gas pipelines
LimitsmallRange30SLM, has excellent performance in low to medium flow rates and slow flow conditions, and is the first choice for flow measurement in laboratories, testing and other places.
● 30SLM~300SLMrange,
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● suitable for low- and high-pressure piping
● short warm-up time, minimal zero drift, high reliability
● Data import/export available
● Digital inputs/outputs allow flow control and display via secondary instruments or flow computers
| Sensor | |||
| Measuring range | 30SLM~300SLM | ||
| Turndown Ratio | The flow measurement range ratio is 100:1, and the controller range ratio is 50:1. | ||
| Accuracy | ±0.5%F.S | ||
| Linear | ±0.5%F.S | ||
| Repeatability | ±0.2%F.S | ||
| Response Time | flow meter: <0.1S, flow controller: <0.2S | ||
| Digital | RS232/485, MODBUS protocol | ||
| Analog | 0-5 V, 4-20 mA, 1-5 V | ||
| Power supply | ±15 V DC, 24 V DC | ||
| Operating Temperature | 0to 50°C | ||
| Working Pressure | Working pressure drop: <0.01Mpa | ||
| Maximum pressure resistance | 3Mpa/10Mpa | ||
| Electrical Connection | DB9 hole, RJ11, 5.5×2.1 power quick plug | ||
| Leakage rate | 1×10-9Pa m³/s | ||
| Temperature coefficient | ±0.025%F.S/℃ | ||
| Base material | Stainless Steel | ||
| Seal material | FKM (fluororubber), neoprene, NBR | ||
| Fittings | Φ8, Φ10, Φ12 | ||
