New

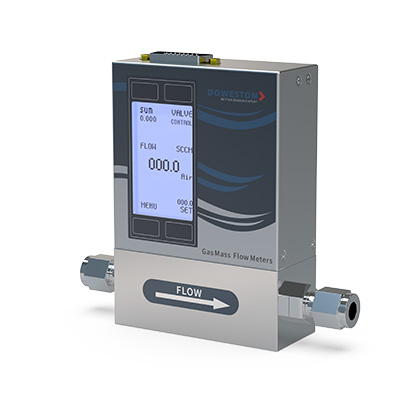

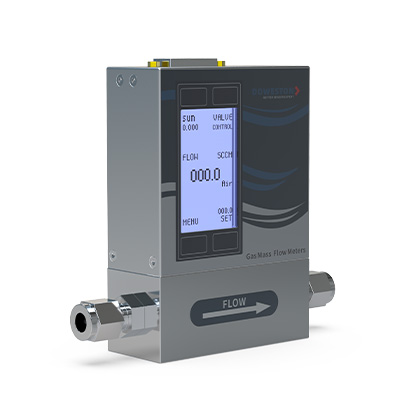

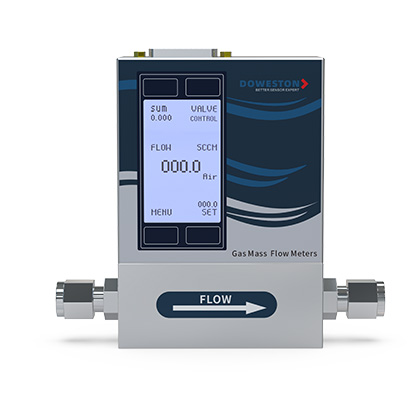

FTWM-1600Me series micro gas flow meter
designed for pipe diameters of 1-8 mm
designed for low-velocity flow metering in gas pipelines
LimitsmallRange2SCCM, has excellent performance in low flow rate and slow flow conditions, and is the first choice for flow measurement in laboratories, testing and other places.
● 2SCCM-30SLMrange,
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● suitable for low- and high-pressure piping
● short warm-up time, minimal zero drift, high reliability
● Digital inputs/outputs allow flow control and display via secondary instruments or flow computers
| Sensor | |||
| Measuring range | 0-10SLPM | ||
| Turndown Ratio | 100:1 | ||
| Accuracy | ±1.0%F.S | ||
| Linear | ±0.5%F.S | ||
| Repeatability | ±0.25%F.S | ||
| Response Time | <1S | ||
| Digital | RS232/485, MODBUS protocol | ||
| Analog | 0-5 V, 4-20 mA, 1-5 V | ||
| Power supply | 90-220V/9-24V | ||
| Operating Temperature | 0to 50°C | ||
| Working Pressure | Working pressure drop: <0.01Mpa | ||
| Maximum pressure resistance | <20Mpa | ||
| Electrical Connection | DB15 hole | ||
| Leakage rate | 1×10-9Pa m3/S | ||
| Temperature coefficient | ±0.025%F.S/℃ | ||
| Base material | Stainless Steel | ||
| Seal material | FKM (fluororubber), neoprene, NBR | ||
| Fittings | Φ3, Φ6,1/8"1/4" | ||
