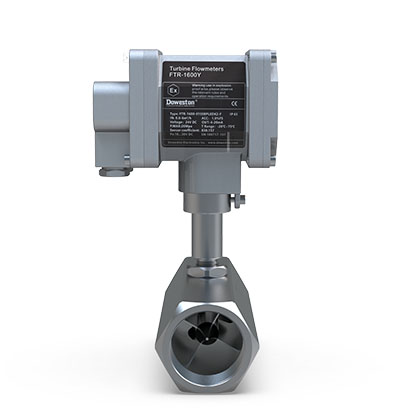

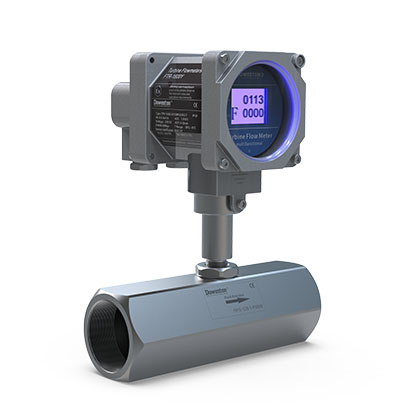

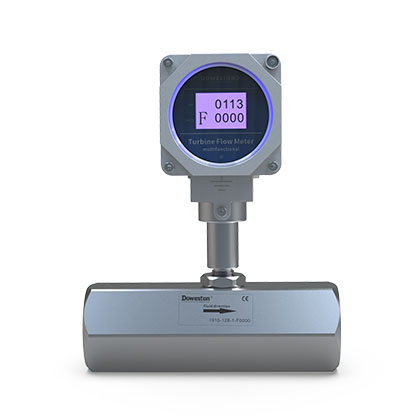

FTR-1410R Series Multifunction
Female-Threaded Turbine Flow Meter

Basic principle of FTR-1410R multifunctional internal thread turbine flow meter: fluid flows through the sensor housing. Since the blades of the impeller are at a certain angle to the flow direction, the impulse of the fluid causes the blades to have a rotational moment. After overcoming the friction moment and fluid resistance, the blades rotate. After the torque is balanced, the rotational speed is stable. Under certain conditions, the rotational speed is proportional to the flow rate. Since the blades are magnetically permeable It is in the magnetic field of the signal detector (composed of magnet steel and coils). The rotating blades cut the magnetic lines of force and periodically change the magnetic flux of the coil, thereby inducing an electrical pulse signal at both ends of the coil. This signal is amplified and shaped by the amplifier to form a continuous rectangular pulse wave with a certain amplitude, which can be remotely transmitted to the display instrument to display the instantaneous flow and cumulative amount of the fluid. Within a certain flow range, the pulse frequency f is proportional to the instantaneous flow rate Q of the fluid flowing through the sensor.

■ Low pressure loss; corrosion-resistant impeller

■ Uses advanced ultra-low-power MCU technology: powerful functionality, low power consumption, superior performance

■ Smart flow display with nonlinearity accuracy compensation. Correction formula accuracy better than ±0.02%

■ EEPROM retains totalized flow and meter coefficients on power loss for more than 10 years

■ High-performance MCU handles data acquisition, processing and display output; totalized and instantaneous flow shown simultaneously

■ Amplifier and sensor can be separated (up to 15 m)

■ Strong resistance to magnetic interference and vibration; reliable performance and long service life

■ Corrosion resistant, suitable for acid and alkaline solutions

■ Low lower flow velocity limit, wide measuring range

■ Available as an insertion type for large-diameter piping: low pressure loss, economical, removable without stopping flow, easy to install and maintain.

■ Wide rangeability: up to 1:20 for medium and large diameters, 1:10 for small diameters

 Application Areas:

■ FTR-1410R multifunctional internal thread turbine flow meterWidelyUsed to measure volumetric flow and totals of low-viscosity liquids in closed pipes. Widely used in petroleum, chemical, metallurgical and city gas distribution industries.
