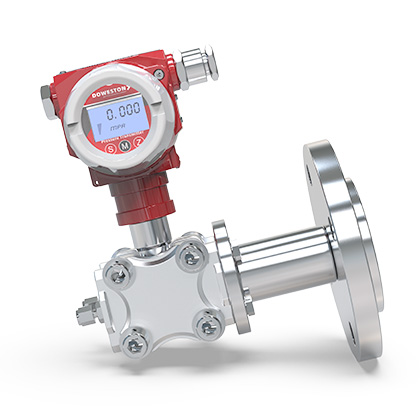

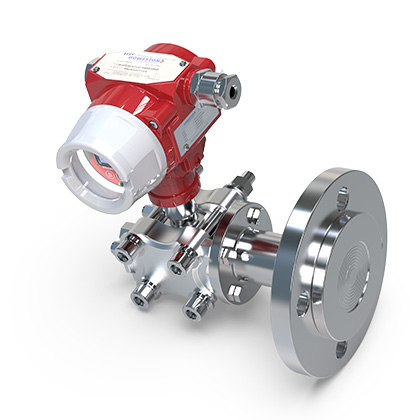

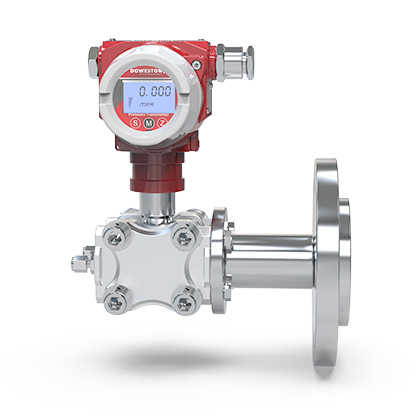

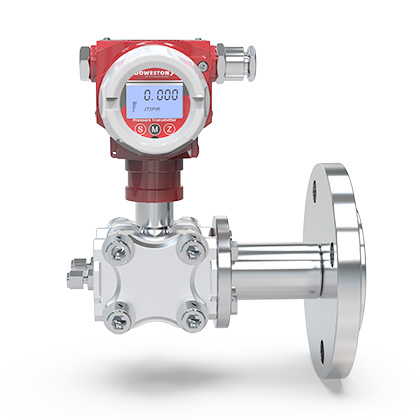

PD-750W single flange flush type differential pressure transmitter
Standardmechanical engineering, automation controlOf multiple parametersMeasurement
PD-750W single flange flush type differential pressure transmitterCombined with the new expanded monocrystalline silicon sensing element with HART protocol and temperature compensation as standard, converting pressure changes into linear standard current or voltage signals, withExtremelyHigh accuracy and repeatability, vibration resistance, wide measuring range, suitable for variousmechanical equipment and engineering projects Fluids, gasesMedium pressure, liquid level, density measurement, equipped withOn-site programming and display functions, Multiple output options, meeting different process requirements.
PD-750W single flange flush type differential pressure transmitterConverts the physical pressure of gases and liquids sensed by the measuring element into standard electrical signals (e.g. 4-20 mA, HART) for indication, recording and process control by secondary instruments. Widely used in industrial automation across hydropower, rail transit, intelligent buildings, production automation, aerospace, defense, petrochemicals, oil wells, power, shipbuilding, machine tools and pipelines.
■ Fully sealed, fully isolated monocrystalline silicon pressure sensor.
■ 24-bit CPU achieves high precision and fast response, the display module can be rotated 360°, and the button parameter operation function is friendly
■ The rugged metal electrical housing withstands demanding environments.
■ Fully isolated magnetic induction structure meets explosion-proof requirements and on-site operating specifications.
■ Strong and high-quality stainless steel process flange and ultra-thick reinforced structure are powerful guarantees for high static pressure and high overload.
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | 1-100pa, 6-41000kpa, -1-60MPa |
| Turndown Ratio | 1:100 |
| Measuring Accuracy | ±0.075%FS, ±0.1%FS, ±0.25%FS, ±0.5%FS |
| Stability | Up to ±0.10% of upper range limit (URL), 60 months |
| Pressure type | Gauge, absolute, vacuum, high static, micro pressure |
| Display | LED field display with three isolated keys |
| Menu adjustment | Adjustment via buttons or using Hart Communicator |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, RS-485, HART, etc. |
| Operating Temperature | -35-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 300%FS |
| Fault alarm | The self-diagnostic program detects a fault, and the analog output is higher than 20.8mA or lower than 3.8mA and alarms. The high/low flag is adjusted through HART communication. |
| Ambient Temperature | -40-80°C |
| Response Time | <1 ms (10...90% FS) |
| Refresh time | 0.25S |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | Stainless steel 316L (coated with PTFE, PP), Hastelloy C, Monel, Tantalum |
| Housing Material | Cast aluminum alloy, stainless steel |
| Protection Rating | Electrical section IP67 |
| Electrical Connection | Terminal wiring, M20*1.5 screw hole*2 |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Explosion-proof Class | Flameproof ExdIICT6, intrinsically safe ExiaIICT4 |
| Mounting Type | G1/2, G1/4, NPT1/2, NPT1/4, M20x1.5 internal/external threads, GB/T 9119-2010 flanges |
| Weight | approx. 3.0kg |
Application Areas:
■ PD-750W single flange differential pressure transmitterIt is widely used in water plants, refineries, sewage treatment plants, construction, light industry, machinery and other industrial fields to achieve the measurement of multiple parameters of liquids, gases and steam.
