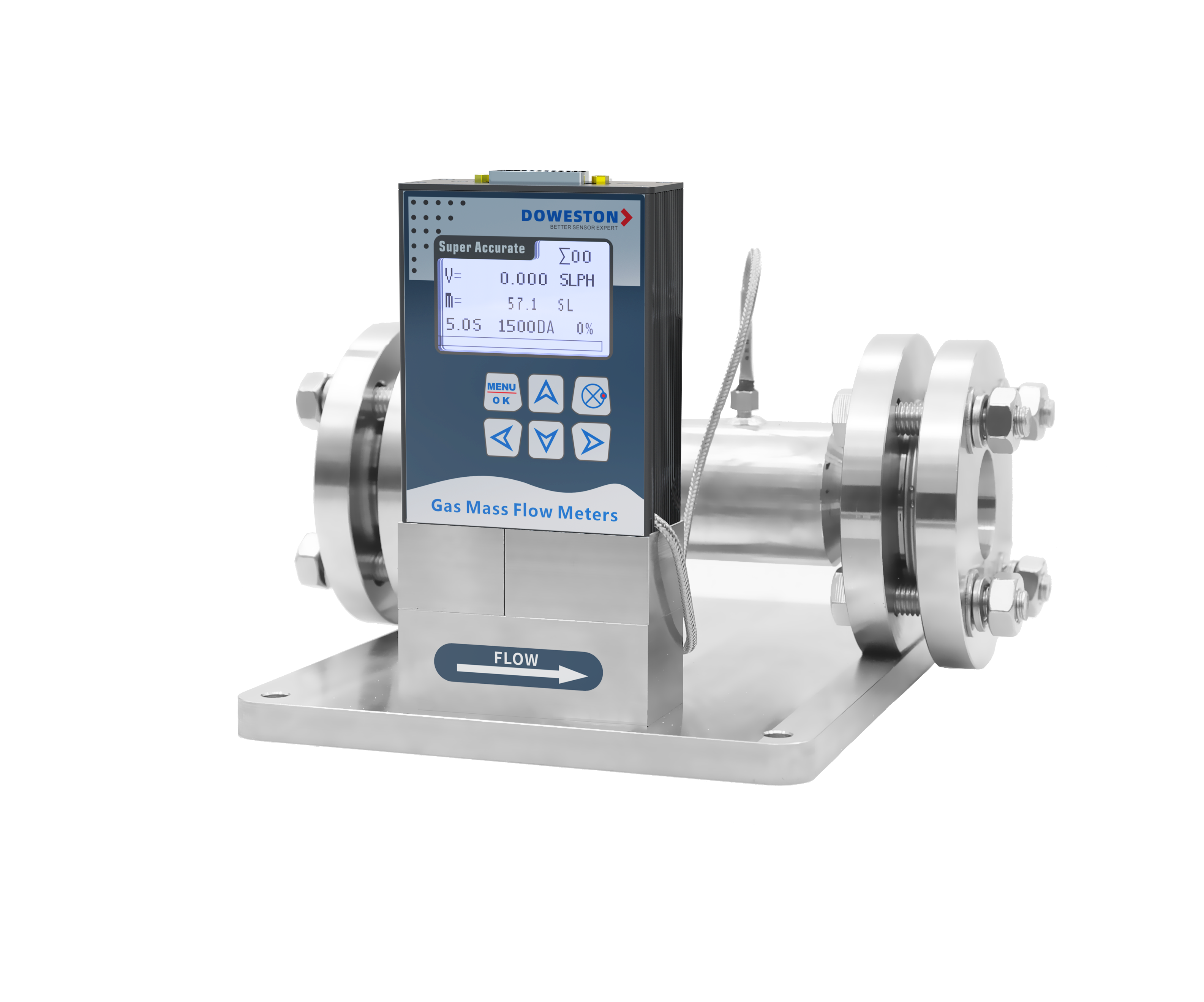

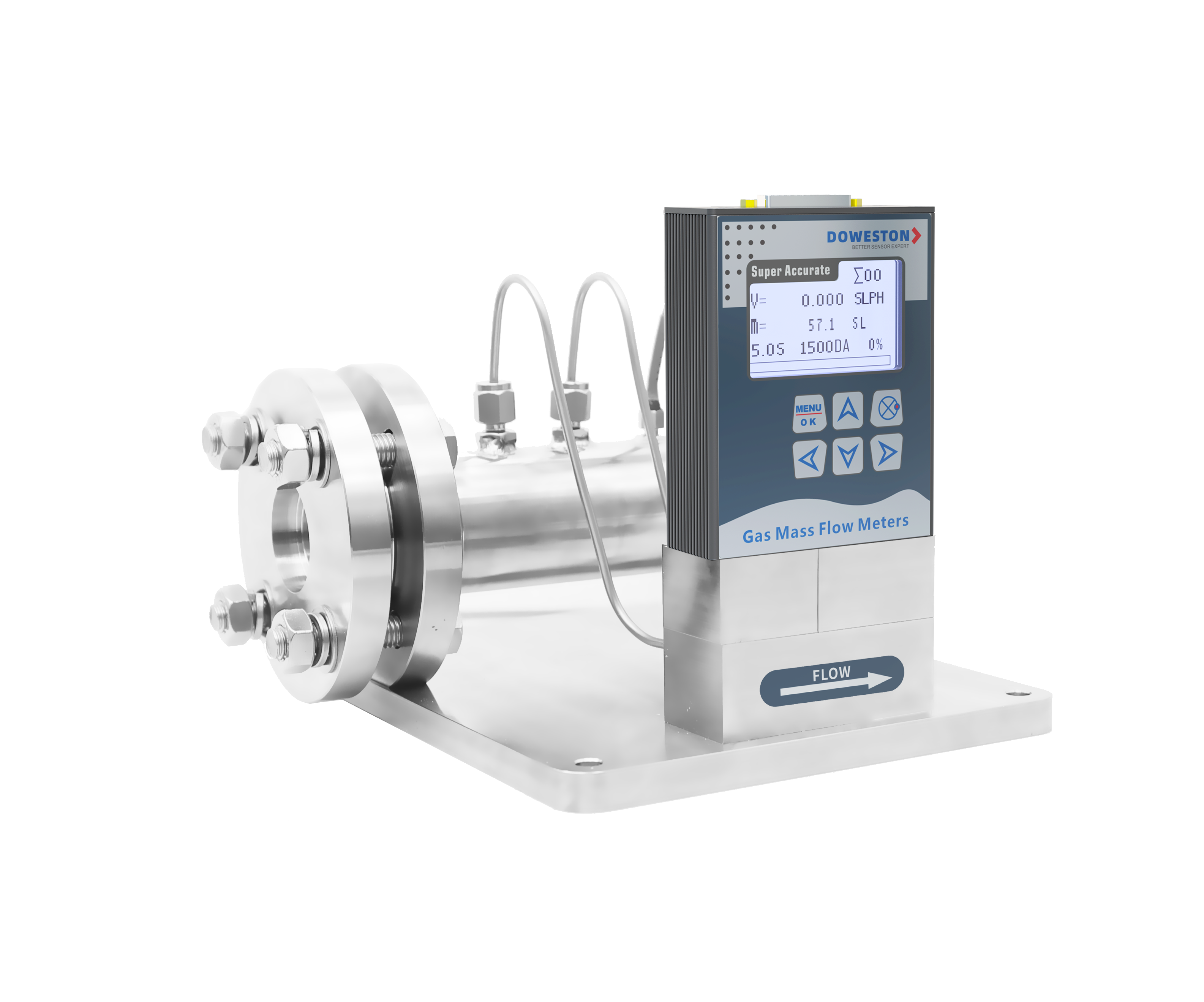

FTWM-2400Ht high temperature series micro gas flow meter
designed for pipe diameters of 1-8 mm
designed for low-velocity flow metering in gas pipelines
Limitsmallspan 10SCCM, has excellent performance in low flow rate and slow flow conditions, and is the first choice for flow measurement in laboratories, testing and other places.
● 10SCCM-3000SLMrange,
● Multiple connection options for easy installation and use
● Short response time
● outstanding performance in air compressor electronic metering
● adaptable mechanical connections allow easy installation in different application environments
● suitable for low- and high-pressure piping
● short warm-up time, minimal zero drift, high reliability
● Digital inputs/outputs allow flow control and display via secondary instruments or flow computers
● Gas/liquid/vapor compatible
| Sensor | |||
| Measuring range | gas: 100SCCM~3000SLM liquid: 10SCCM~20SLM steam: 10SCCM~500SLM | ||
| Leakage rate | 1x10-9Pa m3/S | ||
| Accuracy | ±1%FS | ||
| Repeatability | ±1%F.S | ||
| Response Time | 200ms (adjustable) | ||
| Digital | 4~20mA, RS485, PROFIBUS | ||
| Analog | 0-5Vdc, 4-20mA | ||
| Power supply | ±15VDC, 24VDC | ||
| Operating Temperature | 80~200°C (>200°C needs to be determined after communicating with the technology) | ||
| Maximum working pressure | 1MPa | ||
| Maximum measurable flow rate | 100%F.S(adjustable) | ||
| Electrical Connection | DB15 hole | ||
| Zero point drift & full scale drift | 0.02%F.S/℃/Atm | ||
| Base material | Stainless Steel | ||
| Seal material | FKM (fluororubber), neoprene, NBR | ||
| Fittings | NPT1/8′′~NPT3/4′′ | ||
