Home > Products > Product Under Maintenance > FTR-1300HP Series Digital High-Pressure Turbine Flow Meter
New

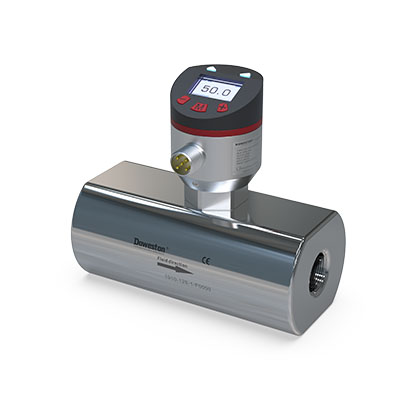

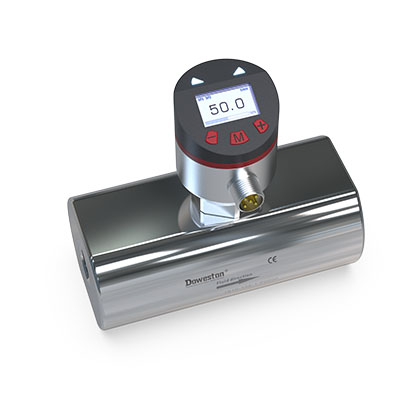

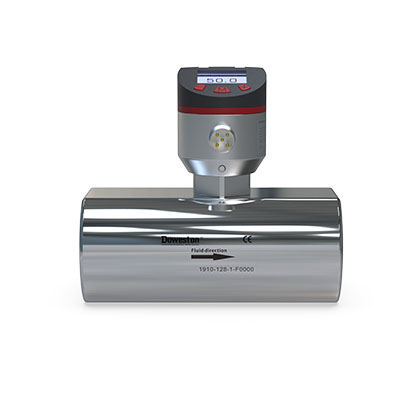

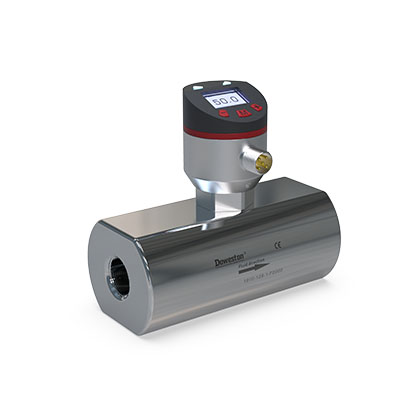

FTR-1300HP digital display high pressure turbine flow meter
Withstand pressure 4000bar, handle high pressure calmly
FTR-1300HP digital displayThe High Pressure Turbine Flow meter Series (HP stands for High Pressure Connection) is used to measure continuous and discontinuous flows at very high operating pressures. Mainly used for lubricating media and non-lubricating media. Especially suitable for low and medium viscosity liquids, such as water, emulsions, additives, inhibitors, etc. In the production of turbine flow meter, only high-quality steels that can withstand corrosive liquids are used. By using high-strength housing materials, the flow meter can be guaranteed to have extremely high pressure resistance. Combined with the use of tungsten carbide bearings, even in the harshest application conditions,FTR-1300HPIt also ensures optimal measurement accuracy and an extremely long service life.
Features:
• Height measurement accuracy up to ±0.1 1)
• High repeatability of ±0.05 %
• Operating pressure up to 4,000 bar [58,015 psi]
• Short response time (from 5 ms)
• Durable tungsten carbide bearings
• High quality materials
• No solder joints or solder joints
• Media temperature: -40 °C to +150 °C [-40 °F to +302 °F]
Application Areas:
• Process monitoring
• Consumption measurement
• Administration
• Mix
• water
• Emulsifiers
• Additives
• Inhibitors
| Measuring Range | 0.01-1000m³/h |
| Compatible Media | Clean liquids free of impurities (water, aqueous solutions, low-viscosity oils) |
| Nominal Diameter | DN6-DN300 |
| Measuring Accuracy | ≤±1.0% span |
| Repeatability Error | ±0.5% of measured value |
| Linearity | 1% |
| Display | Wide LCD display; parameters and variables configurable via front-panel keys |
| Instantaneous flow display, totalized flow display, percentage display, frequency display | |
| L/min, m³/h, Hz | |
| Resolution | 0.1 L/min, 0.005 m³/h |
| Operating Temperature | -35 to 60°C (standard version) |
| -20 to 180°C (high-temperature version) | |
| -40 to 80°C (explosion-proof version) | |
| Permissible viscosity | 0.8-30mm²/s |
| Working Pressure | 1.6 MPa, 2.5 MPa, 4.0 MPa; special ratings customizable |
| Housing Material | Stainless steel, anodized aluminum |
| Turbine material | 316L stainless steel, plastic |
| Case material | Aluminum alloy |
| Bearing | Tungsten carbide bearing; ruby bearing optional |
| Straight Pipe Run Requirement | Inlet: 10×DN |
| Outlet: 5×DN | |
| Signal Output | 4-20 mA, pulse, RS-485, Modbus protocol, HART output |
| Power Supply | 12~30Vdc |
| Electrical Connection | |
| Digital display version: aviation connector wiring | |
| Connection Type | Internal thread interface, flange connection |
| Protection Rating | IP65 (IP68 optional) |
| Ambient Temperature | -20℃...80℃ |
| Relative Humidity | 5%–95% |
| Explosion-proof Marking | Flameproof ExdIICT4 |
| Power consumption | <60mA |
