Home > Products > Pressure Measurement > Process Pressure Transmitters > PD-CV310 Series Digital Pressure Transmitter
New

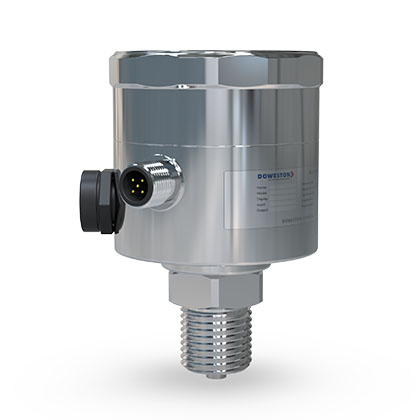

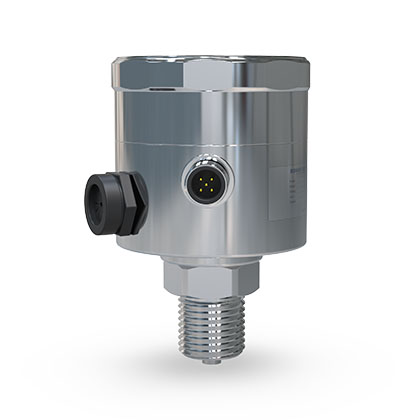

PD-CV310 digital pressure transmitter
Standardmechanical engineering, automation control pressureMeasurement
PD-CV310 digital pressure transmittercombined withadvancedPiezoresistive measuring element with HART protocol and temperature compensation as standard, converting pressure changes into linear standard current or voltage signals, withHigh accuracy with stable repeatability, vibration resistance, wide measuring range, suitable for variousmechanical equipment and engineering projects Fluids, gases pressure measurement, withOn-site programming and display functions, Multiple output options, meeting different process requirements.
PD-CV310 digital pressure transmitterConverts the physical pressure of gases and liquids sensed by the measuring element into standard electrical signals (e.g. 4-20 mA, HART) for indication, recording and process control by secondary instruments. Widely used in industrial automation across hydropower, rail transit, intelligent buildings, production automation, aerospace, defense, petrochemicals, oil wells, power, shipbuilding, machine tools and pipelines.
■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids
■ measuring range:0.25~600bar
■ Comprehensive accuracy: ≤0.15%
■ Diaphragm material: 316L stainless steel
■ Operating temperature: -40 to 160°C
■ Output: 4-20 mA, with HART® protocol
■ Process connection: threaded, flanged
■ Electrical connection: terminal wiring, aviation plug
■ Explosion protection: flameproof ExdIICT6, intrinsically safe ExiaIICT4
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1-70MPa |
| Turndown Ratio | 100:1 |
| Measuring Accuracy | ≤0.15% |
| Stability | Up to ±0.20% of upper range limit (URL) |
| Pressure type | Gauge pressure, absolute pressure |

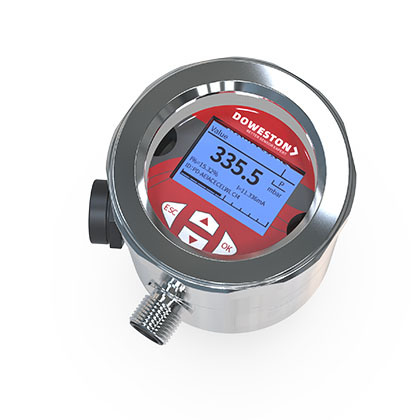

| Display | LED field display with three isolated keys |
| Input Voltage | 12-36V DC |
| Output | 4-20mA,With HART® protocol |
| Operating Temperature | -40-160°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <1 ms (10...90% FS) |
| Refresh time | 0.2S |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316 stainless steel |
| Housing Material | Stainless Steel |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal wiring, aviation plug |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Explosion-proof Class | Flameproof ExdIICT6, intrinsically safe ExiaIICT4 |
| Mounting Type | G1/2, G1/4, NPT1/2, NPT1/4, M20x1.5 internal/external threads, GB/T 9119-2010 flanges |
Application Areas:
■ PD-CV310 digital pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
