PD-CV311 Series
Digital Pressure Transmitter

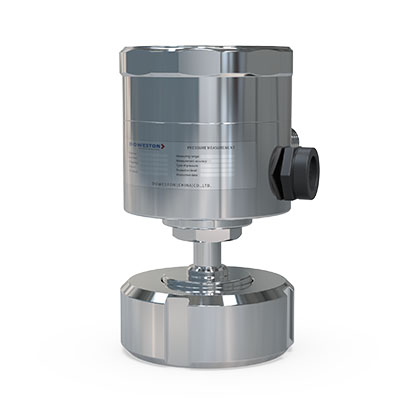

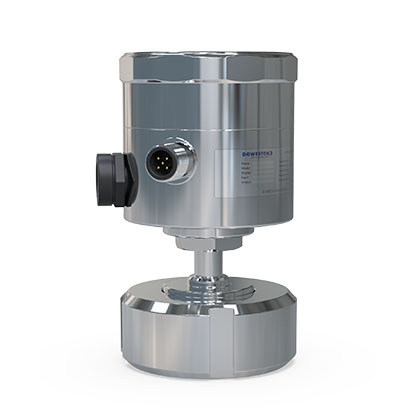

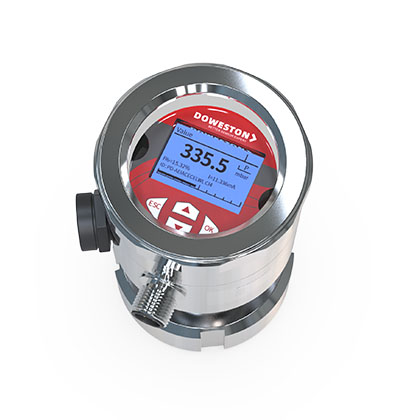

PD-CV311 digital pressure transmitterConverts the physical pressure of gases and liquids sensed by the measuring element into standard electrical signals (e.g. 4-20 mA, HART) for indication, recording and process control by secondary instruments. Widely used in industrial automation across hydropower, rail transit, intelligent buildings, production automation, aerospace, defense, petrochemicals, oil wells, power, shipbuilding, machine tools and pipelines.

■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids

■ measuring range:0.25~600bar

■ Comprehensive accuracy: ≤0.15%

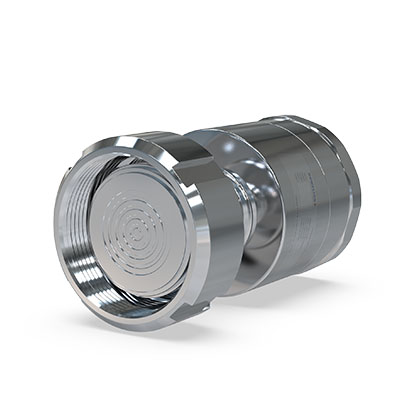

■ Diaphragm material: 316L stainless steel

■ Operating temperature: -40 to 160°C

■ Output: 4-20 mA, with HART® protocol

■ Process connection: threaded, flanged

■ Electrical connection: terminal wiring, aviation plug

■ Explosion protection: flameproof ExdIICT6, intrinsically safe ExiaIICT4
