Home > Products > Pressure Measurement > Process Pressure Transmitters > PD-310T Series Monocrystalline Silicon High-Temperature Pressure Transmitter
New

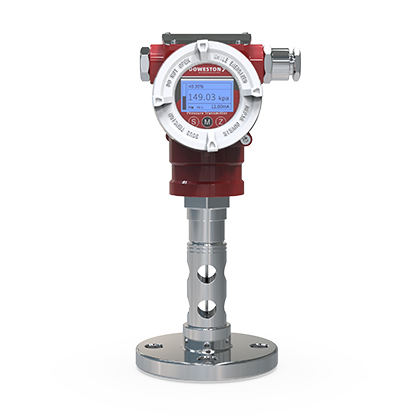

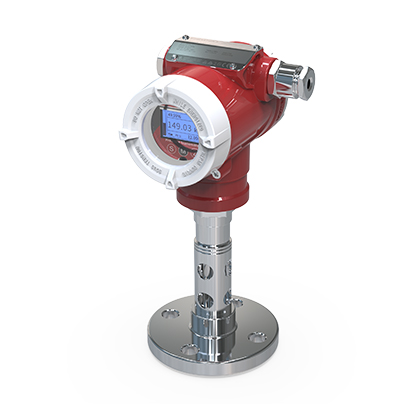

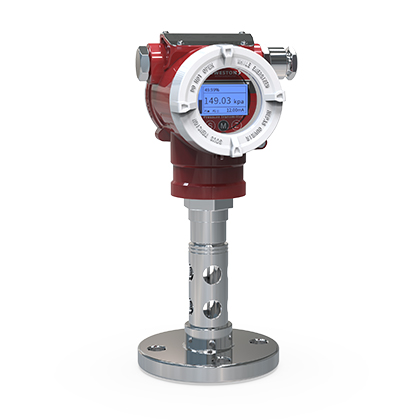

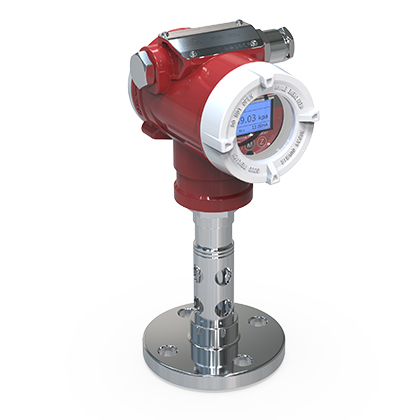

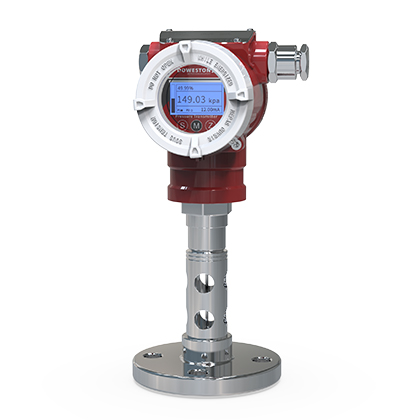

PD-310T monocrystalline silicon high-temperature type pressure transmitter
Standardmechanical engineering, automation control pressureMeasurement
PD-310T monocrystalline silicon high-temperature type pressure transmittercombined withadvancedExpanded monocrystalline silicon sensing element with HART protocol and temperature compensation as standard, converting pressure changes into linear standard current or voltage signals, withExtremelyHigh accuracy and repeatability, vibration resistance, wide measuring range, suitable for variousmechanical equipment and engineering projects Fluids, gases pressure measurement, withOn-site programming and display functions, Multiple output options, meeting different process requirements.
PD-310T monocrystalline silicon high-temperature type pressure transmitterConverts the physical pressure of gases and liquids sensed by the measuring element into standard electrical signals (e.g. 4-20 mA, HART) for indication, recording and process control by secondary instruments. Widely used in industrial automation across hydropower, rail transit, intelligent buildings, production automation, aerospace, defense, petrochemicals, oil wells, power, shipbuilding, machine tools and pipelines.
■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids
■ measuring range:-0.1-100MPa
■ Comprehensive accuracy: ±0.075%FS
■ Diaphragm material: stainless steel 316L (coated with PTFE, PP)
■ operating temperature:-35-125℃
■ Output: 4-20 mA, RS-485, Hartetc.
■ Process connection: threaded, flanged
■ Warranty: Up to 5 years limited warranty
■ Electrical connection: terminal wiring, M20×1.5 hole
■ Explosion protection: flameproof ExdIICT6, intrinsically safe ExiaIICT4
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1-100MPa |
| Turndown Ratio | 150:1 |
| Measuring Accuracy | ±0.075%FS, ±0.1%FS, ±0.25%FS |
| Stability | Up to ±0.20% of upper range limit (URL), stable for 10 years |
| Pressure type | Gauge pressure, absolute pressure, negative pressure |
| Display | LED field display with three isolated keys |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, RS-485, HART, etc. |
| Operating Temperature | -35-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <1 ms (10...90% FS) |
| Refresh time | 0.2S |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | Stainless steel 316L (coated with PTFE, PP) |
| Housing Material | Aluminum alloy |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal wiring, M20x1.5 hole |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Explosion-proof Class | Flameproof ExdIICT6, intrinsically safe ExiaIICT4 |
| Mounting Type | G1/2, G1/4, NPT1/2, NPT1/4, M20x1.5 internal/external threads, GB/T 9119-2010 flanges |
| Weight | approx. 1.4kg |
Application Areas:
■ PD-310T monocrystalline silicon transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
