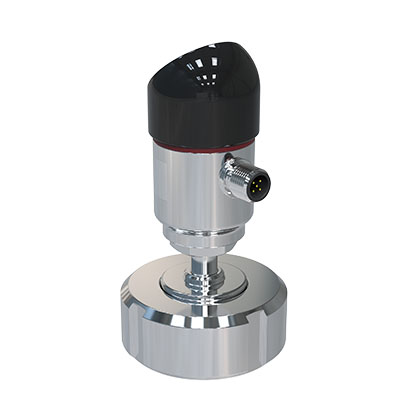

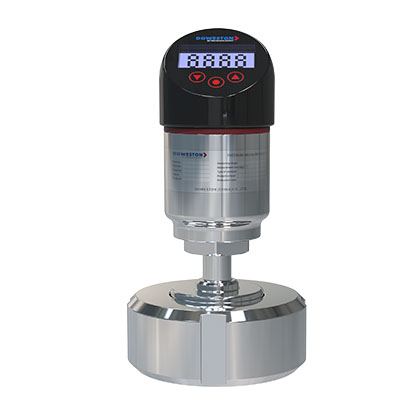

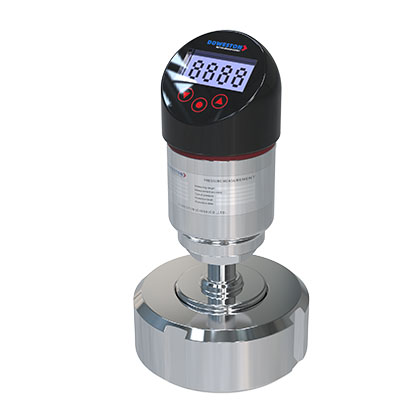

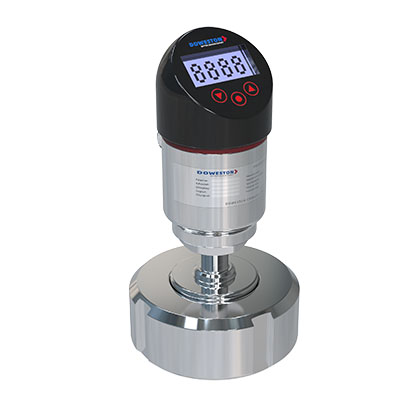

PD-CS2110 Series
Multi-Function Pressure Transmitter

PD-CS2110 multifunctional pressure transmitterConverts the physical pressure of gases and liquids sensed by the measuring element into standard electrical signals (e.g. 4-20 mA, HART) for indication, recording and process control by secondary instruments. Widely used in industrial automation across hydropower, rail transit, intelligent buildings, production automation, aerospace, defense, petrochemicals, oil wells, power, shipbuilding, machine tools and pipelines.

■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids

■ Measuring range: 0~100mbar to 0~400bar rel; 0~1bar to 0~6bar absolute pressure

■ Comprehensive accuracy: ≤0.2%

■ Diaphragm material: 316L stainless steel

■ Operating temperature: -40 to 160°C

■ Output: 4-20 mA, 2-wire technology

■ Process connection: thread

■ Electrical connection: aviation plug

■ Protection rating: IP65
