New

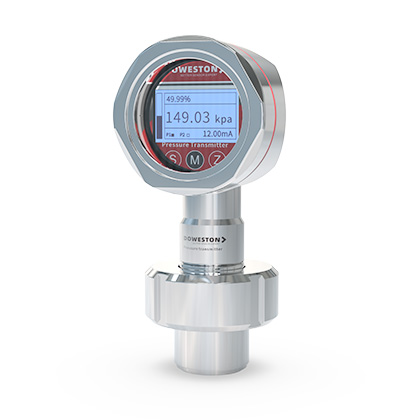

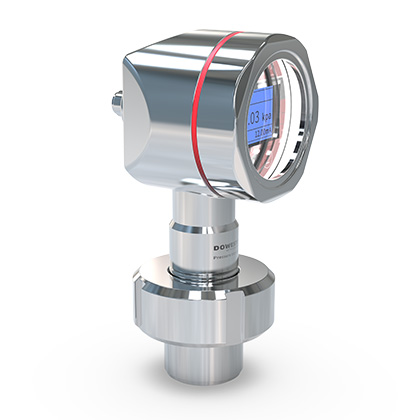

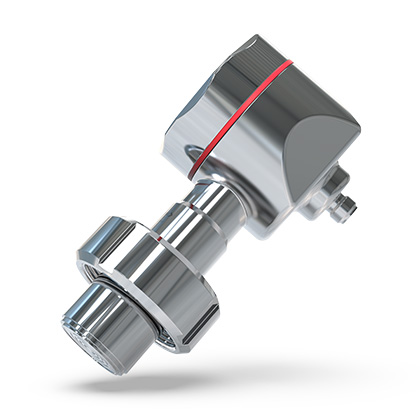

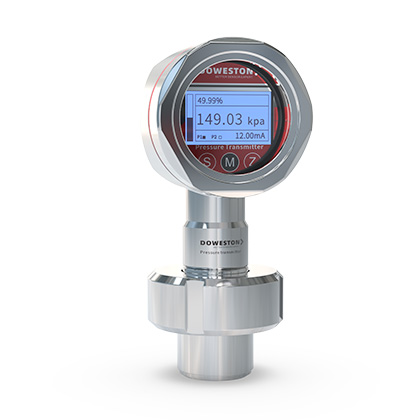

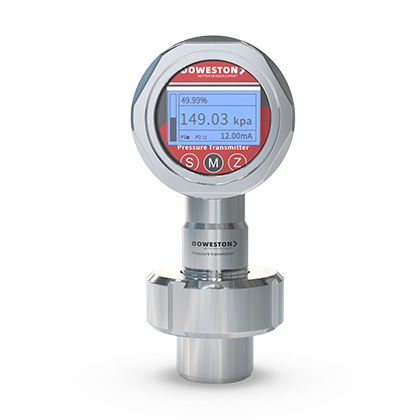

PD-310QB hygienic type pressure transmitter
CIP/SIP cleaning and disinfection in food, pharmaceutical and other industriesPressureMeasurement
PD-310QB sanitary pressure transmitter uses single crystal silicon sensor.The design is exquisite and compact, and the middle part of the welding diaphragm is made of high-quality stainless steel 316L with roughnessRa≤0.4μm, conforming to sterile standards, the filling liquid complies withFDA health standards, with various international standard process connections, specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization.With on-site display function,Diversified information output, including chuck, clamp, flange and other connection methods, Can meet the measurement needs of most hygiene level requirements.
PD-310QB hygienic type pressure transmitterIt can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment.It is a pressure transmitter widely used in the food and pharmaceutical industries.
■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids
■ measuring range:-0.1-4MPa
■ Comprehensive accuracy:±0.25%FS
■ Diaphragm material: 316L stainless steel
■ operating temperature:-35-120℃
■ Output: 4-20 mA, RS-485, Hartetc.
■ Process connections: chucks, clamps, flanges
■ Warranty: Up to 3 years limited warranty
■ Electrical connection: aviation plug (IP65), waterproof gland (IP68)
■ Seal: Silicone, fluorine rubber
| Compatible Media | Dry gases, gases, liquids that require hygienic requirements, |
| Measuring Range | -0.1-4MPa |
| Overall Accuracy | ±0.25%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-120°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <3-10ms (10...90%FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Surface roughness | Ra≤0.4μm |
| Housing Material | Stainless Steel |
| Protection Rating | Electrical section IP65 |
| Electrical Connection | Aviation connector (GAR).(IP65), waterproof gland (IP68) |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Silicone, fluorine rubber |
| Mounting Type | Chuck, clamp, flange |
| Weight | approx. 0.15kg |
Application Areas:
■ PD-310QB hygienic type pressure transmitterIt is widely used in industrial fields such as food, brewing, and pharmaceuticals to measure the pressure of liquids, gases, and steam.
