Home > Products > Pressure Measurement > Pressure Switch > PSC-120Q Series Sanitary Digital Pressure Controller
New

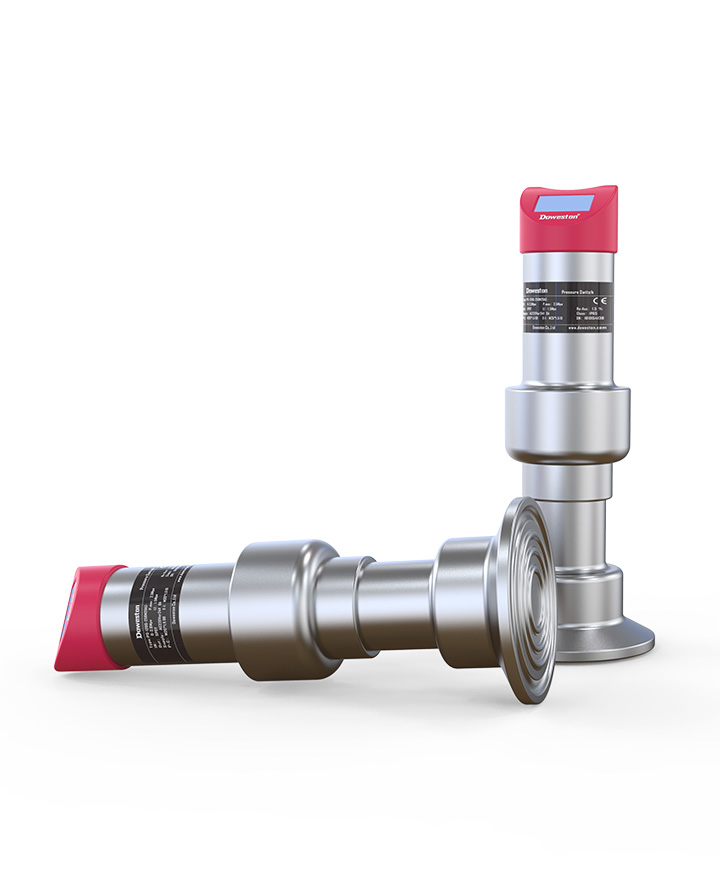

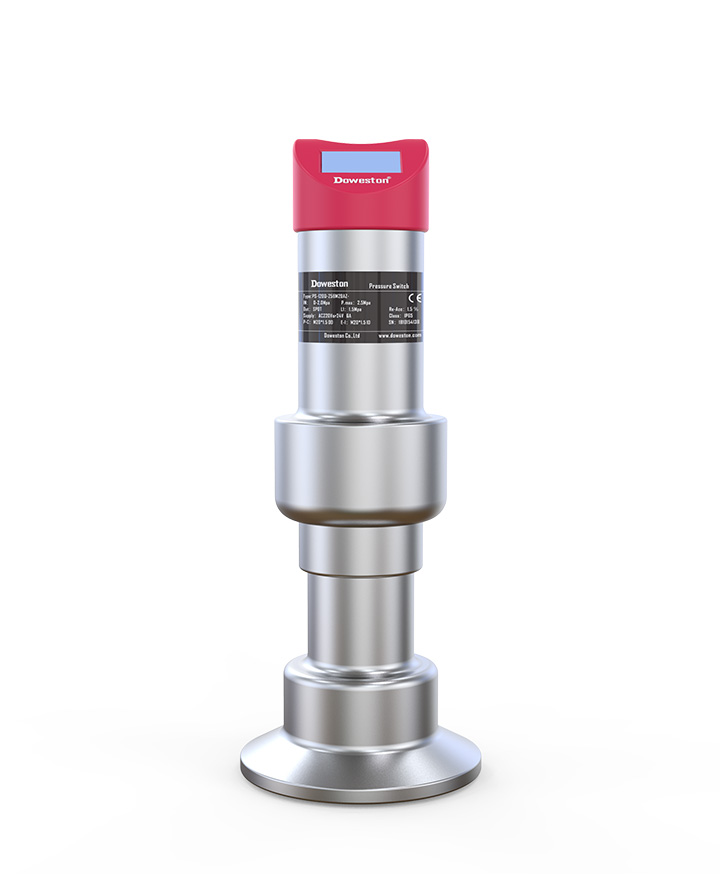

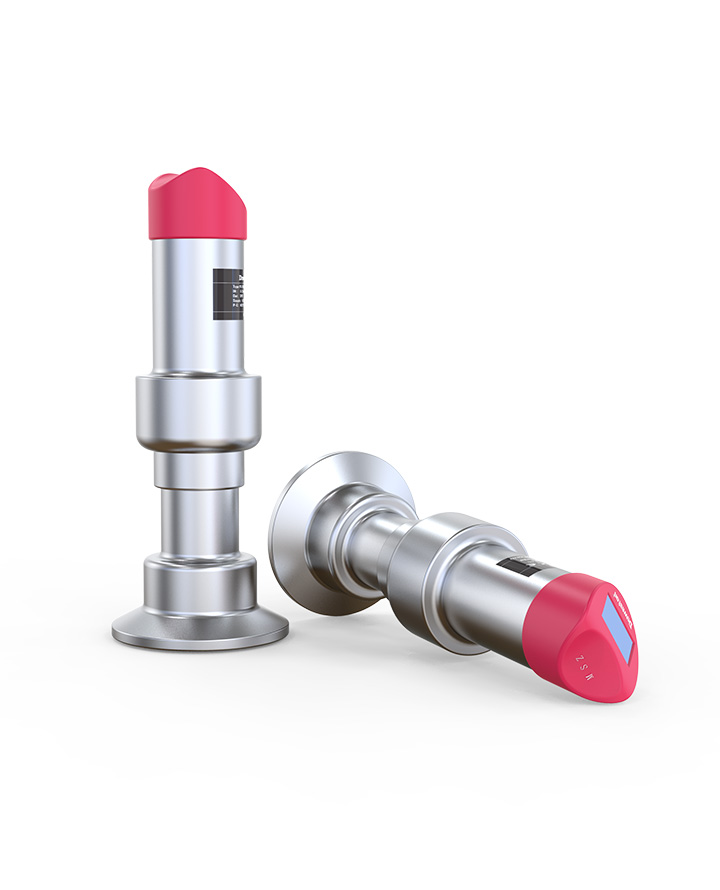

PSC-120Q hygienic type pressure controller
CIP/SIP cleaning and disinfection in food, pharmaceutical and other industriespressure control
PSC-120Q hygienic type pressure controllerThe design is exquisite and compact, and the middle part of the welding diaphragm is made of high-quality stainless steel 316L with roughnessRa≤0.4μm, conforming to sterile standards, the filling liquid complies withFDA health standards, with various international standard process connections, specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization.Diversified information output, including chuck, clamp, thread and other connection methods, Can meet the measurement needs of most hygiene level requirements.
■ The meter head can be freely rotated 300° for convenient observation
■ 4-digit high-brightness LED display
■ The action point does not drift and the measurement range is wide
■ Compliant with IO-Link communication standard
■ Good market feedback, high sales, and good stability
■ Compact structure and small size
■ Chuck clamp connection, easy to disassemble and clean
■ It can be manufactured according to the pressure value selected by the user within the pressure range.
Application Areas:
■ PSC-120Q hygienic type pressure controllerIt is widely used in water plants, equipment factories, food and beverage factories, pharmaceutical engineering, machinery and equipment and other industrial fields to control liquid and gas pressure.
| Compatible Media | Dry gases, gases, liquids requiring hygienic requirements |
| Measuring Range | 0-40MPa |
| Accuracy | ±0.25%FS, ±0.5%FS, ±0.75%FS Adjustment accuracy ≤±5FS |
| Repeatability | ±0.5% of measured value |
| Switch signal | 1 or 2 optional |
| PNP, NPN normally open or normally closed can be set | |
| Rated current ≤300mA | |
| Response time ≤30ms | |
| Analog output | 4-20mA analog |
| accuracy 0.5%FS | |
| Load ≤500Ω | |
| Input Voltage | 15-36V DC |
| Display | 4-digit LED highlight display |
| Setting method | Button settings |
| Operating Temperature | -20-85℃ |
| Ambient temperature and humidity | -20-80℃ 45-75%RH |
| Vibration resistance | 10g (IEC 60068-2-27, in resonance state) |
| Impact resistance | 50g (IEC 60068-2-6, mechanical shock) |
| Material | Process connection: stainless steel 316L |
| enclosure Material: stainless steel 304: | |
| Button: TPE-E | |
| Display window: PC (polycarbonate) | |
| Display body: PC+ABS-Blend | |
| Electrical Protection | Reverse polarity, short-circuit and overload protection |
| Protection Rating | Electrical section IP67 |
| Electrical Connection | M12*1.4 4/5 core aviation plug |
| Service Life | 100 million switching cycles |
| Mounting Type | Chuck, clamp |
| Weight | approx. 0.55kg |
