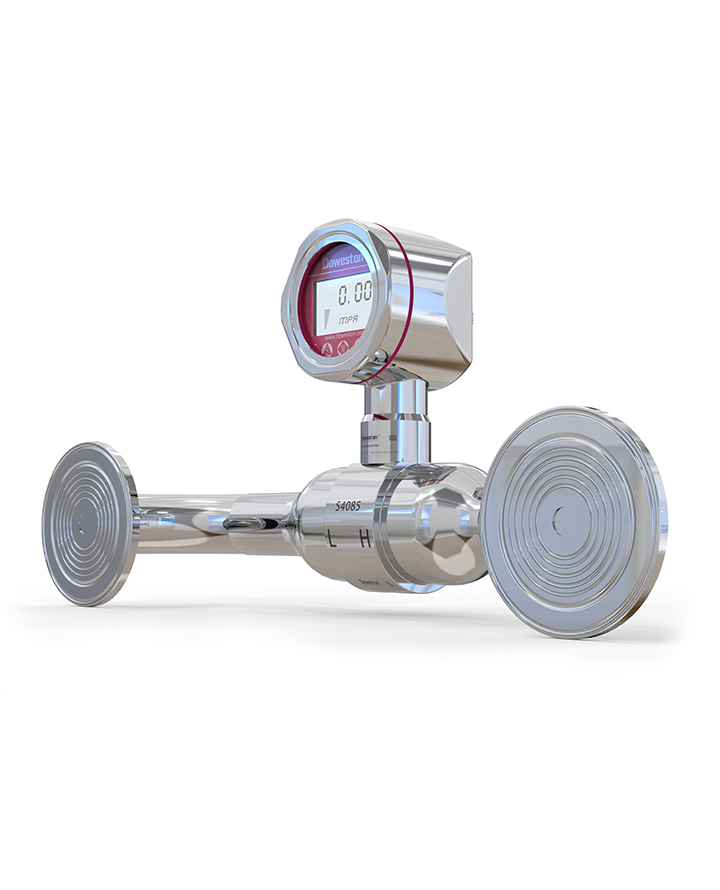

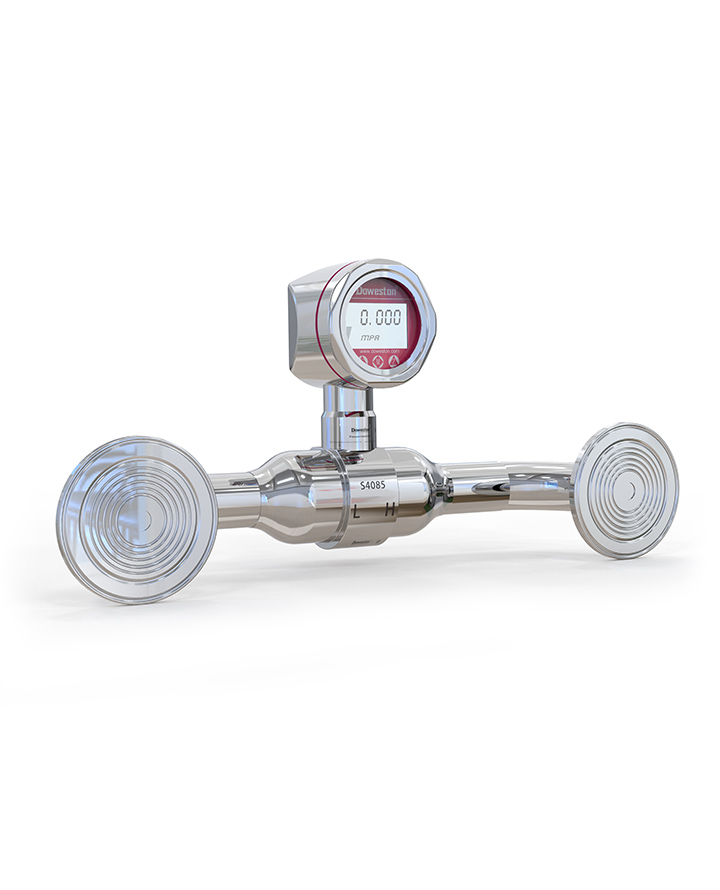

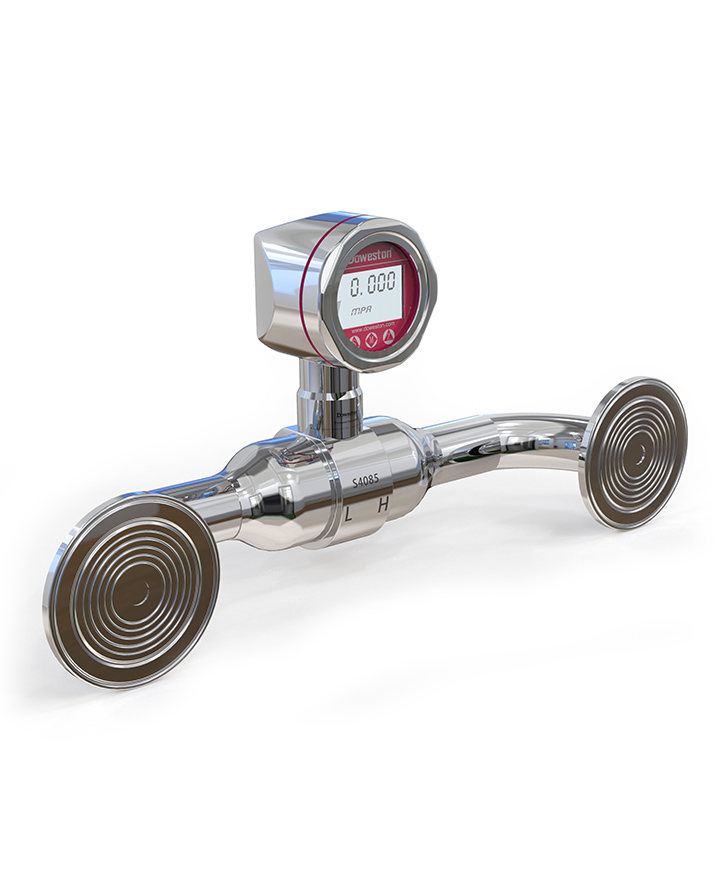

PD-750Q Series
Sanitary Differential Pressure Transmitter

PD-750QC sanitary differential pressure transmitter is a sanitary pressure transmitter carefully built using monocrystalline silicon pressure sensor technology and packaging technology. Designed to meet the design concept of harsh usage scenarios, the PD750Q monocrystalline silicon sanitary pressure transmitter adopts a fully isolated sealing structure to eliminate the influence of humidity and is suitable for harsh wet cleaning scenarios; the double diaphragm overload protection structure can withstand a pressure of 42MPa, suitable for harsh usage pressure overload situations; the transient voltage resistance meets the fourth-level standard (differential mode voltage: 2000V, common mode voltage: 4000V), suitable for harsh surge voltage situations; 20 linear points and 160 pressure calibration points in seven-segment temperature zones, suitable for harsh temperature change situations.

■ Monocrystalline silicon pressure sensor and double diaphragm overload protection structure can easily cope with high overload tests.

■ The signal transmission module uses dedicated integrated circuits and surface packaging technology. It has friendly key parameter operation functions and can quickly display measurement data.

■ ISO228, DIN3256 and other complete global standards or industry standard process connections, exquisite stainless steel welding technology and surface treatment technology, in line with hygienic standards.

■ The sturdy one-piece stainless steel housing ensures long service life.

■ The surface roughness of stainless steel is Ra≤0.4μm, which complies with sterility standards.

■ Warranty: Effective warranty for up to 3 years
