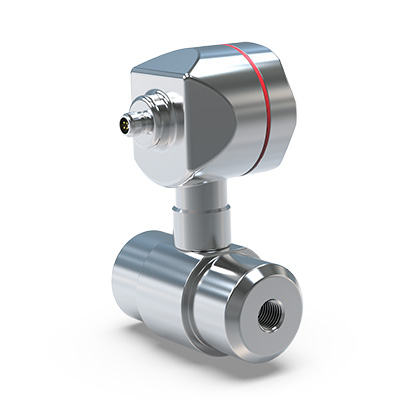

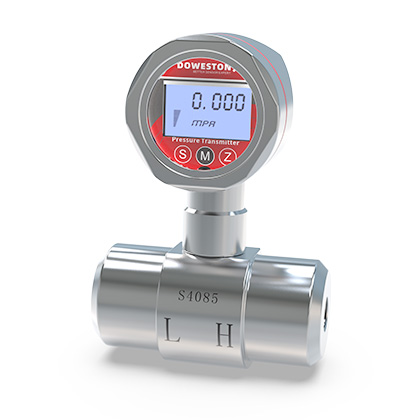

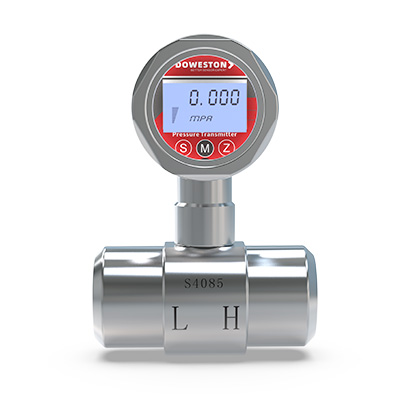

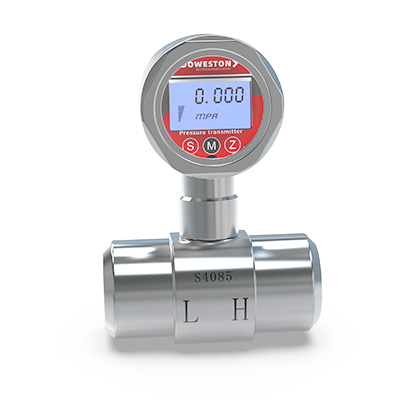

PD-750QC Series
Sanitary Differential Pressure Transmitter

PD-750QC sanitary differential pressure transmitter adopts monocrystalline silicon pressure sensor technology and packaging process, and is a strong and sanitary pressure transmitter carefully built. Designed to meet the design concept of harsh usage scenarios, the PD750Q monocrystalline silicon sanitary pressure transmitter adopts a fully isolated sealing structure to eliminate the influence of humidity and is suitable for harsh wet cleaning scenarios; the double diaphragm overload protection structure can withstand a pressure of 42MPa, suitable for harsh usage pressure overload situations; the transient voltage resistance meets the fourth-level standard (differential mode voltage: 2000V, common mode voltage: 4000V), suitable for harsh surge voltage situations; 20 linear points and 160 pressure calibration points in seven-segment temperature zones, suitable for harsh temperature change situations.

■ Monocrystalline silicon pressure sensor and double diaphragm overload protection structure can easily cope with high overload tests.

■ The signal transmission module uses dedicated integrated circuits and surface packaging technology. It has friendly key parameter operation functions and can quickly display measurement data.

■ ISO228, DIN3256 and other complete global standards or industry standard process connections, exquisite stainless steel welding technology and surface treatment technology, in line with hygienic standards.

■ The sturdy one-piece stainless steel housing ensures long service life.

■ The surface roughness of stainless steel is Ra≤0.4μm, which complies with sterility standards.

■ Warranty: Effective warranty for up to 3 years
