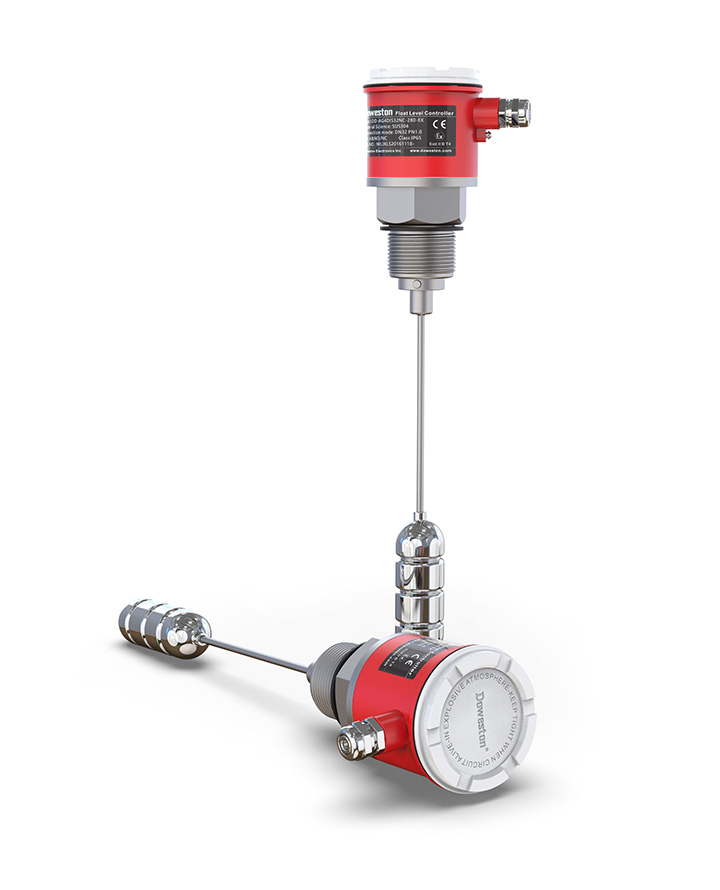

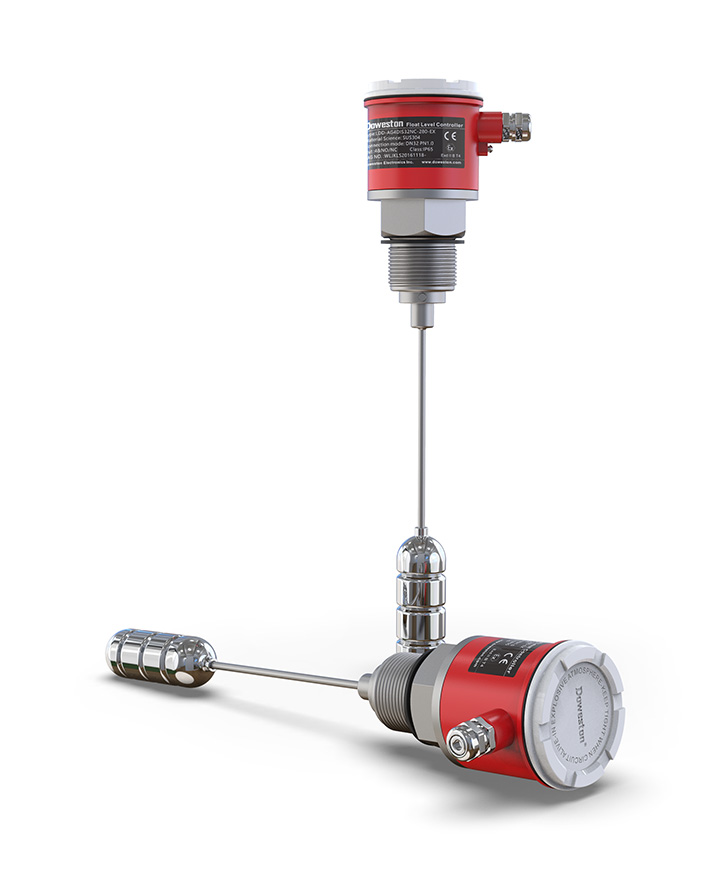

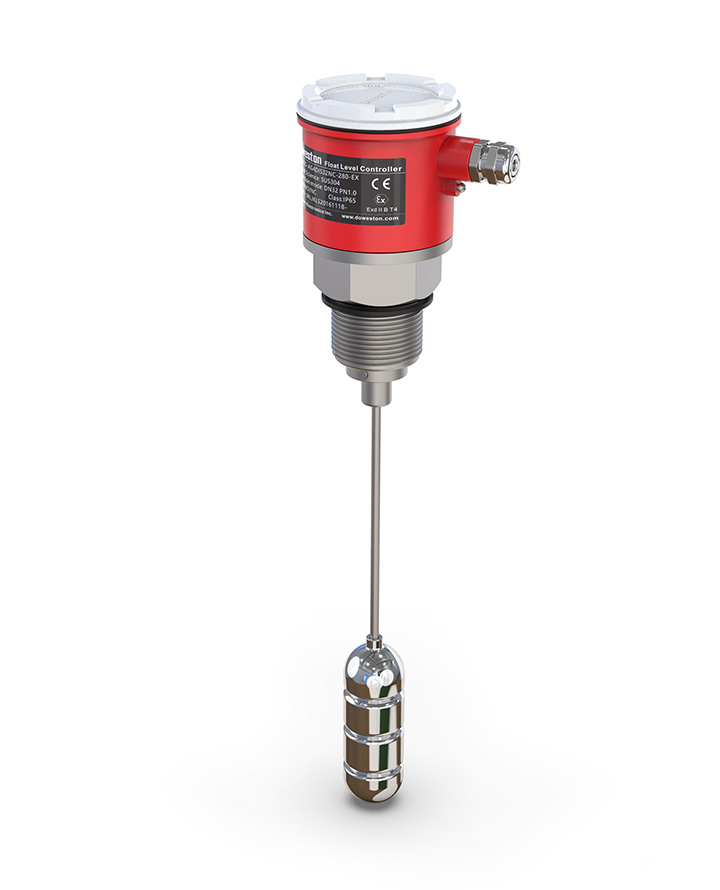

LDD Series
Explosion-Proof Float Level Switch

LDDThe explosion-proof float level switch uses the principle of liquid buoyancy. When the float moves up and down due to buoyancy, the magnet on the float connecting rod drives the reed switch in the junction box to perform NC and NO actions. The same principle is applied to the micro switch device. The magnet in front of the micro switch and the magnet at the arm end make mutually repelling movements and push the micro switch to achieve NC/NO action.

■ Z large pressure: 3-30bar optional

■ process medium temperature: -10-100℃   (-40-350℃ customizable )

■ suitable for specific gravity: ≥0.55g/cm³  (≥0.25g/cm³ optional )

■ Input: SPDT (anti-corrosion type only SP/ST)

■ Contact type: Reed switch/micro switch optional

■ Contact capacity: Reed switch 1A, 60W, 220V/AC/200V/DC

                   Micro switch 250AC, 5A

■ Liquid contact material: SUS304/SUS316/PTFE

■ Protection rating: IP65,

■ Wiring method: aluminum alloy junction box

■ Sealed:  Fluororubber (FKM)

■ Weight:   0.42kg
