Home > Products > Level Measurement > Float Level Meters & Switches > LFH Series Side-Mount Large Float Level Switch
New

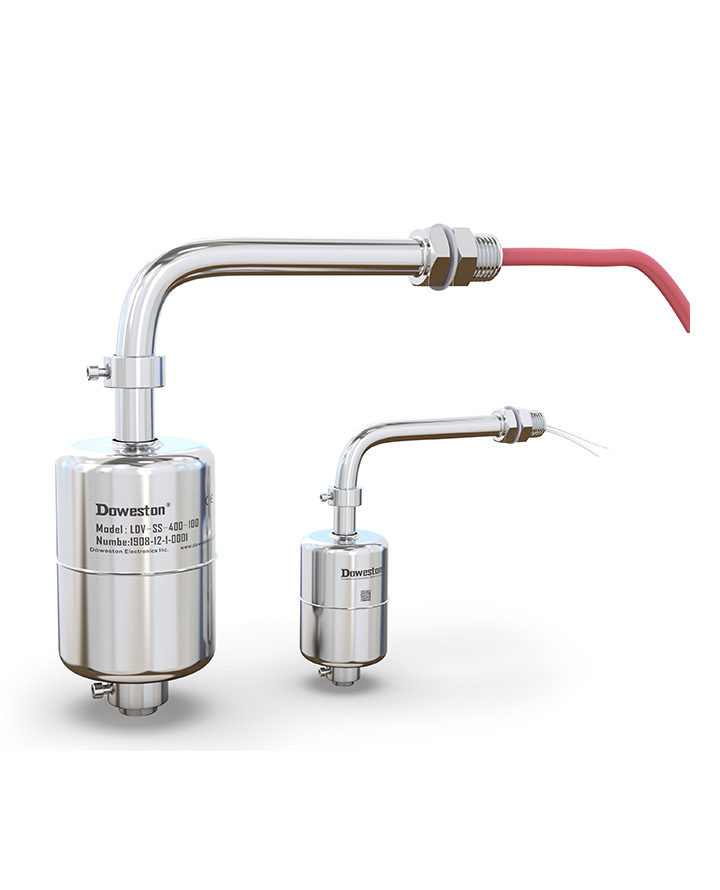

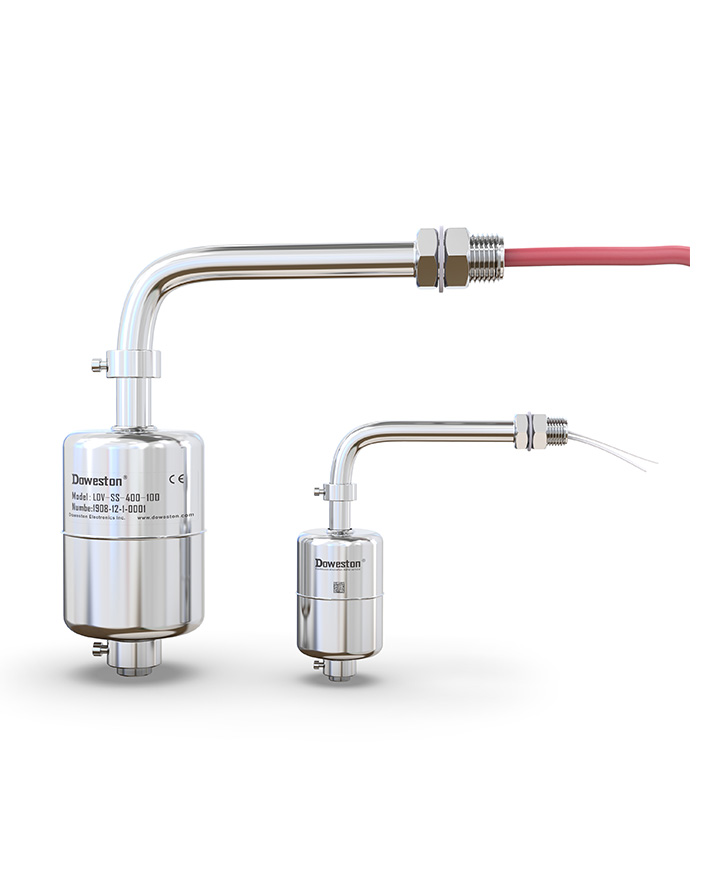

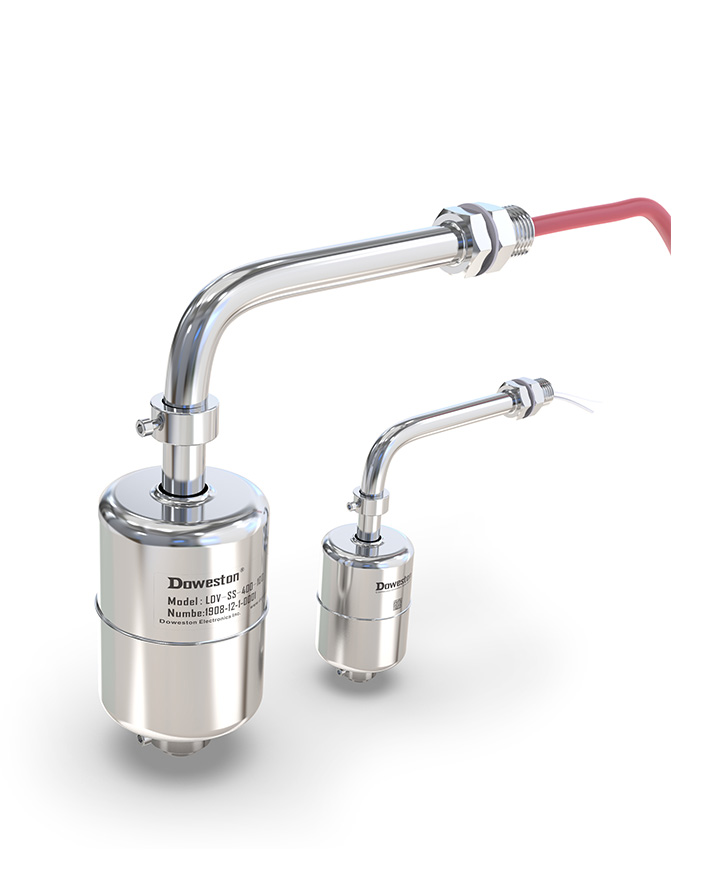

LFH side mounted large float level switch
ConfigurationLarger float, stronger buoyancy, liquid levelThe impact of fluctuations is small,Reliable liquid level alarm switch
The LFH side-mounted large float level switch uses the float to move up and down with the liquid, thereby triggering or releasing the magnetic reed switch in the tube and sending out a switch signal.featuresCompact structure, easy to install, Corrosion-resistant, large float (Optionalφ150mm)Little impact from liquid fluctuations. SuitableLiquid level alarms for various tanks and boxes, optionalMetal and plastic materials, Normally open and normally closed can be set.
The LFH side-mounted large float level switch has a reed switch in a sealed non-magnetic stainless steel. The float is equipped with a magnet. The liquid level drives the float to move up and down, thereby triggering or releasing the magnetic reed switch and sending out a switch signal to achieve the purpose of alarming.
Application Areas:
■ LCH side-mounted small float level switch is suitable for full and empty liquid level alarms in most tanks and boxes.
Suitable for specific gravity | ≥0.65 |
Switching current | 0.5A |
Energizing current | 1A |
Contact type | Reed switch |
Contact capacity | 250V AC,0.5A |
Output | Normally open, normally closed, |
Operating Temperature | -10-150℃ |
Working Pressure | ≤5bar |
Material | Stainless steel, rubber, PP, PVDF, PTFE, PVC |
Mounting Type | Threaded, Flanged |
Protection Rating | IP65 |
Electrical Connection | Directly attached cable (300mm), aviation plug, mini Horsman connector |
