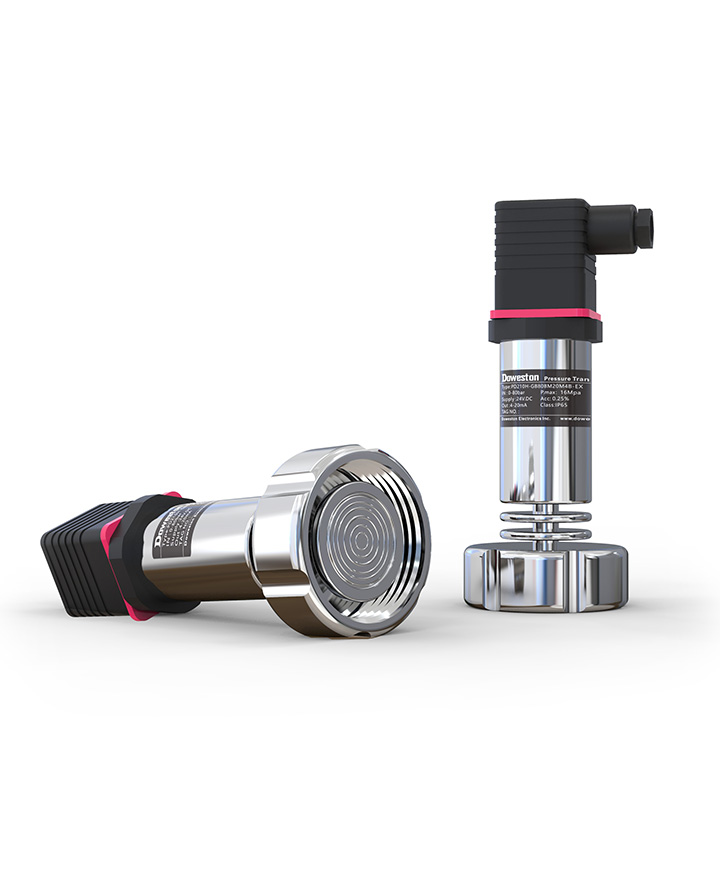

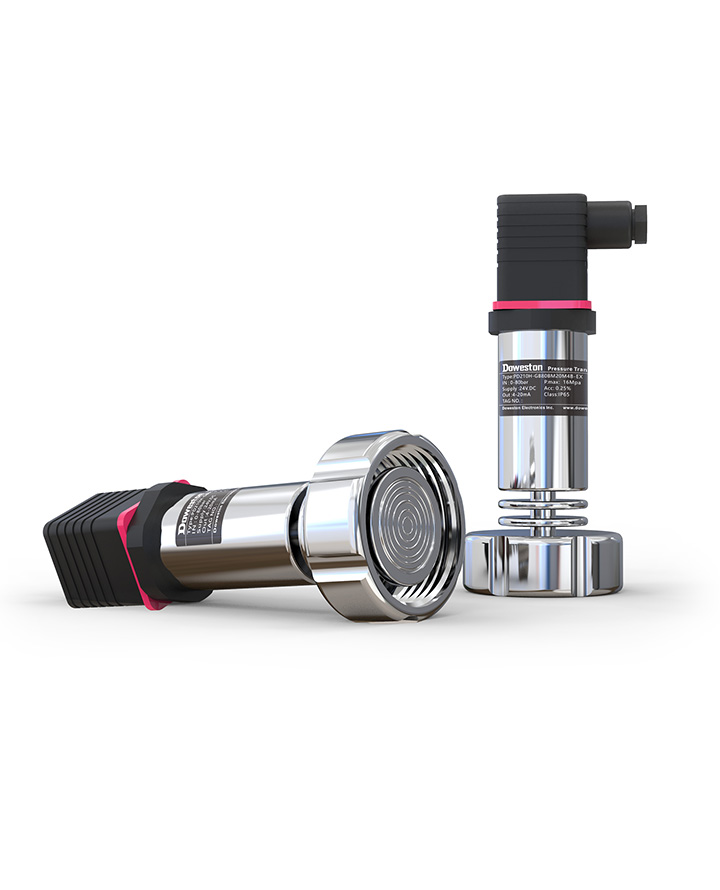

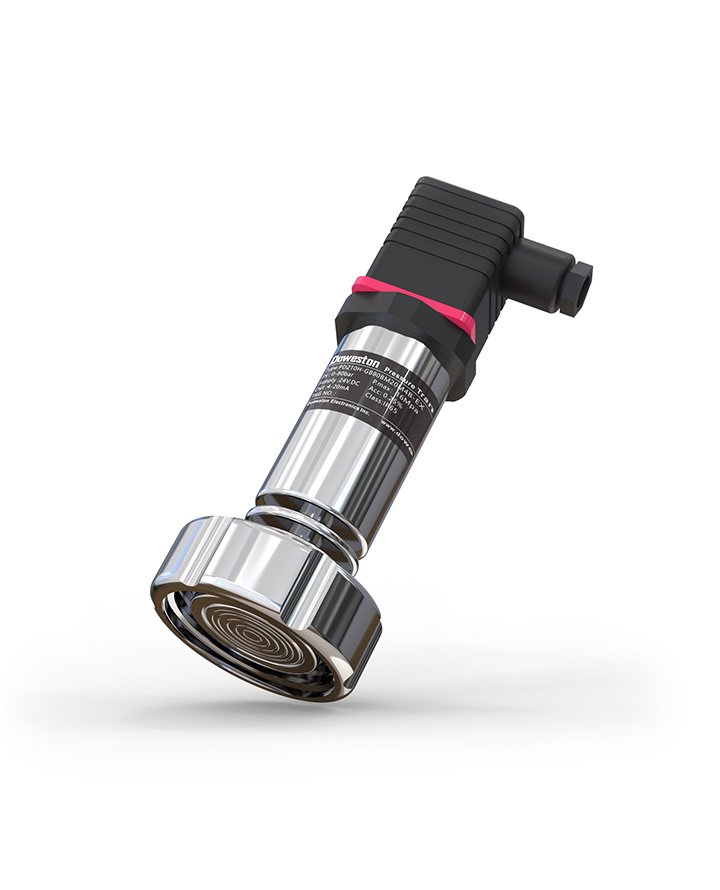

LPL-210S Series
Compact Hydrostatic Level Transmitter

The LPL-210S compact hydrostatic liquid level gauge is based on the principle that the measured static pressure of a liquid is proportional to the height of the liquid. It uses advanced isolated diffused silicon sensitive elements or ceramic capacitive pressure sensitive sensors to convert the static pressure into an electrical signal. After temperature compensation and linear correction, it is converted into a standard electrical signal (generally 4~20mA/1~5VDC). It is a liquid level meter widely used in mechanical engineering and automated control.

■ measuring range:0-10m H2O

■ Comprehensive accuracy: ±0.25%FS

■ Operating temperature: -40 to 125°C

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.

■ Process connection: M20*1.5, G1/4, G1/2, 1/4NPT

■ Protection level: electrical part IP65

■ Seal: fluorine rubber (FKM)

■ Service life:>1*10^8 pressure cycle
