Home > Products > Flow Measurement > Electromagnetic Flow Meter > FTE-1780A Series Economy Electromagnetic Water Meter
New

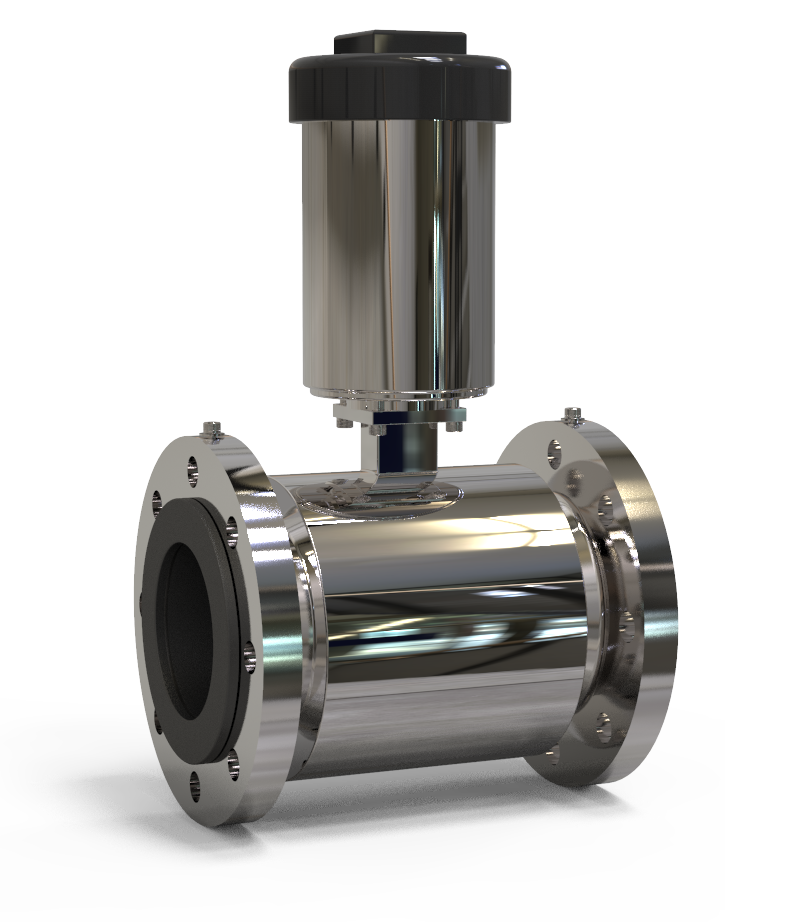

FTE-1780ASeriesEconomicalElectromagnetic flow meter
Start your measurements without tedious wiring
Exceed5 years Battery life
IP68 protection level, suitable for installation in any outdoor piping system. The flow meter records instantaneous volume, cumulative volume, battery power and other information. Install immediately and measure immediately!
● FTE-1780A electromagnetic water meter is a direct-reading electromagnetic water meter. It records instantaneous flow and accumulated flow on site. It is powered by batteries and does not require external power. It uses a high-definition LCD screen, making metering intuitive, convenient and maintenance-free.
● The meter is easy to install - the meter can be buried underground or installed in a well.
● The IP 68 (NEMA 6P) design is independent of the installation position of the instrument in the pipeline and does not require a filter.
● Low pressure losses - The straight measuring tube ensures low pressure losses, even at high flow rates. Prevent excessive pressure at the pump station, causing pipe rupture and leakage.
● Zero Maintenance - Designed with no moving parts and a battery life of up to 6 years.
● Bidirectional Measurement - Bidirectional flow measurement using only one meter.
● Smart Meter - Leak detection, data logger functionality and error self-diagnosis using just one meter.
Applications:
● Secondary water supply pipe network,
● Large water users,
● Zone metering,
● Pipe network leakage monitoring
● Monitoring and measuring of water quantity
| Water meter sampling period | Service life (months) | Service life (years) |
| 1 second | 35 | 2.9 |
| 2 seconds | 50 | 4.11 |
| 3 seconds | 57 | 4.77 |
| 4 seconds | 62 | 5.19 |
| 5 seconds | 66 | 5.5 |
| 6 seconds | 69 | 5.75 |
| 7 seconds | 71 | 5.95 |
| 8 seconds | 73 | 6.1 |
| Product name | Electromagnetic water meter | Ultrasonic water meter | Mechanical water meter | Description |
| Start flow | Low | Low | High | "High"; represents small flow that cannot be measured |
| Measuring Range | Wide | Wide | Narrow | "Narrow" means inaccurate measurement of small flow rates |
| Long term measurement accuracy | Stable | Transducer fatigue | Wear and tear | "Transducer fatigue" and "wear" mean that deviations are prone to occur during long-term operation. |
| Long term reliability | High | Relatively high | Lower | "Lower" means prone to failure |
| Effect of bubbles on measurement accuracy | Smaller | Larger | Smaller | "Large" means that it affects the measurement accuracy |
| Straight Pipe Run Requirement | Extremely low | Relatively high | Relatively high | "Higher" means that when the straight pipe section is not enough, the measurement accuracy will be affected. |
| Far transmission data | Accurate | Accurate | May be misread | "Misreading" means that the data read may not be consistent with the actual situation |
| Power Consumption | Relatively high | Lower | Basically no power supply required | "Lower" means the lithium battery has a relatively long life |
| Reliability | High | Relatively high | Lower | "Lower" means prone to failure |
| Price | High | Relatively high | Lower |
| Sensor | |||
| Model | FTE-1780A electromagnetic water meter | ||
| Connection Type | flange type (GB/T9119-2010) | ||
| Measurement parameters | Instantaneous flow, cumulative flow, pressure (optional) | ||
| diameter (DN) (mm) | DN50-DN300 | ||
| Pressure level (MPa) | 1.0MPa to 4.0MPa (according to caliber) | ||
| Lining material | Rubber | ||
| Conductivity | ≥20μs/cm | ||
| Electrode | 316L stainless steel | ||
| Protection Rating | IP68 | ||
| Temperature | process medium temperature: 0℃~+70℃ | ||
| Ambient temperature: -25℃~+70℃ | |||
| storage temperature: -40℃~+70℃ | |||
| Shell material | Stainless Steel | ||
| Converter | |||
| Protection Rating | IP68 | ||
| Measuring Range | 0m/s to ±15m/s continuously measurable | ||
| Measuring Accuracy | Level 2 or 1, implement standard GB/T778-2007 | ||
| Power supply method | Built-in 3.6V lithium battery | ||
| Built-in lithium battery life | Communication battery: 1.5 years to 6 years (test results in the laboratory will be affected by environmental and temperature changes, communication methods and frequency) | ||
| Excitation frequency | Locked state: 6.25HZ; test state: 1/15HZ | ||
| Forward/reverse flow measurement | When the flow rate is positive, the flow direction is consistent with the direction of the flow direction mark; when the flow rate is negative, the flow direction is opposite to the direction of the flow direction mark. | ||
| Display type | Multiple display modes, 9 combinations, display instantaneous flow, positive and negative cumulative flow, net flow, etc. | ||
| Display and control | Data can be input through four photoelectric buttons. Ten digits display the cumulative flow rate (accurate to three decimal places), and five digits display the instantaneous flow rate (accurate to the smallest decimal place). | ||
| Counting two digits), can automatically adjust the accuracy, can display instrument diagnosis and alarm status, user password control, menu-based parameter setting | |||
| Output type | On-site RS-485 data interface | ||
| Alarm function | The field meter displays alarm status display, sensor failure, converter failure, battery undervoltage, empty pipe, measurement status alarm, output alarm, etc. | ||
