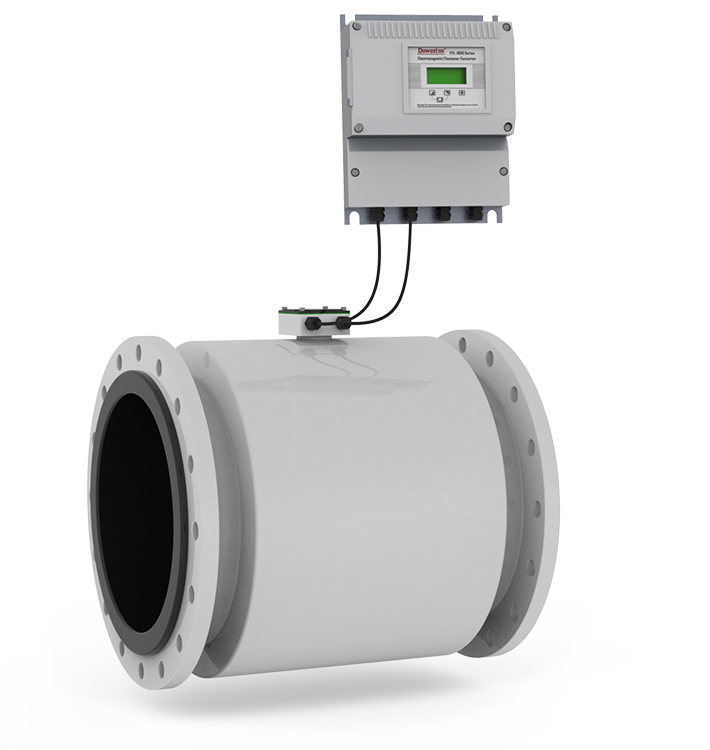

Home > Products > Flow Measurement > Electromagnetic Flow Meter > FTE-1600Plus Series Multiparameter Electromagnetic Flow Meter
New
Cold water, hot waterEnergy meter, water pipeline network inspection
FTE-1600Plus series multi-parameter electromagnetic flow meter is designed based on Faraday electromagnetic induction principle.Almost no pressure loss, the straight pipe section requirements are lower, can measure and display cumulative flow, instantaneous flow, flow rate, flow percentage, heat value, cooling value, pressure value, temperature value, etc. It is now widely used in circulating water, water supply, refrigeration and other industries.
Can be equipped with temperature sensor and pressure sensor to realize cooling capacity measurement or real-time monitoring of pressure
The dual-chamber transmitter housing insulates the electronic components and protects them from moisture and contamination over the long term.
Robust, fully welded construction designed to withstand constant vibration
Continuous meter verification ensures flow meter calibration without interrupting the process
Use replaceable terminal blocks for easy field repair without replacing the entire meter
Advanced diagnostic capabilities and report printing to verify instrument performance to meet regulatory agency requirements
Easy-to-use operator interface simplifies configuration and usability
Accuracy: Up to 0.5% volume flow accuracy at 13:1 flow turndown and 1% at 30:1 flow turndown
Caliber: 4-1800 mm optional
Lining materials: ETFE, PTFE and PFA
Electrode Materials: 316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium, Monel Please consult factory for other material options
Signal output: 4-20mA, pulse
Communication method: Modebus RTU/RS-485, HART communication
For more parameters, please consult customer service to obtain information!
