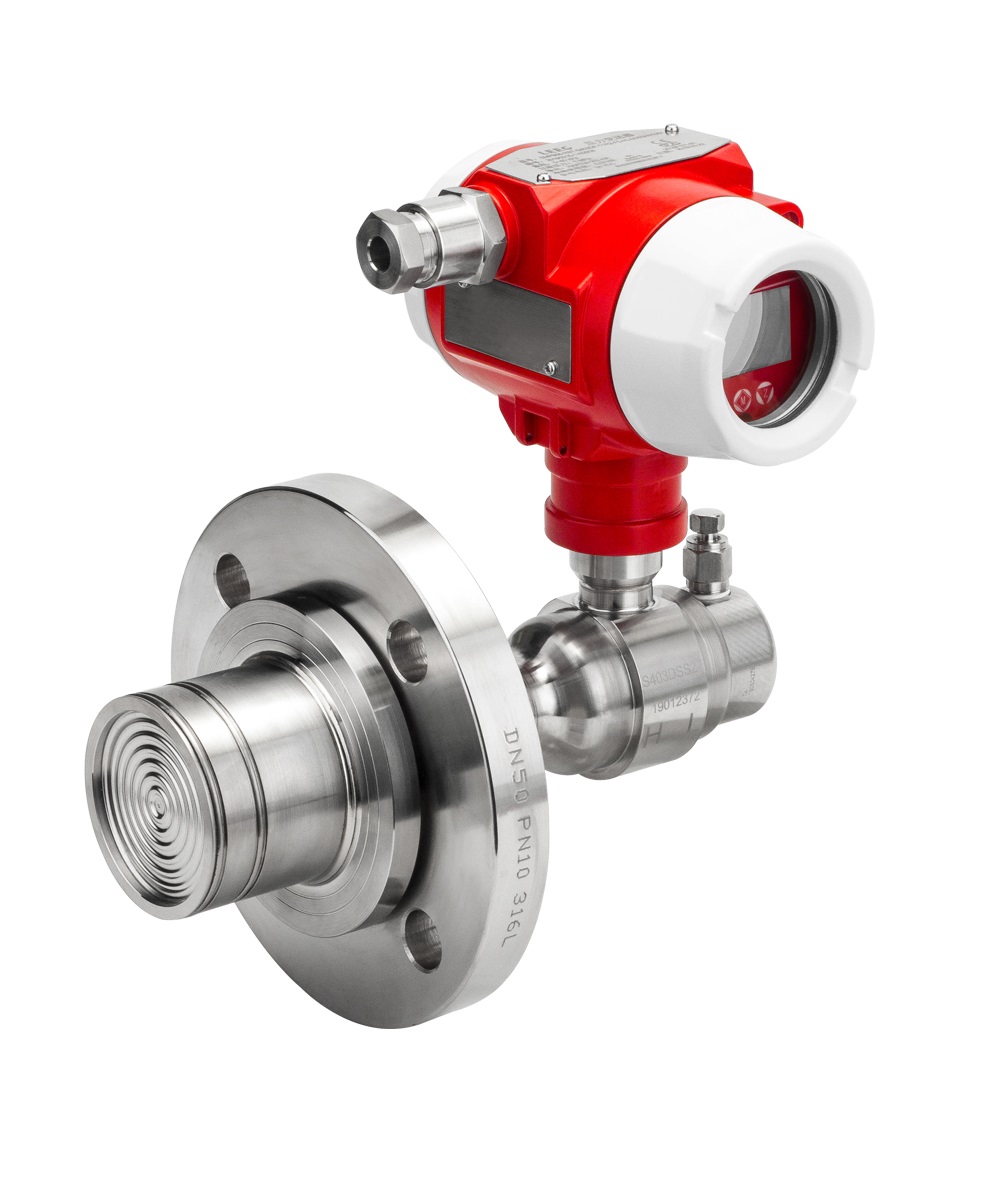

LPL-750E Series
Single-Flange Hydrostatic Level Transmitter

The LPL-750E single flange static pressure level gauge is based on the principle that the measured static pressure of a liquid is proportional to the height of the liquid. It uses an advanced foreign isolated single-crystal silicon sensor to convert the static pressure into an electrical signal, which is then converted into a standard electrical signal (generally 4~20mA/1~5VDC) through temperature compensation and linear correction. It is a liquid level meter widely used in mechanical engineering and automated control. It can be connected to a meter, recorder, computer, PLC program controller or alarm, etc.

■ The double-diaphragm overload structure can easily cope with high overload tests.

■ Diaphragm material: SS316L, Hastelloy C

■ The display module can be rotated 355°, and the key parameter operation function is friendly.

■ Precise liquid filling technology reduces the influence of temperature and static pressure.

■ The rugged metal electrical housing withstands demanding environments.

■ Very powerful transient voltage protection terminal module.

 Application Areas:

■ LPL-750E single flange hydrostatic level gauge is mainly used for differential pressure or liquid level measurement in distillation towers, chemical storage tanks, sulfate pulping vessels, enzyme fermentation, alkylation reactions, beer fermentation and other fields.
