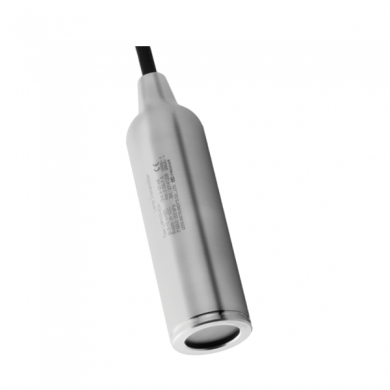

LPD-310C Series
High-Performance Capacitive Level Transmitter

The LPD-310C capacitive input liquid level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. It uses advanced isolated diffused silicon sensitive elements or ceramic capacitive pressure sensitive sensors to convert the static pressure into an electrical signal, and then through the temperature Compensation and linear correction are converted into standard electrical signals (generally 4~20mA/1~5VDC). It is a liquid level meter widely used in mechanical engineering and automatic control. It can be connected to meters, recorders, computers, PLC program controllers or alarms, etc.

■ measuring range:0-200m

■ Comprehensive accuracy: ±0.1%FS

■ Probe material: stainless steel (optional coating of PP, PTFE)

■ Operating temperature: -40 to 125°C

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20mA, Hart, RS485, etc.

■ Process connection: threaded, flanged

■ Protection level: electrical part IP65 (optional IP68)

■ Explosion protection: ExdIICT6, NEPSI

■ Service life:>1*10^8 pressure cycle
