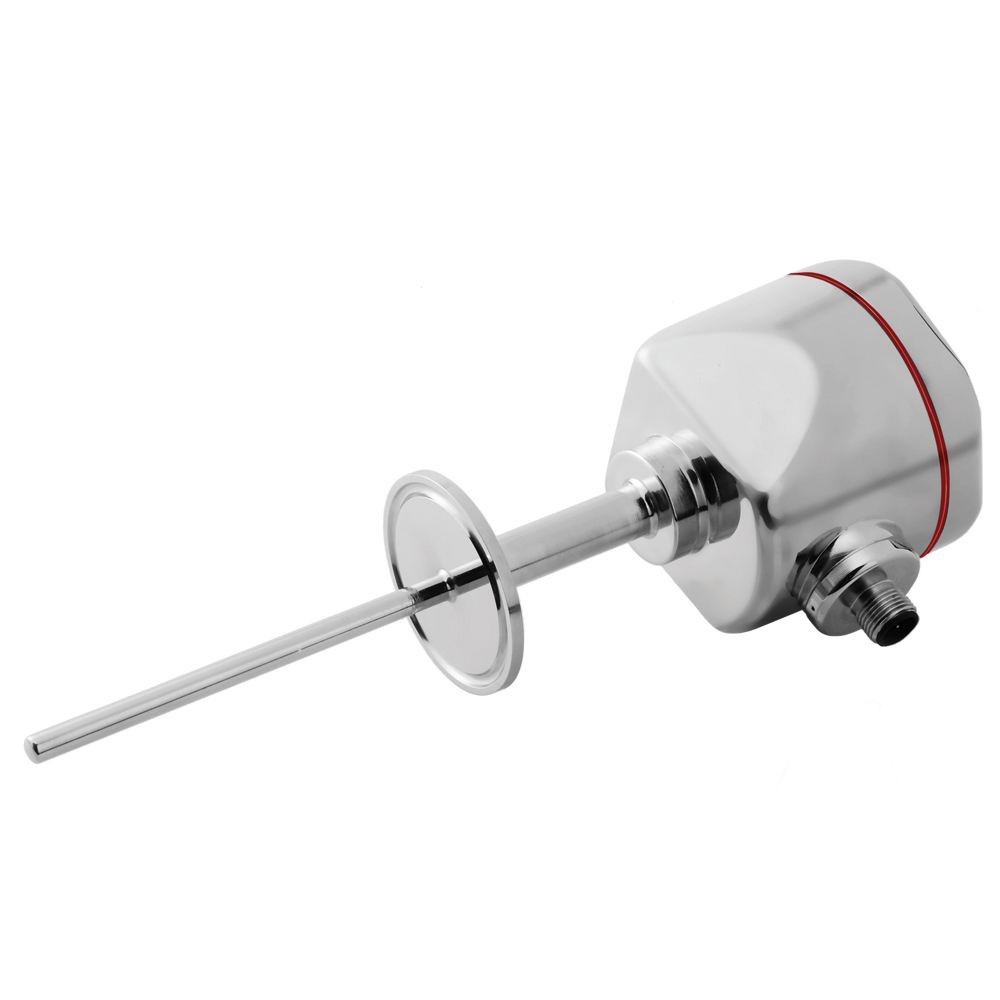

TJ-150Q Series
Sanitary RTD Temperature Sensor

Principle:

■  TJ-150Q hygienic type RTD temperature sensorThe temperature measurement principle is based on the characteristic that the resistance value of a conductor or semiconductor changes with temperature to measure temperature and temperature-related parameters. Most thermal resistors are made of pure metal materials. Currently, platinum and copper are most commonly used. Materials such as nickel, manganese and rhodium have now been used to manufacture thermal resistors. Thermal resistors usually need to transmit resistance signals to computer control devices or other secondary instruments through leads.Thermal resistance is a type of temperature detector commonly used in medium and low temperature areas.

 Features:
■  For temperatures from -40 to +350°C
■  Flexible sheathed cable with anti-vibration measuring insert
■  It adopts stainless steel shell and its surface roughness meets the hygiene grade requirements of the food industry.
■  Application-specific insertion length

■  Chuck connection for easy installation and cleaning

■ Good mechanical strength, vibration and shock resistant

■  Compact with no internal air gap

■ low thermal inertia with minimal measurement lag

■ Long service life

 Application Areas:

■ TJ-150Q hygienic type RTD temperature sensorOften used to measure food, beverages, pharmaceuticals, brewingThe temperature of gas or liquid in equipment, pipelines and the surface temperature of solids.
