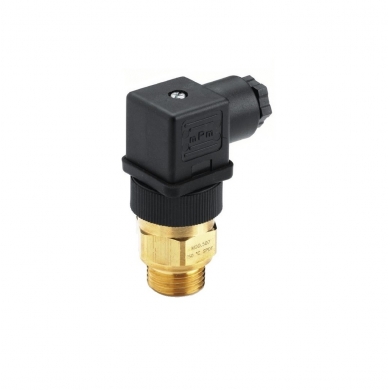

Home > Products > Temperature Measurement > Temperature Switches > TT-10 Mechanical Temperature Switch
principle:
■ TT-10 mechanical temperature switch adopts the bimetal principle. When the temperature reaches the set value, one end of the bimetal sheet wound into a circular bent shape is heated and expands to trigger the built-in mechanical device, thereby outputting a switching signal.
Features:
■ Wide, easy to install, multiple ranges available,
■ Compact structure with few moving parts
■A variety of connection methods are available
Application Areas:
■ This product is suitable for different requirements for temperature control in hydraulic and hydropower, chemical and petrochemical industry equipment and thermal coal boilers, pneumatics, hydraulics, cooling systems, and heating systems. It is used to detect whether the temperature exceeds the upper or lower limit.
■ Sensor: bimetal sensor
■ Measuring range: 30-130℃
■ Bearing pressure: 10bar
■ Input and output: Normally open or normally closed optional (contacts are silver-plated)
■ Contact capacity: 16A-220VAC
■ Comprehensive accuracy: B level
■ Fixed hysteresis: 15% (above 80°C)
■ Error: ±5%FS
■ Repeatability: ≤±1%FS/year
■ Liquid contact material: Brass
■ enclosure Material: NBR
■ Process connection: threaded connection
■ Operating temperature: 0℃~130℃
■ Protection level: electrical part IP65
■ Electrical connection: terminal wiring (with Hirschmann connector)
■ Seal: Thread seal
