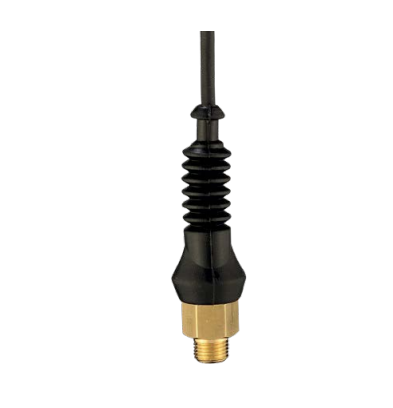

TT-17 Bimetal Thermostat

New TT-17 bimetal thermostat thermostat Hydraulic systems, radiators, heat exchangers, lubri...

Factory Direct
Chengdu production base, every unit calibrated before shipping
Fast Delivery
Standard models in stock, custom builds on schedule
Technical Support
Selection guidance / installation and commissioning / after-sales support

Get a Quote and Selection Advice Download Technical Documents

Brand: DOWESTONWarranty: 12 monthsOEM / customization supported

OVERVIEW

TT-17 bimetal thermostat thermostat

Hydraulic systems, radiators, heat exchangers, lubrication systems, automobiles and other fieldstemperature control.

Application conditions:Sensors should be used according to specific liquid and environmental conditions.

FEATURES

SPECIFICATIONS

Electrical condition	Normally open or normally closed
Electrical Connection	HT 105 PVC wire (can be customized upon request)
Intervention temperature	Other available on request
Error	5/10K
Intervention tolerance	+/- 5K
Electrical characteristics	12Vcc / 6 A
Maximum ambient temperature	Standard cable +105°C
Number of cycles	100.000
Cycles per minute	Up to 5 times
Snap contact
Temperature change rate	1÷2 K/min
Thread(X3)	M14x1,5 (can be customized upon request)
Maximum tightening torque	25 Nm
Protection Rating	IP67
