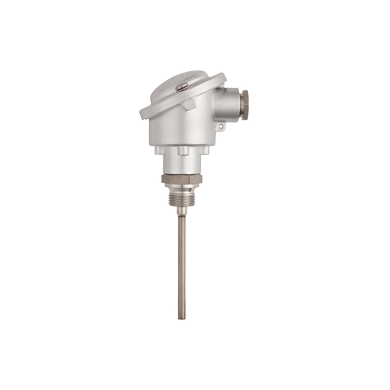

TA-200A Series
Armored Temperature Transmitter

 Principle:
■  TA-200A armored temperature transmitterIt is composed of reference unit, R/V conversion unit, linear circuit, reverse connection protection, current limiting protection, V/I conversion unit, etc. After the temperature measurement thermal resistance signal is converted and amplified, the nonlinear relationship between temperature and resistance is compensated by a linear circuit. After passing through the V/I conversion circuit, a 4-20mA constant current signal that is linearly related to the measured temperature is output.

 Features:
■  Wide and easy to install, multiple ranges are available, and probes of various specifications are available
■  Flexible sheathed cable with anti-vibration measuring insert

■ Good mechanical strength, vibration and shock resistant

■ low thermal inertia with minimal measurement lag

■ It has compact structure, few moving parts and wide measuring range (-200-1800°C).

■ Extremely high accuracy and repeatability, with built-in temperature compensation.

■ It is pressure-resistant, shock-proof, and moisture-resistant, and is suitable for installation and use in harsh on-site environments.

■ The thermocouple temperature transmitter has the function of automatic compensation of cold end temperature.

■ Thermal resistance, thermocouple signal input, 4-20mA or thermal resistance, thermocouple signal output

 Application Areas:

■ TA-200A armored temperature transmitterIt is suitable for water treatment control equipment, electrical industry, ship hydraulic equipment, hydraulic and hydropower, chemical industry, petrochemical industry equipment and hot coal boilers, pneumatic, hydraulic, cooling system, heating system, automation engineering, etc.; the product is suitable for temperature detectors in medium and low temperature areas.
