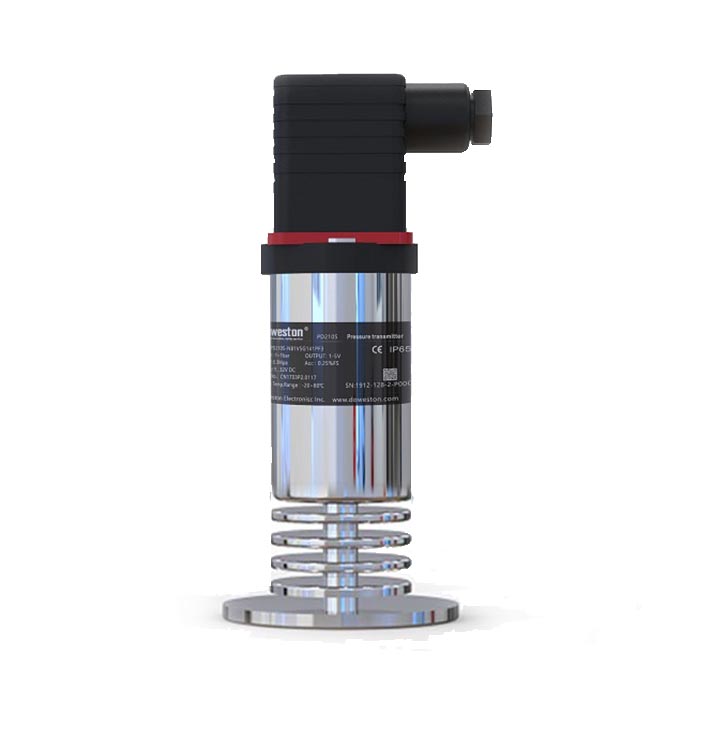

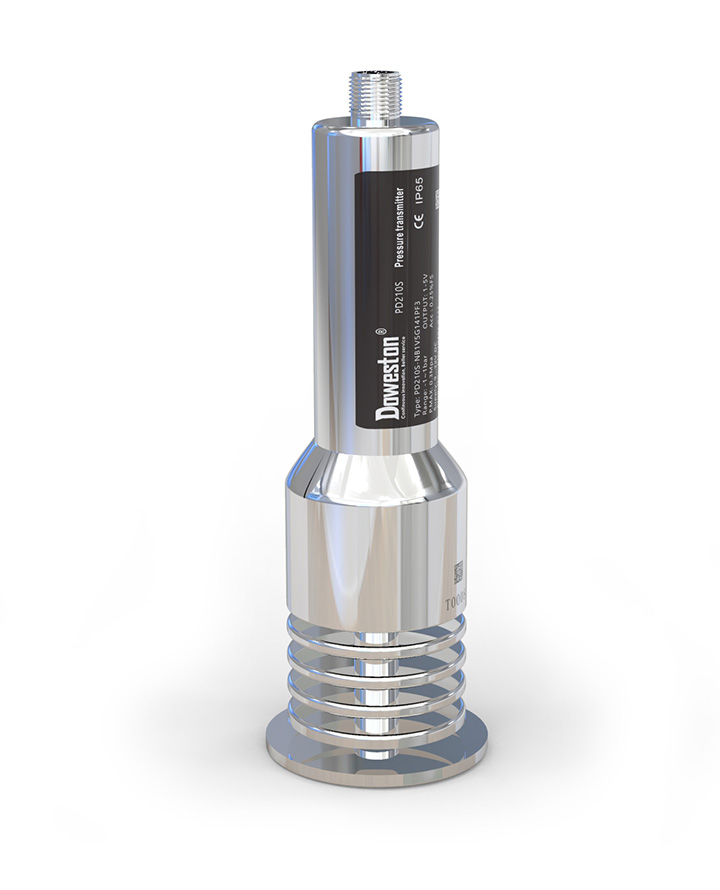

PD-210Q diaphragm pressure transmitter
Mechanical engineering, agricultural engineering, gas, medical technology fieldsElectronic pressureMeasurement
PD-210Q diaphragm pressure transmitter incorporates new diffused silicon sensing elementComponents, combined with circuit processing and temperature compensation technology, convert pressure changes into linear standard current or voltage signals, suitable forwith a certainCorrosive, viscous, amorphous fluids and gas media, Multiple output options, there are various connection methods such as chuck and flange. Due to the end face diaphragm, this transmitter can also be used forViscous, highly viscous or crystallizing mediaCan meet the measurement needs of most hygiene level requirements.
The PD-210Q diaphragm pressure transmitter is based on the prototype of a universal pressure transmitter and is equipped with a welded sealing isolation diaphragm structure. Its welded sealed isolation diaphragm device has a variety of different process connection structures. It is especially suitable for pressure measurement in high temperature, high viscosity and easy-to-clog situations. It is also suitable for pressure measurement in sanitary and medical situations..
■ measured medium:Certain corrosive, viscous, amorphous fluids and gas media
■ measuring range:-0.1-10MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material: 316L stainless steel
■ operating temperature:-40-120℃
■ Overload pressure: 150% FS
■ Burst pressure: 200% FS
■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.
■ Process connection: chuck, flange
■ Protective connection: aviation plug, Horsman connector, waterproof gland
■ Seal: fluorine rubber (FKM)
| Compatible Media | Certain corrosive, viscous, amorphous fluids and gas media |
| Measuring Range | -0.1-10MPa |
| Overall Accuracy | ±0.25%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-120°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <1 ms (10...90% FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Housing Material | Low copper aluminum alloy, stainless steel |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal blocks, aviation plugs, Horsman connectors |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Fluororubber (FKM) |
| Mounting Type | Chuck, flange |
| Weight | Approx. 0.4 kg |
Application Areas:
■ PD-210Q diaphragm pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
