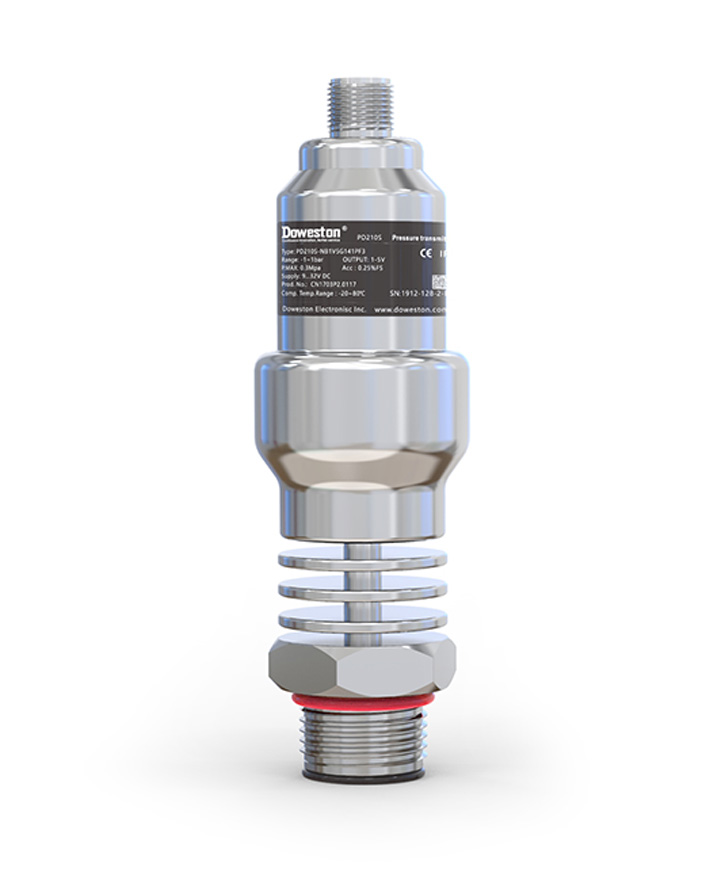

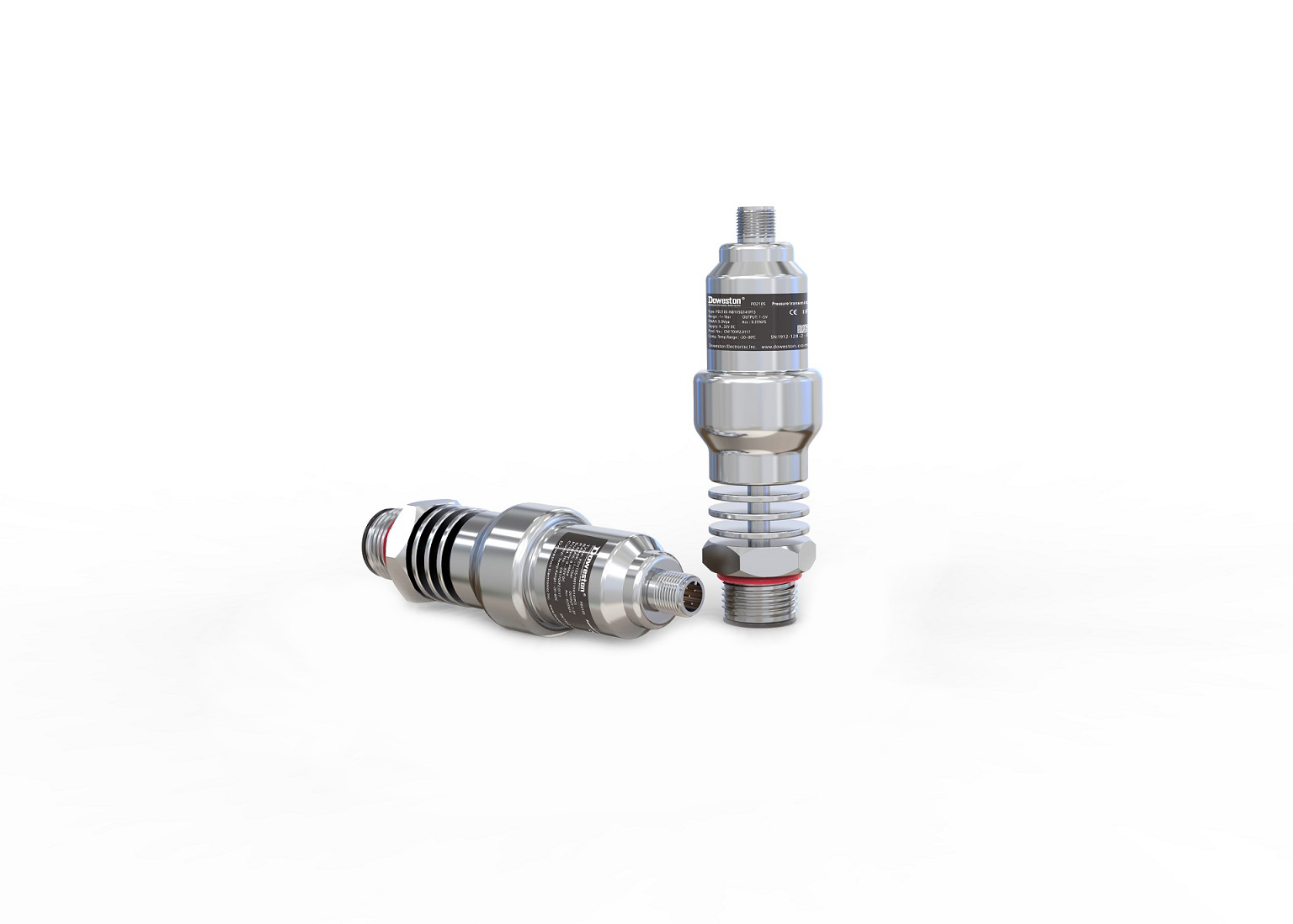

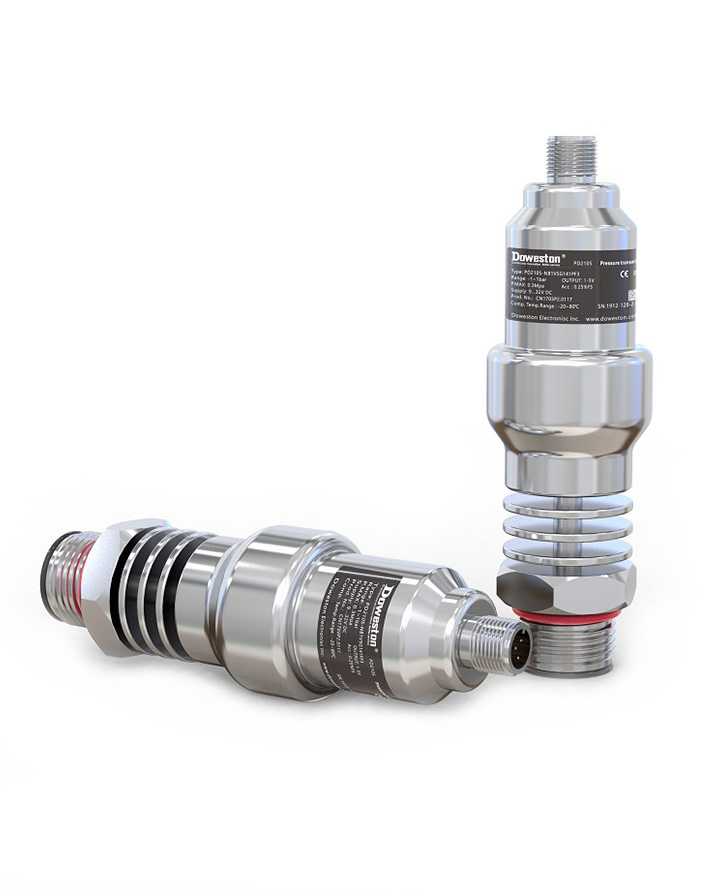

PD-210T Series
High-Temperature Pressure Transmitter

PD-210T series high temperature pressure transmitterThe physical pressure parameters such as gas and liquid are converted into standard electrical signals (such as 4~20mADC, etc.) to provide secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment.

It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.

■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid, high temperature gas liquid

■ measuring range:-0.1-40MPa

■ Comprehensive accuracy: ±0.1%FS

■ Diaphragm material: 316L stainless steel

■ operating temperature:-40-120℃

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.

■ Process connection: threaded, flanged

■ Protective connection: aviation plug, direct wiring, waterproof gland

■ Seal: fluorine rubber (FKM)
