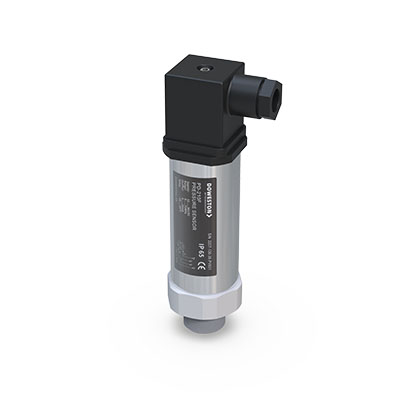

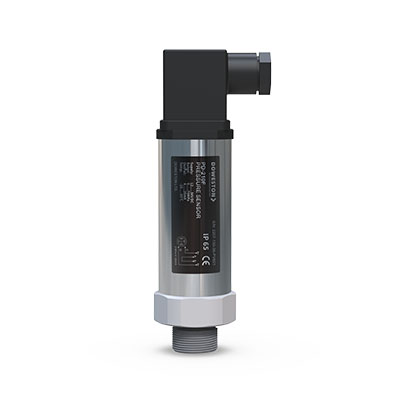

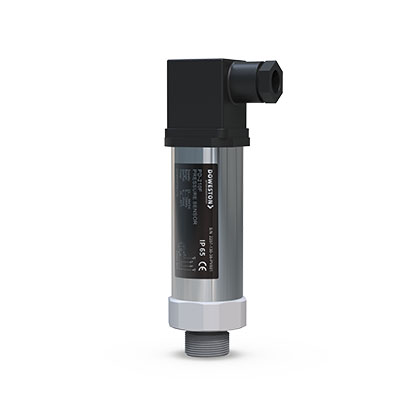

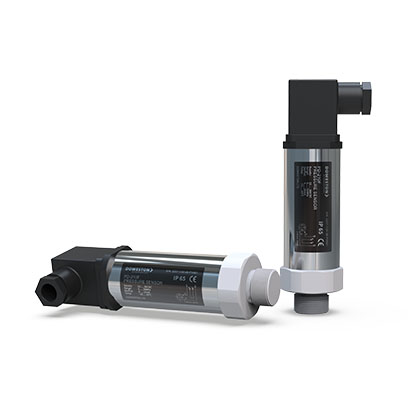

PD-210F Series
Corrosion-Resistant Pressure Transmitter

PD-210F corrosion-resistant type pressure transmitterCanConvert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment. It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.

■ Measuring medium: dry gas, gas, liquid, highly corrosive liquid, viscous liquid

■ measuring range:-0.1-2MPa

■ Comprehensive accuracy: ±0.25%FS

■ Diaphragm material: stainless steel 316L (coveredPP, PTFE)

■ Operating temperature: -40 to 125°C

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.

■ Process connection: threaded, flanged

■ Protective connections: Horsmann connectors, direct wiring, waterproof glands

■ seal:Fluororubber (FKM)
