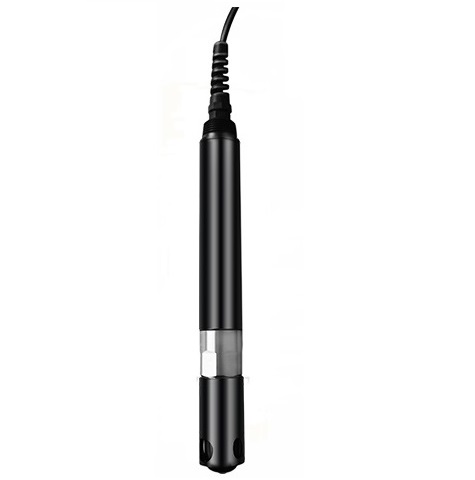

DPH-160 online ORP digital sensor/transmitter
(RS-485/ModbusRTU)
What you measure is what you get, with digital sensor technology, measurements are no longer erratic.
Powerful Modebus RTU/RS-485 transmission method, rich data carrying, accurate measurement of acid-base changes!
● RS-485 ( Modbus/RTU protocol ) signal output.
● Conveniently connected to third-party devices such as PLC, DCS, industrial control computers, general controllers, paperless recording instruments or touch screens.
● Dual high-impedance differential amplifiers, strong anti-interference and fast response.
● ORP probe, the internal reference liquid seeps out from the microporous salt bridge extremely slowly under a pressure of at least 100KPa (1Bar), and its positive seepage lasts for more than 20 months. Such a reference system is very stable and the electrode life is doubled compared to ordinary industrial electrodes.
● Easy to install: 3/4NPT pipe thread, easy for submersible installation or installation in pipes and tanks.
● IP68 Protection rating.
Model | DPH-160 |
Measuring range | 0~14pH |
Resolution | 0.01pH |
Accuracy | ±0.1pH |
Operating Temperature | 0-65°C |
Working Pressure | <0.2MPa |
Temperature compensation | Automatic temperature compensation (NTC) |
Power supply | 12VDC~24VDC ±10% |
Signal Output | RS-485(Modbus/RTU) |
Wetted material | PPR |
Mounting Type | Submersible installation, 3/4NPT thread |
Cable length | 5 m; other lengths customizable |
Calibration method | Two-point calibration |
Power Consumption | <0.5W |
Protection Rating | IP68 |
