Home > Products > Process Analysis > Online pH Analyzers > PH-D120 Online Digital Sensor
PH-D120 Online Digital Sensor - Product Detail 1 - DOWESTON

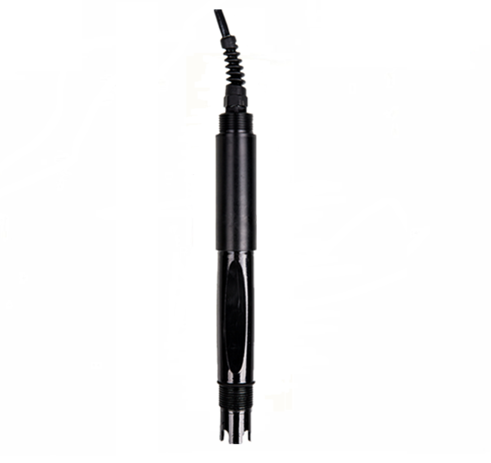

PH-D120 Online Digital Sensor

New PH-D120 online PH digital sensor/transmitter (RS-485/ModbusRTU) What you measure at 0 to...
  • Factory Direct
    Chengdu production base, every unit calibrated before shipping
  • Fast Delivery
    Standard models in stock, custom builds on schedule
  • Technical Support
    Selection guidance / installation and commissioning / after-sales support
Get a Quote and Selection Advice Download Technical Documents
Brand: DOWESTONWarranty: 12 monthsOEM / customization supported

Product Overview

OVERVIEW

 New

PH-D120 online PH digital sensor/transmitter

(RS-485/ModbusRTU)


What you measure at 0 to 14 pH is what you get. With digital sensor technology, measurement is no longer erratic.


Powerful Modebus RTU/RS-485 transmission method, rich data carrying, and accurate measurement of every data!




Features

FEATURES


●  signal output: RS-485 ( Modbus/RTU protocol ).

● Conveniently connected to third-party devices such as PLC, DCS, industrial control computers, general controllers, paperless recording instruments or touch screens.

● Dual high-impedance differential amplifiers, strong anti-interference and fast response.

● ORP probe, the internal reference liquid seeps out from the microporous salt bridge extremely slowly under a pressure of at least 100KPa (1Bar), and its positive seepage lasts for more than 20 months. Such a reference system is very stable and the electrode life is doubled compared to ordinary industrial electrodes.

● Easy to install: 3/4NPT pipe thread, easy for submersible installation or installation in pipes and tanks.

●  IP68 Protection rating.

Specifications

SPECIFICATIONS

Range

0~14pH

Resolution

0.01pH

Accuracy

±0.1pH

Operating Temperature

0~65℃(0~100℃ optional )

Working Pressure

<0.2MPa

Power supply

12~24VDC±10%

Signal Output

Rs485(Modbus/RTU)

Wetted material

PPR

Mounting Type

3/4" NPT thread

Maintenance

It is recommended to clean the electrode once a month and calibrate it every three months.

Replace electrodes once a year.

Display type

None

Measurement compensation

temperature compensation NTC2.252K

Dimensions

50×45×230mm

Weight

230g

Calibration method

Two-point calibration

Protection Rating

IP68

Measuring principle

Electrochemistry, 3 mol/L KCL

Power Consumption

<0.5W

Brand

DOWESTON
