Home > Products > Level Measurement > Capacitance Level Meter > LEA-400 Series Plate Capacitive Liquid/Solids Level Switch
New

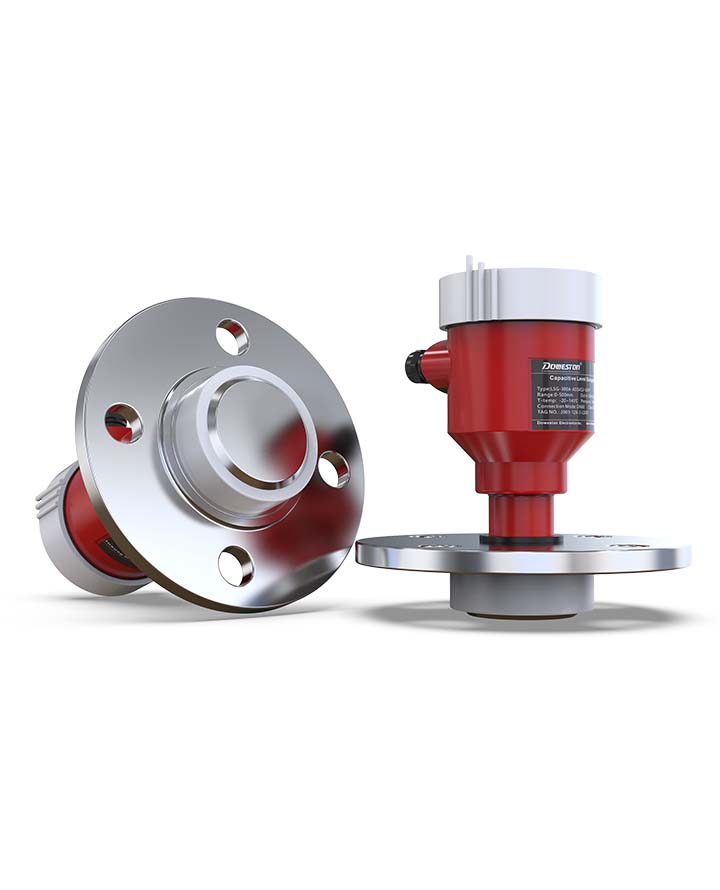

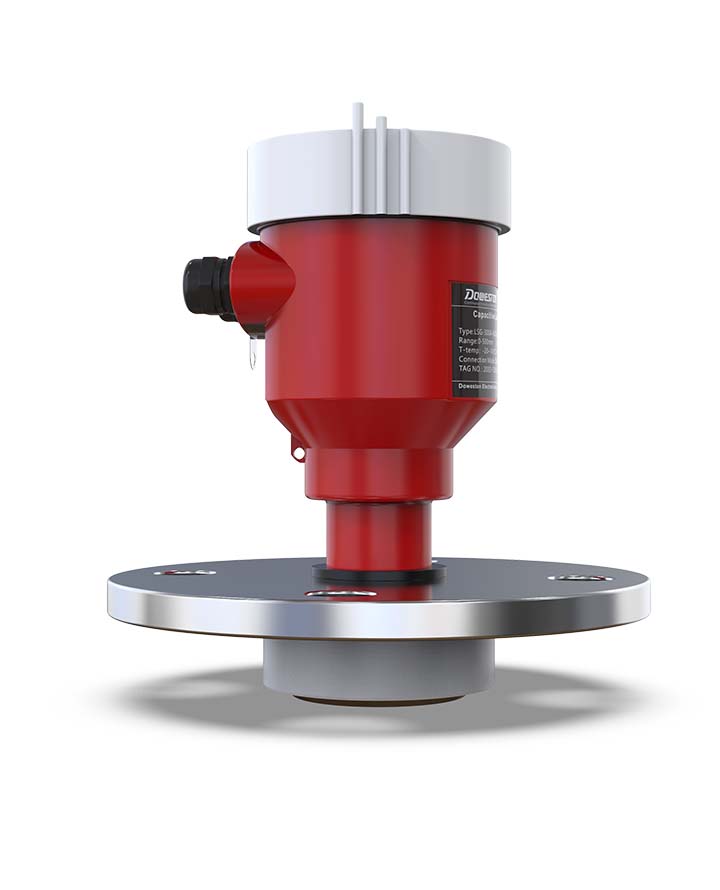

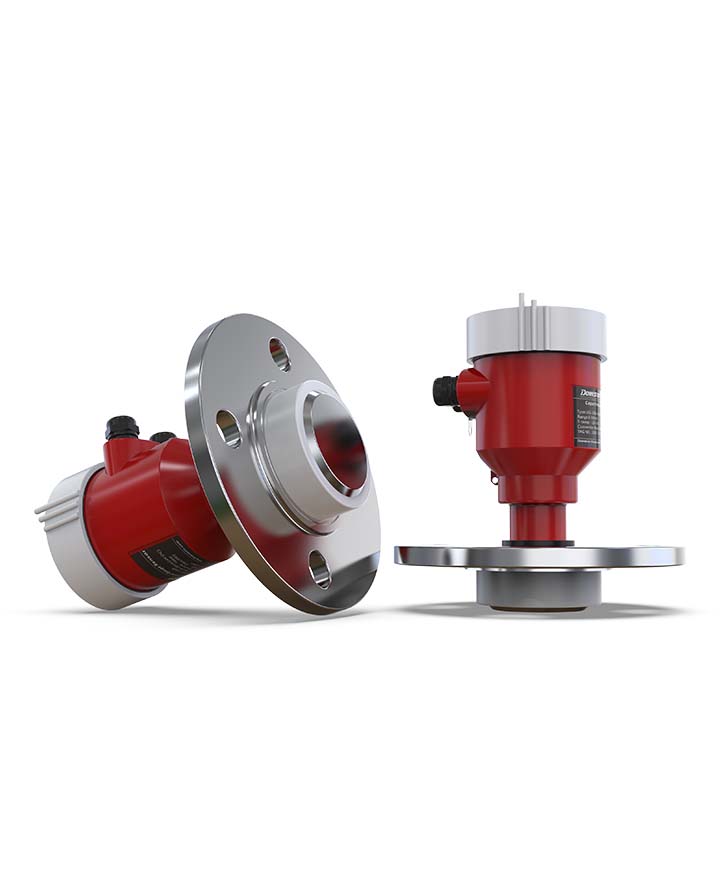

LEA-400 flat capacitive liquid (material) level switch
Solve various complex working conditionsLow level monitoringQuestion

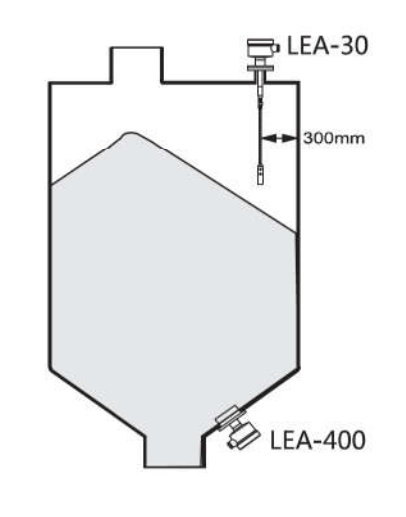

LEA-400 flat capacitive liquid (material) level switch uses flat metal as one electrode of the capacitor and the container wall as the other pole of the capacitor. When the solution changes, the dielectric constant of the capacitor opens, thereby changing the capacitance. After circuit processing, the liquid level is output. Available forHigh temperature and high pressureStrong corrosion, easy to crystallize, anti-clogging, anti-freezing and solid powder, granular materials. Mainly used for low liquid (material) level monitoring, suitable forEmpty tank monitoring of various tanks, boxes, barns, and silos.LEA-100 useNewpeaceCapacitive level gauge control technology has stable and reliable technical characteristics and is suitable for extreme working conditions.
LEA-100 rod type capacitive liquid (material) level switchIt is a device that converts changes in the position of the measured object into capacitance. The capacitance level meter has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and the ability to work under severe conditions such as high temperature, radiation and strong vibration. It has been used in various fields of industrial and agricultural production.
■ No moving parts; long life and high stability
■ Made of UPE, PTFE and other materials, it is wear-resistant and corrosion-resistant, and can adapt to harsh working conditions.
■ Capacitive liquid level switch relay output can be connected to PLC or alarm
■ wide adaptability: measures solid granules, powders and all kinds of liquids
■ Highly buildup-resistant
■ Process connection: flange connection, threaded connection
■ Ingress protection: electrical section IP65
■ Seal: fluorine rubber (FKM)
Compatible Media | Sand, casting sand, aluminum chips, cement, grain, milk powder, flour, dolomite, lime, china clay, feed, coal ash, processing raw materials, detergent, plastic particles, alcohol, methanol, etc. |
Measurement span | 0.15-45m |
| Measuring Range | Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring |
| Overall Accuracy | 0.2% FS (typical); 0.5% |
Sensitivity | Standard 10pF 20/40pF optional |
Display | Indicator light optional |
Input Voltage | 24 V DC, 220 V AC |
Output | Relay, SPDT, NPN, PNP transistor output |
Operating Temperature | -20-100°C (standard), -20-200°C (high temperature) |
Tolerate stress | -0.1-5MPa |
Load resistance | ≤1000Ω |
Ambient Temperature | -40-75℃ |
Response Time | <5ms (10...90%FS) |
Probe electrode material | Stainless steel 304, 316L, PTFE coated |
Transmitter material | Die-cast aluminum / aluminum alloy |
| Insulation material | UPE, PTFE, PEEK |
Protection Rating | Electrical section IP65 |
Electrical Connection | Terminal wiring M20*1.5 screw hole |
Explosion-proof Marking | ExibIIBT5 |
Seal | Fluororubber (FKM) |
Mounting Type | Threaded connection, flanged connection |
Application Areas:
■ LEA-100 rod type capacitive liquid (material) level switch is suitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.
