Home > Products > Level Measurement > Capacitance Level Meter > LEB-16 Series Low-Range Capacitive Liquid/Solids Level Switch
New

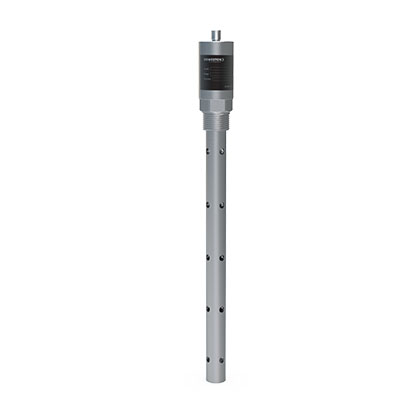

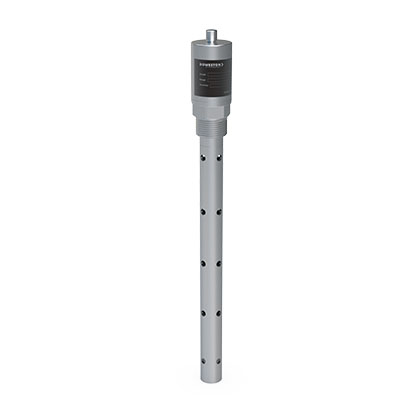

LEB-16 small range capacitive liquid (material) level switch
Monitor various small particles with dielectric constant above 1.5Solid materialsMedium andAll kinds of liquids
LEB-16 small range capacitance liquid (matter) level switch uses a metal probe as one electrode of the capacitor, and the container wall as the other pole of the capacitor. When the solution changes, the dielectric constant of the capacitor is opened, thus changing the capacitance. After circuit processing, the liquid level is output. Available forHigh temperature and high pressureStrong corrosion, easy to crystallize, anti-clogging, anti-freezing and solid powder, granular materials,covering most measurement requirements. Suitable forHigh and low liquid level measurement of various tanks and boxes.LEA-100 useNewpeaceCapacitive level gauge control technology has stable and reliable technical characteristics and is suitable for extreme working conditions.
LEB-16 small range capacitive liquid (material) level switchIt is a device that converts changes in the position of the measured object into capacitance. The capacitance level meter has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and the ability to work under severe conditions such as high temperature, radiation and strong vibration. It has been used in various fields of industrial and agricultural production.
■ Product type: small range
■ Measuring range:Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring
■ Capacitive liquid level switch relay output can be connected to PLC or alarm
■ Use PTFE/PFA/PEEK materials to resist acid and alkali corrosion
■ Highly buildup-resistant
■ Probe material: metal, plastic
■ Process connection: flange connection, threaded connection
■ Ingress protection: electrical section IP65
■ Seal: fluorine rubber (FKM)
Compatible Media | Liquids |
Measurement span | 100-2500mm |
| Measuring Range | Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring |
| Accuracy Class | 2.0,1.0,0.5,0.2 |
Temperature drift | ≤0.02%℃ |
Display | Indicator light optional |
Input Voltage | 24VDC±20%, three-wire wiring, with IOLINK |
Output type | 1*4-20mA |
Medium temperature | -100°C~+200°C (high temperatures above 100°C require the installation of heat dissipation components between the detector and the transmitter head) |
Pressure range | 4.0Mpa |
Ambient Temperature | -25-65℃ |
Response Time | <5ms (10...90%FS) |
Probe electrode material | stainless steel 304 |
Transmitter material | Stainless Steel |
| Insulation material | PEA, PTFE, PEEK |
Electrical Connection | 4-pin M12 sensor socket |
Protection Rating | IP67 (requires M12 plug cable that meets IP67 requirements) |
Mounting Type | Threaded connection, flanged connection |
Application Areas:
■ LEB-16 small range capacitive liquid (material) level switch is suitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.
