Home > Products > Level Measurement > Capacitance Level Meter > CAL 62 Series Rod-Type Capacitive Liquid/Solids Level Switch
New

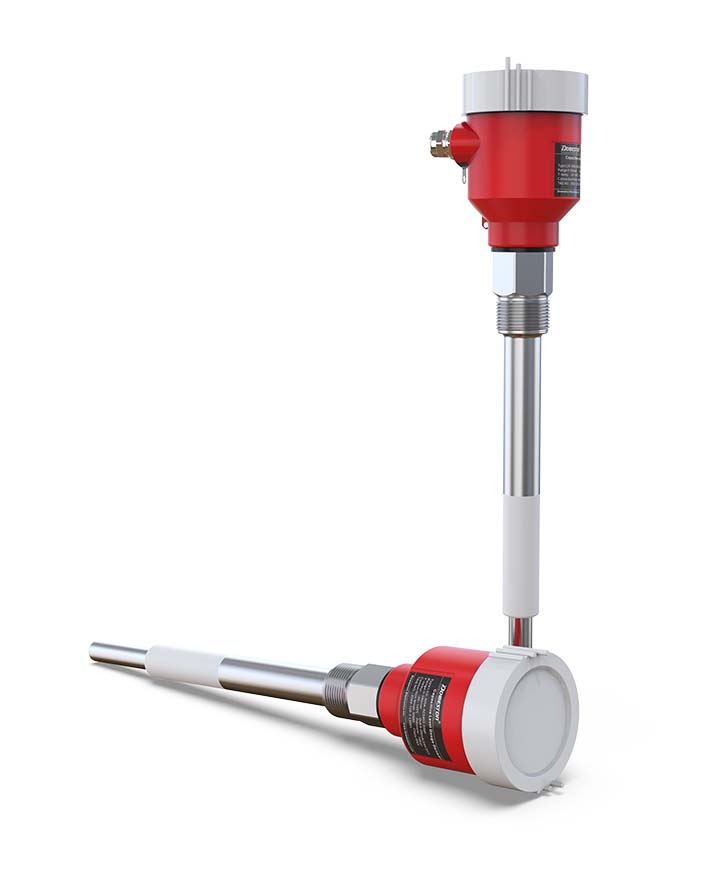

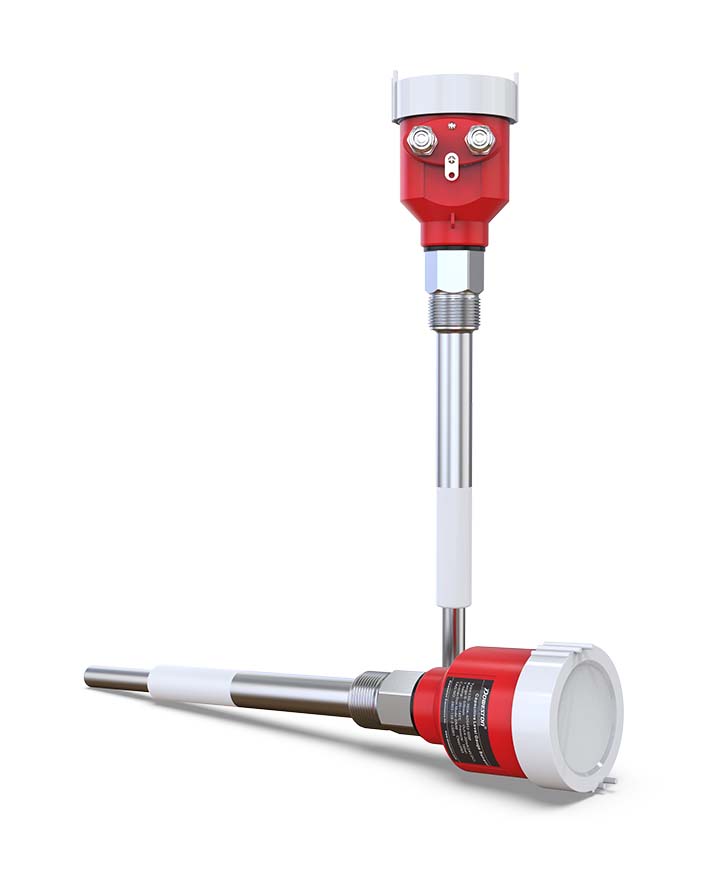

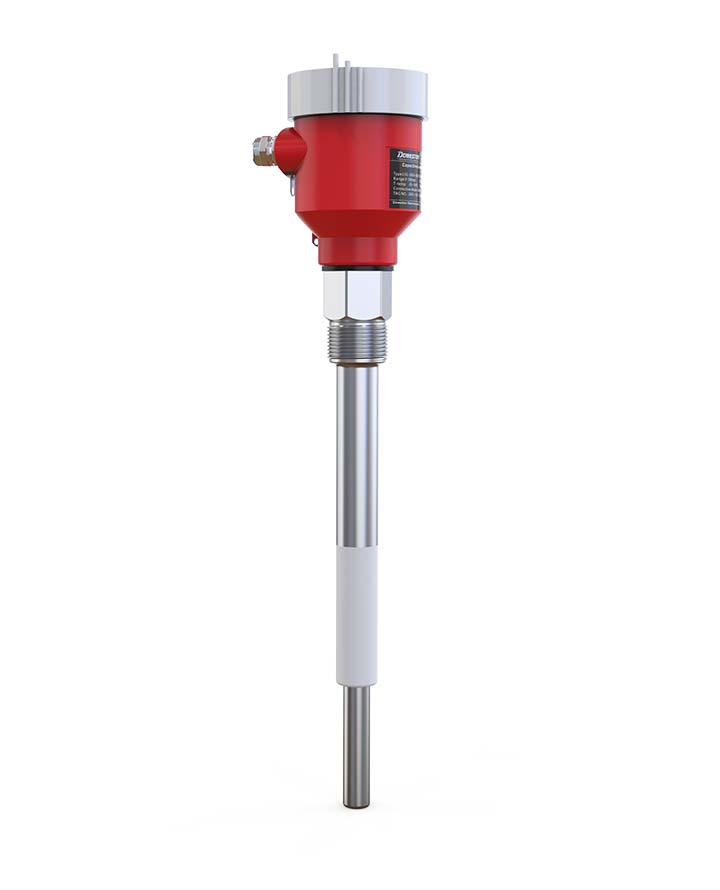

CAL 62 rod type capacitive liquid (material) level switch
Monitor various small particles with dielectric constant above 1.5Solid materialsMedium andAll kinds of liquids
The CAL 62 rod-type capacitive liquid (material) level switch uses a metal probe as one electrode of the capacitor, and the container wall as the other pole of the capacitor. When the solution changes, the dielectric constant of the capacitor opens, thereby changing the capacitance. After circuit processing, the liquid level is output. Available forHigh temperature and high pressureStrong corrosion, easy to crystallize, anti-clogging, anti-freezing and solid powder, granular materials,covering most measurement requirements. Suitable forHigh and low liquid level measurement of various tanks and boxes.LEA-100 useNewpeaceCapacitive level gauge control technology has stable and reliable technical characteristics and is suitable for extreme working conditions.
CAL 62 rod type capacitive liquid (material) level switchIt is a device that converts changes in the position of the measured object into capacitance. The capacitance level meter has the advantages of simple structure, high resolution, reliable operation, fast dynamic response, non-contact measurement, and the ability to work under severe conditions such as high temperature, radiation and strong vibration. It has been used in various fields of industrial and agricultural production.
■ Product types: split type, steel cable type, acid and alkali resistant type, high temperature type, etc.
■ Measuring range:Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring
■ Capacitive liquid level switch relay output can be connected to PLC or alarm
■ Use PP/PFA material to resist acid and alkali corrosion
■ Highly buildup-resistant
■ Probe material: metal, plastic
■ Process connection: flange connection, threaded connection
■ Ingress protection: electrical section IP65
■ Seal: fluorine rubber (FKM)
Compatible Media | Sand, casting sand, aluminum chips, cement, grain, milk powder, flour, dolomite, lime, china clay, feed, coal ash, processing raw materials, detergent, plastic particles, alcohol, methanol, etc. |
Measurement span | 0.15-15m |
| Measuring Range | Full-tank monitoring, intermediate-level monitoring, empty-tank monitoring |
| Overall Accuracy | 0.2%FS (typical), 0.5% |
Sensitivity | Standard 10pF 20/40pF optional |
Display | Indicator light optional |
Input Voltage | 24 V DC, 220 V AC |
Output | Relay, SPDT, NPN, PNP transistor output |
Operating Temperature | -20-100°C (standard), -20-200°C (high temperature), -20-800°C (ultra-high temperature) |
Tolerate stress | -0.1-5MPa |
Load resistance | ≤1000Ω |
Ambient Temperature | -40-75℃ |
Response Time | <5ms (10...90%FS) |
Probe electrode material | Stainless steel 304, 316L, PTFE coated |
Transmitter material | Die-cast aluminum / aluminum alloy |
| Insulation material | UPE, PTFE, PEEK |
Protection Rating | Electrical section IP65 |
Electrical Connection | Terminal wiring M20*1.5 screw hole |
Explosion-proof Marking | ExibIIBT5 |
Seal | Fluororubber (FKM) |
Mounting Type | Threaded connection, flanged connection |
Application Areas:
■ CAL 62 rod type capacitive liquid (material) level switch is suitable for continuous or limit measurement of liquid or solid material level. Suitable for industrial applications such as electric power, metallurgy, chemical industry, food, brewing, pharmaceuticals, machinery and equipment, sewage treatment, boiler steam drums, etc.
