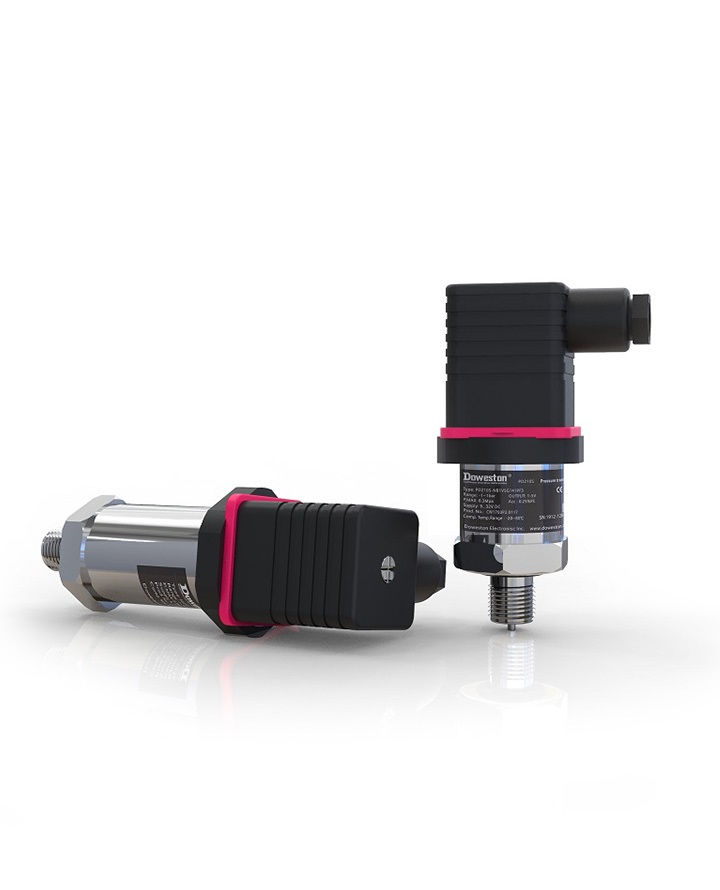

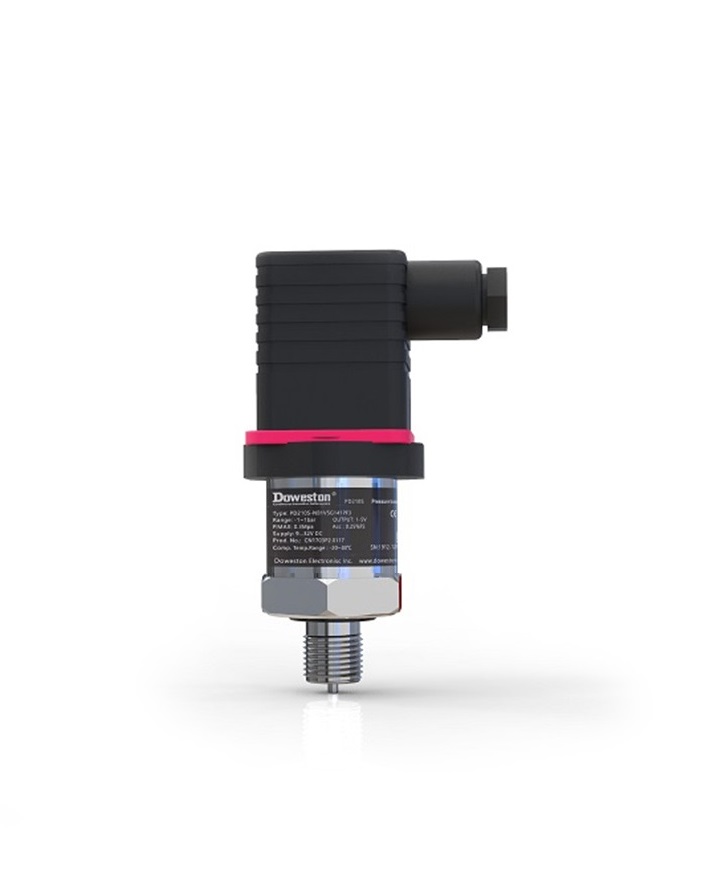

PDM-186 series economical pressure sensor
Equipped with equipment,Compact and cost-effective pressureMeasurement
PDM-186 series economical pressure sensorCombined with highly stable diffused silicon sensing elementComponent, which can convert pressure changes into linear standard current or voltage signals, withEconomical, compact, easy to install,suitable forwith a certainMildly corrosive fluids and gaseous media, Multiple output options, meeting different process requirements.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -0.1-40MPa
■ Comprehensive accuracy: ±0.5%FS
■ diaphragm Material: stainless steel 316L
■ Operating temperature: -20-60℃
■ Overload pressure: 150%FS
■ Burst pressure: 200%FS
■ Output: 4-20mA, 0-10V, etc.
■ Process connection: G1/4,NPT1/4,R1/4
■ Protective connection: Horsmann connector
■ Seal: fluorine rubber (FKM)
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1~40MPa ( optional1.0Mpa, 1.6Mpa, 2.5Mpa, 4.0Mpa, 6Mpa, 10Mpa, 16Mpa, 25Mpa, 40Mpa) |
| Overall Accuracy | ±0.5%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -20-60°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -20-60°C |
| Response Time | <1 ms (10...90% FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Housing Material | Low copper aluminum alloy, stainless steel |
| Protection Rating | Electrical section IP65 |
| Electrical Connection | Terminal blocks, aviation plugs |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Fluororubber (FKM) |
| Mounting Type | Threaded, Flanged |
| Weight | approx. 0.3kg |

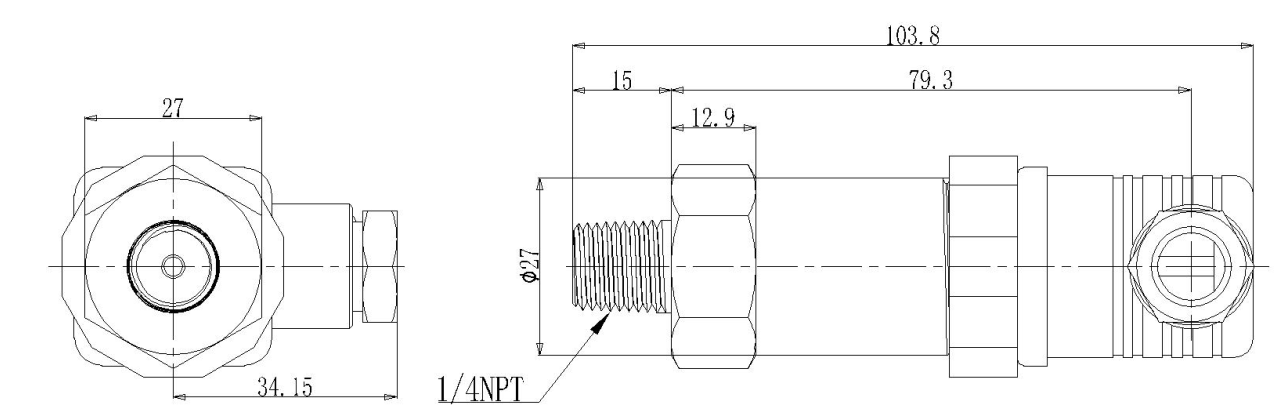

Product dimensions:
Application Areas:
■ PD-186 industrial pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
