New

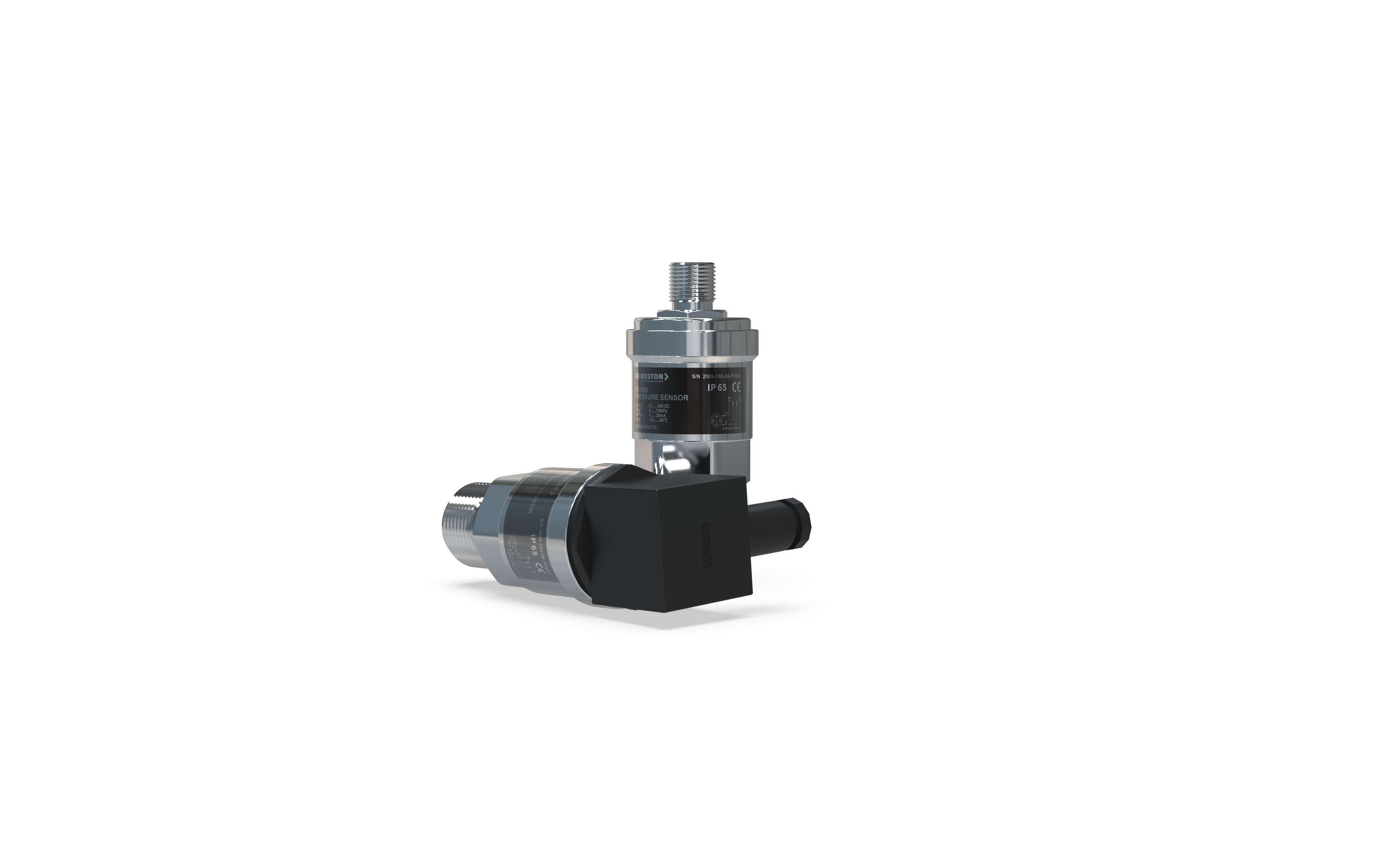

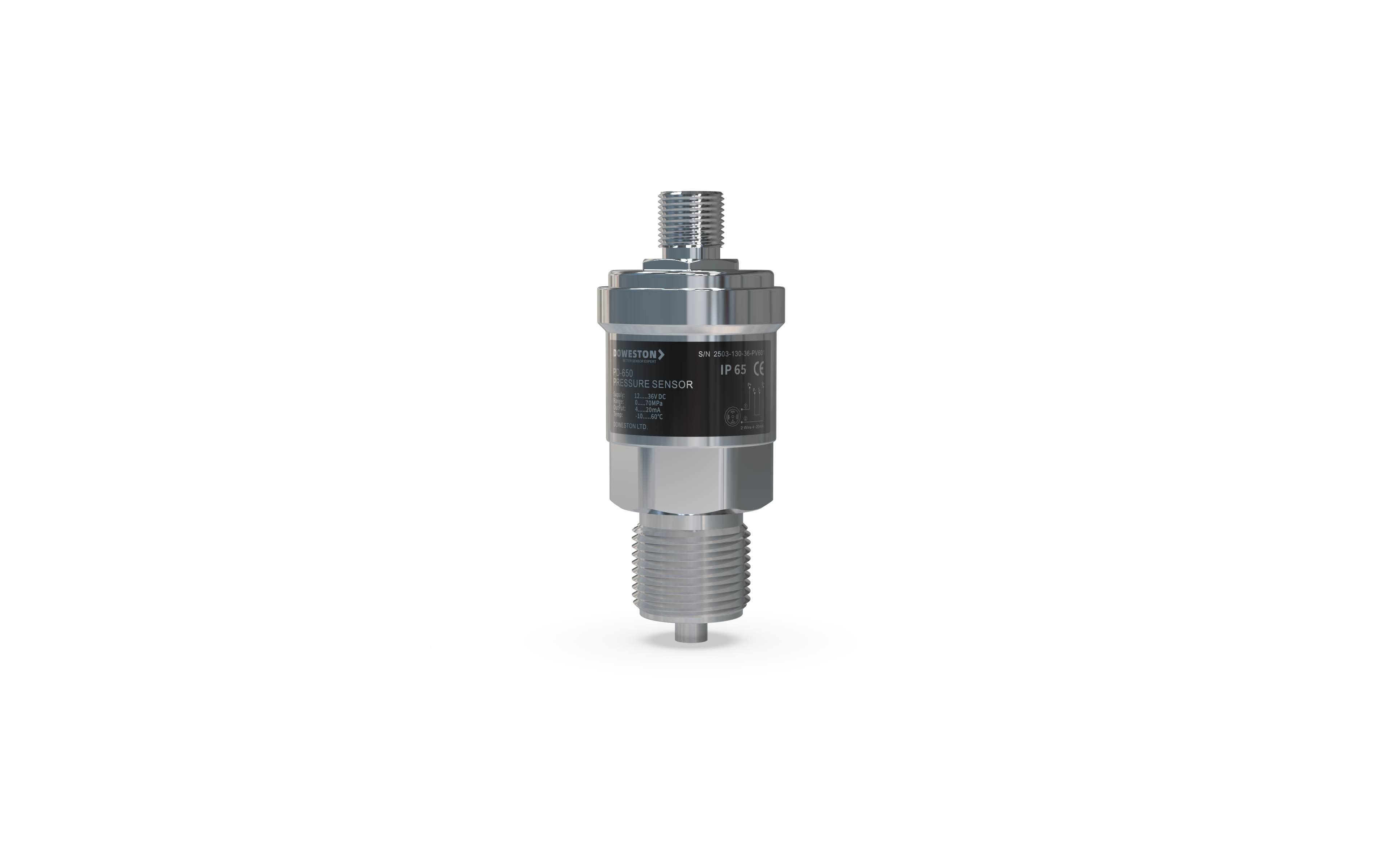

PD-218 high pressure explosion-proof pressure transmitter
It's routineMachinery and equipment, environmental protection projects pressureMeasurement
PD-218 high pressure explosion-proof pressure sensor is made of stainless steel, can convert pressure changes into linear standard current or voltage signals, withCost-effective features, YesThreadAnd other connection methods to meet the needs of different narrow working conditions.
It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: -100kPa~0··60MPa
■Measuring pressure type: gauge pressure, absolute pressure, sealing pressure
■ Comprehensive accuracy: ±0.5%FS
■ diaphragm Material: stainless steel 316L
■ process medium temperature: 115- (0.35x ambient temperature ) ℃
■ Overload pressure: refer to the range selection table
■ Explosion-proof level: Intrinsically safe explosion-proof ExiaIICT6 (only for 4~20mA)
■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.
■ Process connection: thread
■ Protective connections: Horsmann connectors, direct wiring, aerospace plugs
■ Seal: fluorine rubber (FKM)
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -100kPa~0···60MPa |
| Overall Accuracy | ±0.5%FS |
| Repeatability | 0.1%FS |
| Zero-point Thermal Drift | 35kPa: ±2%FS(0°C~60°C) Others: ±1.55%FS (-20°C~85°C) |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-105°C |
| Overload Pressure | Reference range selection table |
| Impact resistant | Shock: 20g/1ms; IEC 60068-2-27 Free fall: 1m; IEC 60068-2-32 |
| Ambient Temperature | -20-85°C |
| Response Time | ≤1ms (up to 90%FS) |
| Vibration resistance | Sinusoidal curve: 20g, 25Hz~2kHz; IEC 60068-2-6 Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64 |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Housing Material | Stainless Steel |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Aviation plug, Horsman connector, direct outlet |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Fluororubber (FKM) |
| Mounting Type | Thread |
| Weight | 120~150g |
Application Areas:
■ PD-218 high pressure explosion-proof pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
