Home > Products > Pressure Measurement > Pressure Sensor > PD-210G Series High-Frequency Dynamic Pressure Sensor
New

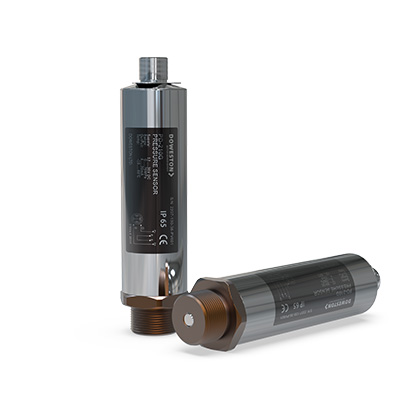

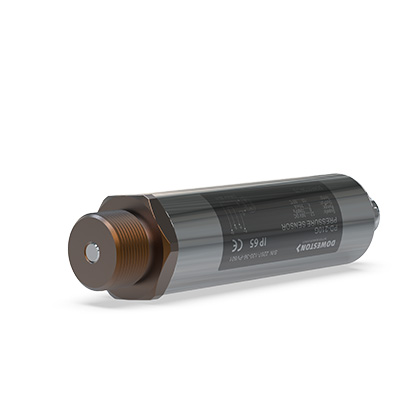

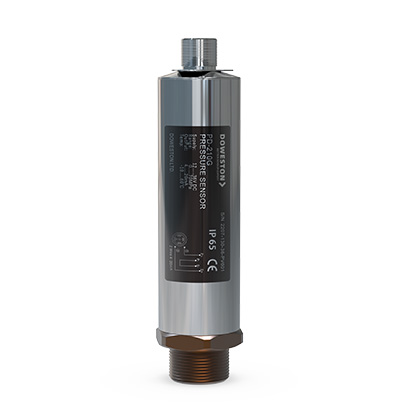

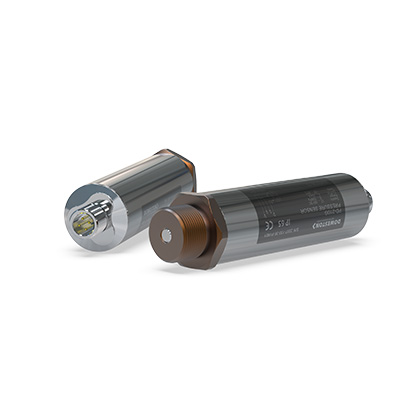

PD-210G series high frequency dynamic pressure sensor
Super cost-effective,High frequency dynamic response, laboratories and high-end testing equipment
PD-210G series high frequency dynamic pressure sensorCombined with high-frequency dynamic sensing elementsParts, selectable frequency response from 3kHZ~260kHz, the excellent circuit design can directly convert the sensor signal into a usable electrical signal, greatly reducing the frequency response caused by the transmission at any time. It has the characteristics of high response speed, durability and high precision. It is especially suitable for test equipment, experimental equipment, and aerospace testing that require fast response speed..
■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids
■ Measuring range: -0.1 to 70 MPa
■ Comprehensive accuracy: ±0.25%FS
■ Diaphragm material: 316L stainless steel
■ operating temperature:-35-80℃
■ Overload pressure: 150% FS
■ Burst pressure: 200% FS
■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.
■ Process connection: thread
■ Protective connections: Horsmann connectors, direct wiring, waterproof glands, aviation connectors
■ Seal: FKM (fluorine rubber)
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1-70MPa |
| Overall Accuracy | ±0.25%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -35-80°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -35-60°C |
| Response Time | <3-10ms (10...90%FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | ceramics (Al2O3 96%) |
| Housing Material | stainless steel 304 |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal blocks, Horsmann connectors, |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | FKM (fluorine rubber) |
| Mounting Type | Threaded, Flanged |
| Weight | Approx. 0.4 kg |
Application Areas:
■ PD-210G series high frequency dynamic pressure sensorIt is widely used in machinery and other industrial fields, automotive experimental equipment, testing equipment, test benches, aerospace ground testing equipment, emergency experiments, etc. to achieve the measurement of liquid, gas, and steam pressure.
