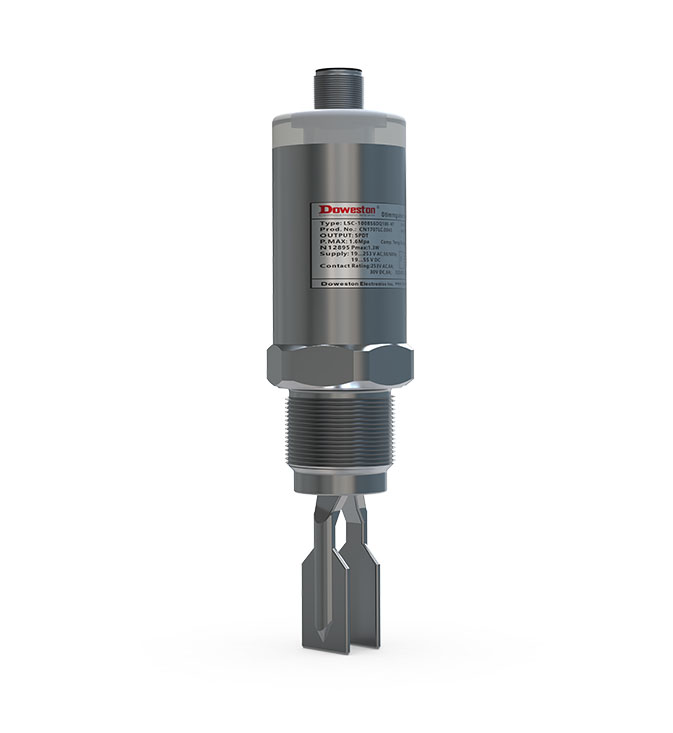

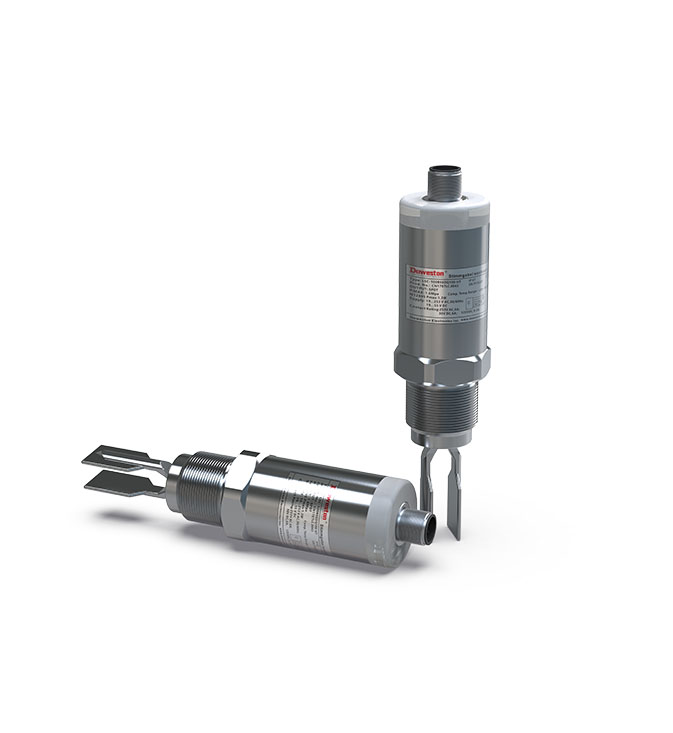

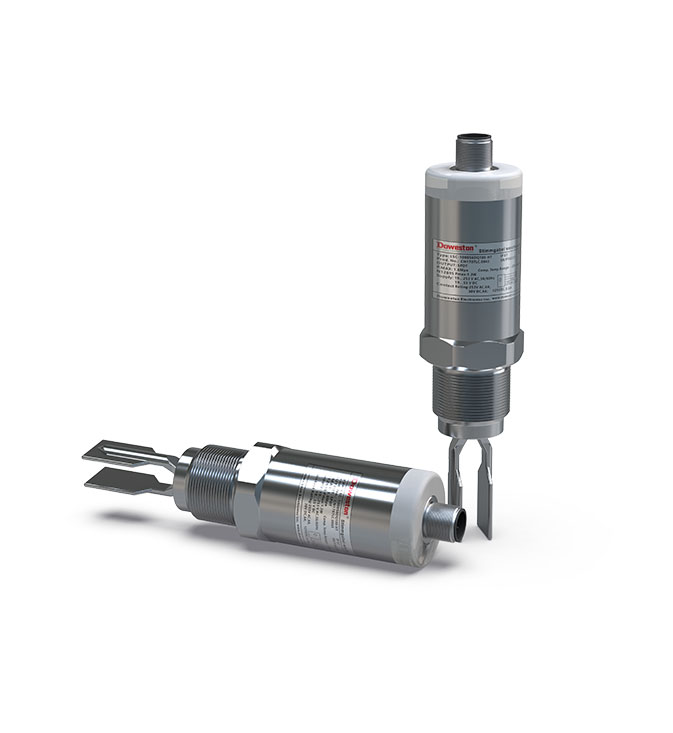

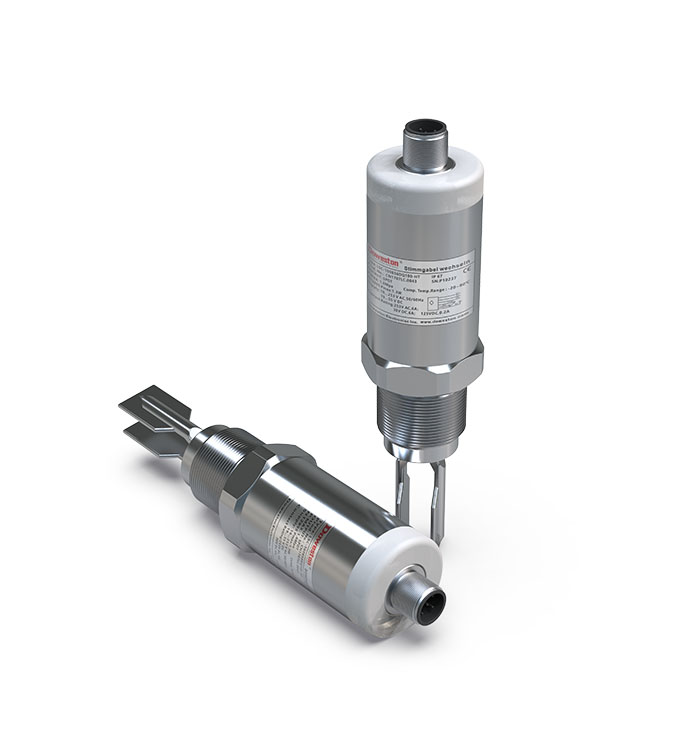

LST30 Series
Mini Tuning Fork Level Switch

LST30-Mini type tuning fork liquid level switchThe tuning fork vibrates at a certain resonant frequency through a pair of piezoelectric crystals installed on the tuning fork base. When dampened by the material, the amplitude decreases sharply and the frequency and phase change significantly. These changes will be detected by the internal electronic circuit, and after processing, they will be converted into switching signal output.Applicable solids: medium-density solid powders or granules that can flow freely. For example, fly ash, cement, sand, stone powder, plastic particles, salt, sugar, etc. can also be usedLiquids, corrosive liquids (acid, alkali solutions, etc.), high viscosity liquids, water, acids, alkali, mud, pulp, dyes, oils, milk, alcohol, beverages, etc.

 Application Areas:

■ The LST30-Mini tuning fork liquid level switch is mainly used for process control of liquid level in metallurgy, building materials, chemical industry, light industry, food and other industries.
