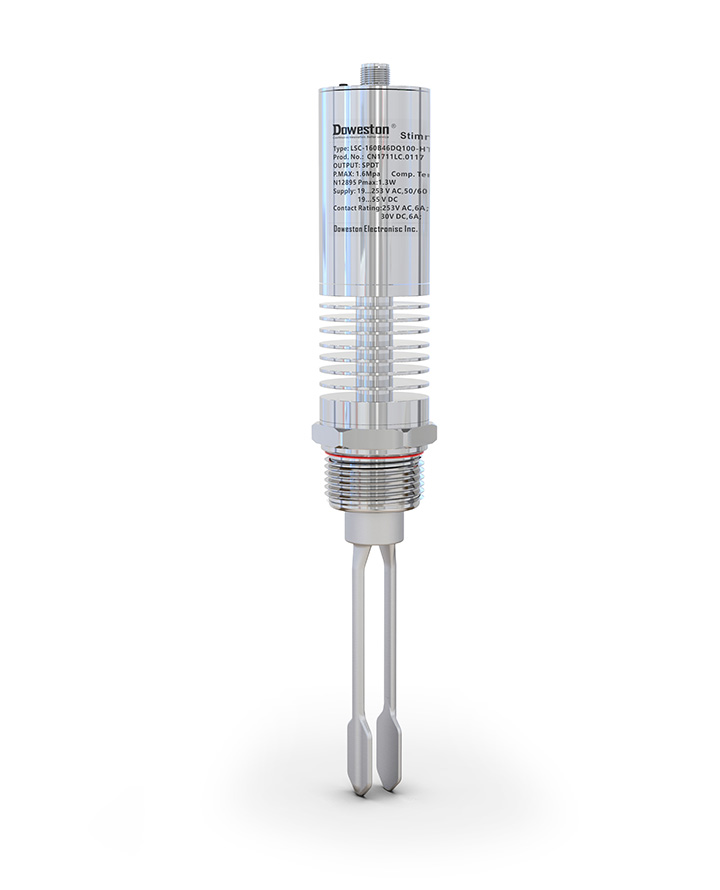

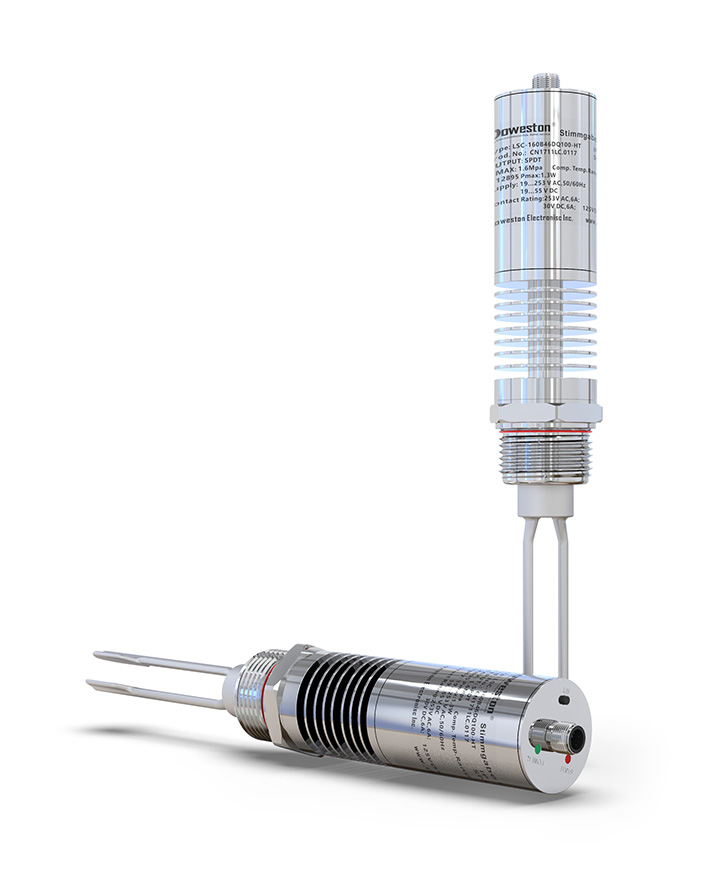

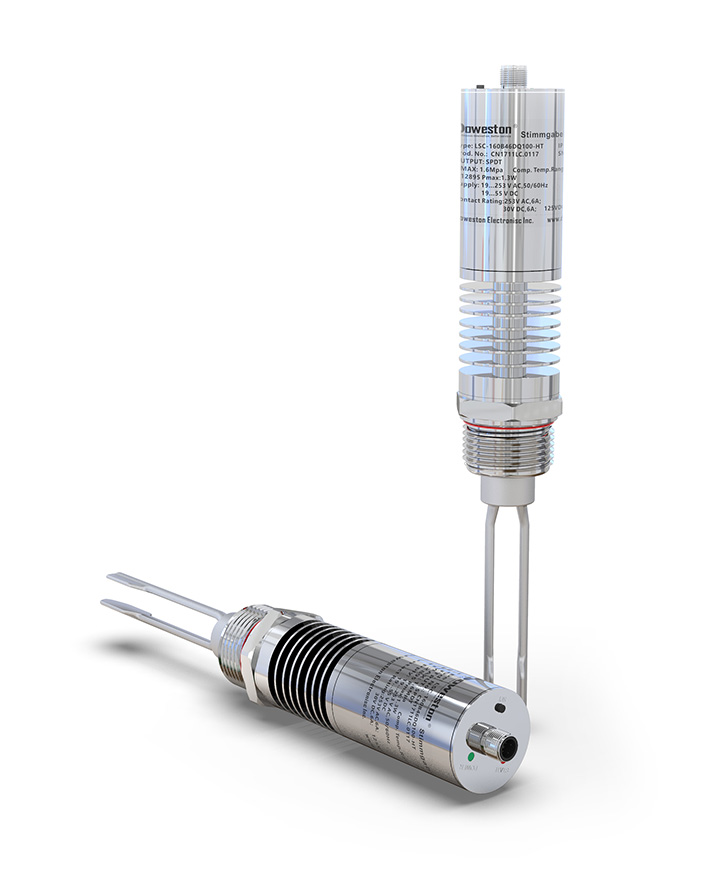

LSC-160 Series
High-Temperature Tuning Fork Level Switch

LSC-160 high temperature tuning fork liquid level switchThe tuning fork vibrates at a certain resonant frequency through a pair of piezoelectric crystals installed on the tuning fork base.

When dampened by the material, the amplitude decreases sharply and the frequency and phase change significantly. These changes will be detected by the internal electronic circuit, and after processing, they will be converted into switching signal output.

■ The high-temperature tuning fork liquid level switch has the characteristics of long service life, stable performance, strong adaptability, no adjustment and maintenance-free, etc.

■ Applicable solids: medium-density solid powders or granules that can flow freely. For example, fly ash, cement, sand, stone powder, plastic particles, salt, sugar, etc.

■ Applicable liquids: Measuring explosive and non-explosive hazardous liquids, corrosive liquids (acid, alkali solutions, etc.), high viscosity liquids, water, acid, alkali, mud, pulp, dyes, oils, milk, alcohol, beverages, etc.

■ Tuning fork material: stainless steel (optional coating of PP, PTFE)

 Application Areas:

■ LSC-160 is mainly used for process control of liquid level in metallurgy, building materials, chemical industry, light industry, food and other industries.
