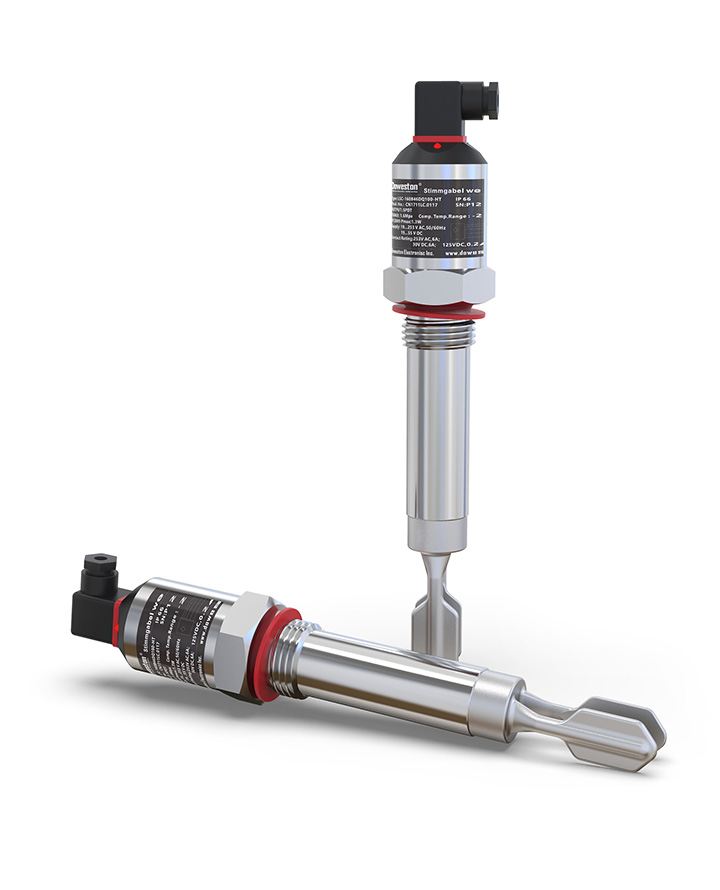

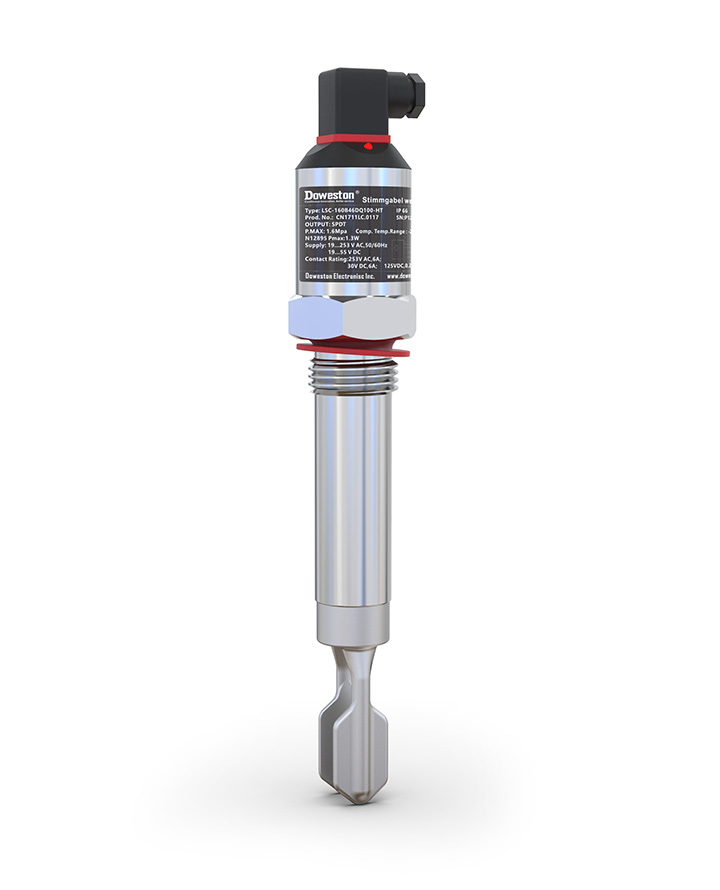

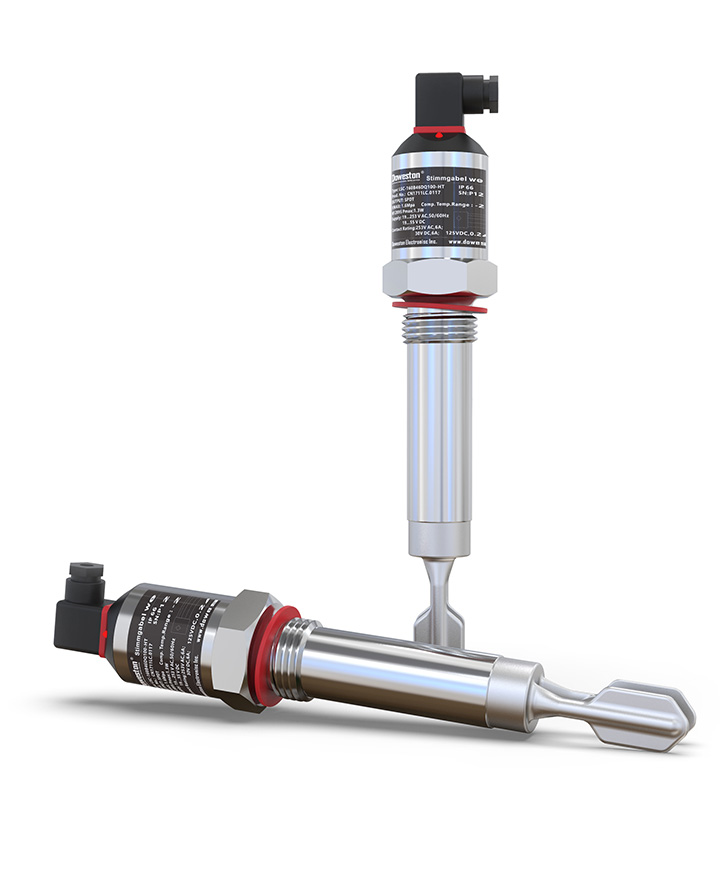

LSC-110 Series
Extended Tuning Fork Level Switch

LSC-110 Extended Tuning Fork Liquid Level SwitchThe tuning fork vibrates at a certain resonant frequency through a pair of piezoelectric crystals installed on the tuning fork base.

When dampened by the material, the amplitude decreases sharply and the frequency and phase change significantly. These changes will be detected by the internal electronic circuit, and after processing, they will be converted into switching signal output.

 Application Areas:

■ LSC-110 is mainly used for process control of liquid level in metallurgy, building materials, chemical industry, light industry, food and other industries.

■ Applicable solids: medium-density solid powders or granules that can flow freely. For example, fly ash, cement, sand, stone powder, plastic particles, salt, sugar, etc.

■ Applicable liquids: corrosive liquids (acid, alkali solutions, etc.), high viscosity liquids, water, acid, alkali, mud, pulp, dyes, oils, milk, alcohol, beverages, etc.

■ Tuning fork material: stainless steel (optional coating of PP, PTFE), stable performance, strong adaptability, no adjustment and maintenance-free, etc.

■ The extended tuning fork level switch has long service life and

■ Output: 2 sets of normally open and normally closed contacts; 0-10mA
