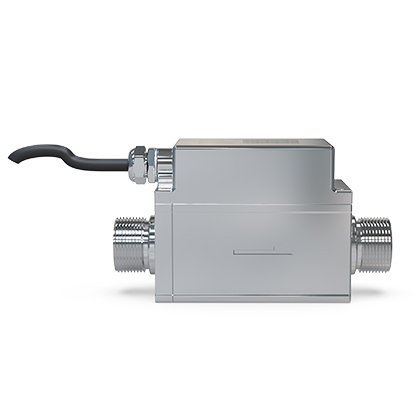

FTE-10X Series
MINI Electromagnetic Flow Meter

FTE-10X adopts Faraday electromagnetic induction measurement principle. When the conductive liquid flows through the measuring tube, under the action of the magnetic field generated by the excitation coil, the liquid cuts the magnetic wire to generate an induced electric potential, and the signal detected by the electrode is proportional to the fluid flow rate. After amplification, filtering and digital operation processing, the instrument outputs flow, cumulative volume and communication data to achieve high-precision online measurement.

■ There is no requirement for straight pipe sections before and after, and the lower limit of flow measurement is as low as 0.005m/s (5 millimeter per second);

■ Stainless steel electrode material has good stability and reliability;

■ Full digital processing, strong anti-interference ability, reliable measurement, high accuracy, and wide flow measurement range Width. ARM Cortex-M4 32-bit processor and 24-bit ADC;

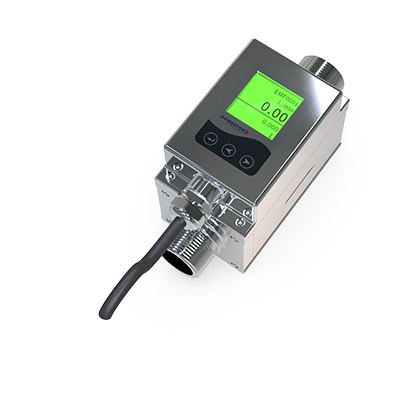

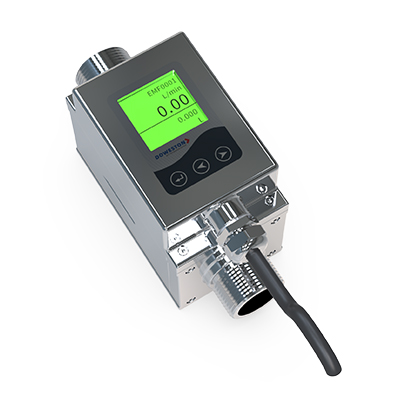

■ High-definition OLED display, screen can be rotated 360°;

■ All parameters can be viewed and set through the MODBUS host computer software;

■ The connection operation can be performed through Bluetooth APP, and the program can be upgraded through Bluetooth.;

■ Equipped with empty pipe alarm and excitation alarm, output 2 mA during empty pipe alarm, over-scale range Output 21 mA at 110% for easy process control;

■ With fluid temperature measurement function;
