New

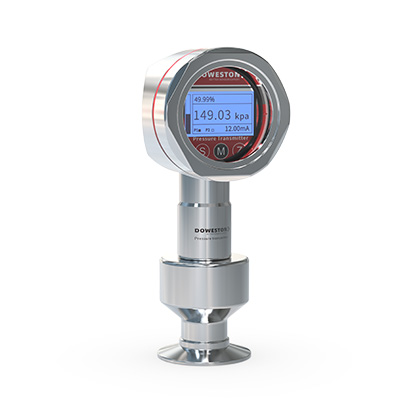

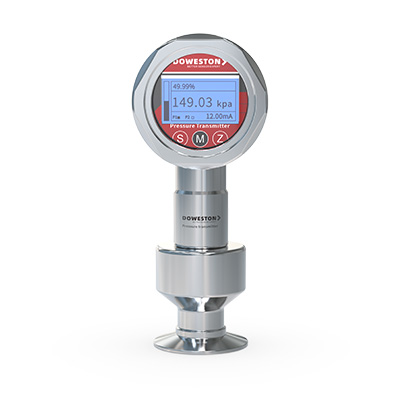

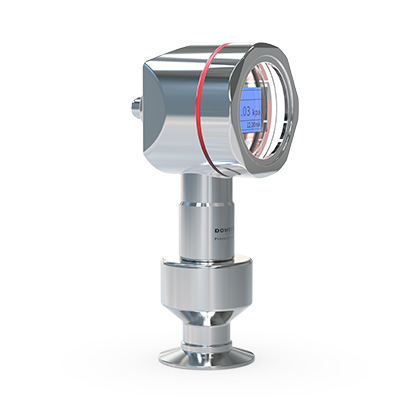

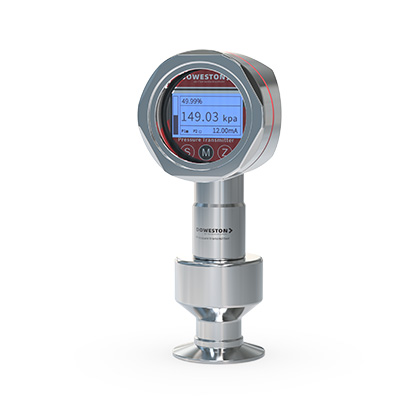

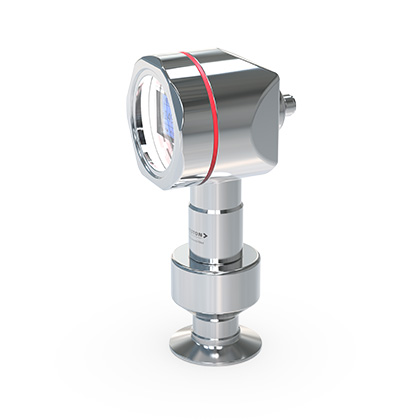

PD-310QE impact-resistant sanitary pressure transmitter
suitable forThere is impactHarsh wet cleaning situations pressureMeasurement
PD-310QE impact-resistant sanitary pressure transmittercombined withadvancedExpanded monocrystalline silicon sensing element with HART protocol and temperature compensation as standard, converting pressure changes into linear standard current or voltage signals, withHigh accuracy and repeatability, corrosion resistance, easy to clean, suitable for variousFrequent impact, sticky, moist, easy to crystallize, and easy to clogPressure measurement of media, equipped withDisplay function, Multiple output options, meeting different process requirements.
PD-310QE impact-resistant sanitary pressure transmitterThe fully isolated and sealed structure eliminates the influence of humidity and is suitable for harsh wet cleaning situations; the double-diaphragm overload protection structure can withstand a pressure of 42MPa and is suitable for harsh pressure overload situations; the transient voltage resistance meets the fourth-level standard (differential mode voltage: 2000V, common mode voltage: 4000V), suitable for harsh surge voltage situations; 20 linear points in the seven-segment temperature zone are up to 160 pressure calibration points, suitable for harsh temperature change situations
■ Measuring medium: corrosive, sticky, moist, easy to crystallize and easy to block gases and liquids
■ measuring range:10kPa-2MPa
■ Comprehensive accuracy: ±0.1%FS
■ Diaphragm material: stainless steel 316L (coated with PTFE, PP), Hastelloy C
■ operating temperature:-35-125℃
■ Output: 4-20 mA, RS-485, Hartetc.
■ Process connection: chuck, clamp
■ Warranty: Up to 3 years limited warranty
■ Electrical connection: aviation plug (IP65), waterproof gland (IP68)
■ Sealing: silicone, fluorine rubber
| Compatible Media | Corrosive, sticky, moist, easy to crystallize and easy to block gases and liquids |
| Measuring Range | 10kPa-2MPa |
| Turndown Ratio | 150:1 |
| Measuring Accuracy | ±0.1%FS, ±0.25%FS |
| Stability | Up to ±0.20% of upper range limit (URL), stable for 10 years |
| Pressure type | Gauge pressure, absolute pressure, negative pressure |
| Display | LED local display |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, RS-485, HART, etc. |
| Operating Temperature | -35-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <1 ms (10...90% FS) |
| Refresh time | 0.2S |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | Stainless steel 316L (coated with PTFE, PP), Hastelloy C |
| Surface roughness | Ra≤0.4μm |
| Housing Material | Aluminum alloy |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Aviation plug (IP65), waterproof gland (IP68) |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Mounting Type | Chuck, clamp |
Seal | Silicone, fluorine rubber |
| Weight | approx. 0.14kg |
Application Areas:
■ PD-310QE rugged sanitary pressure transmitterIt is widely used in industrial fields such as food, brewing, and pharmaceuticals to measure the pressure of liquids, gases, and steam.
