Home > Products > Level Measurement > Hydrostatic Level Meters > LPD-310Q Series Pressure-Based Level Transmitter
New

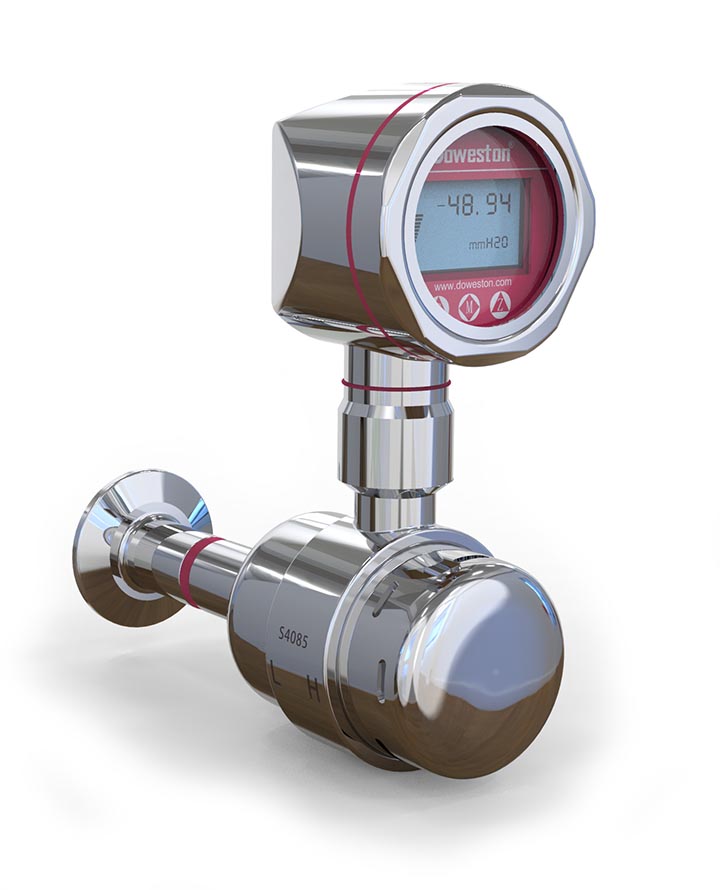

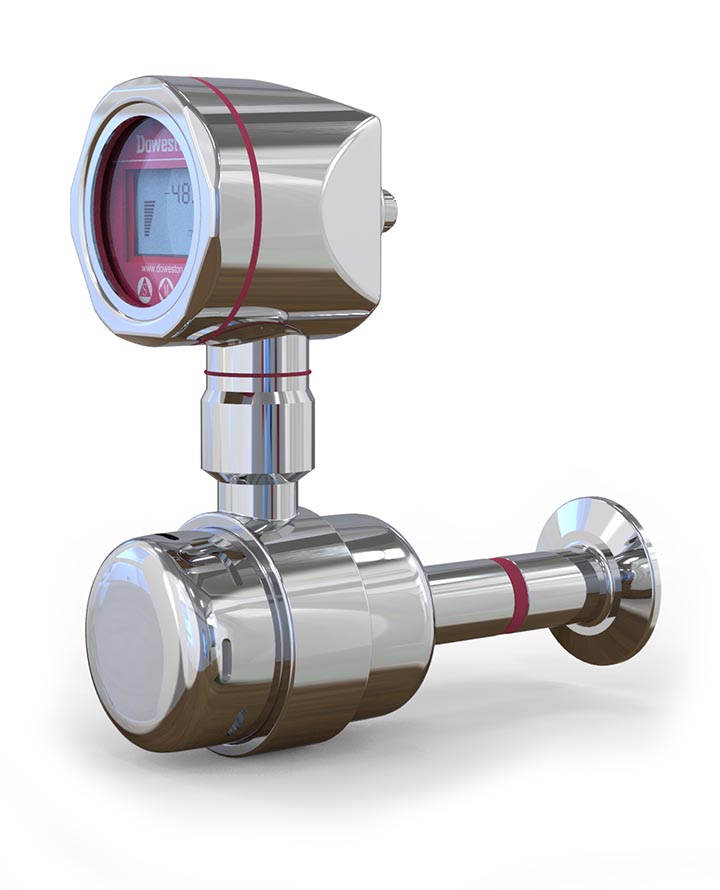

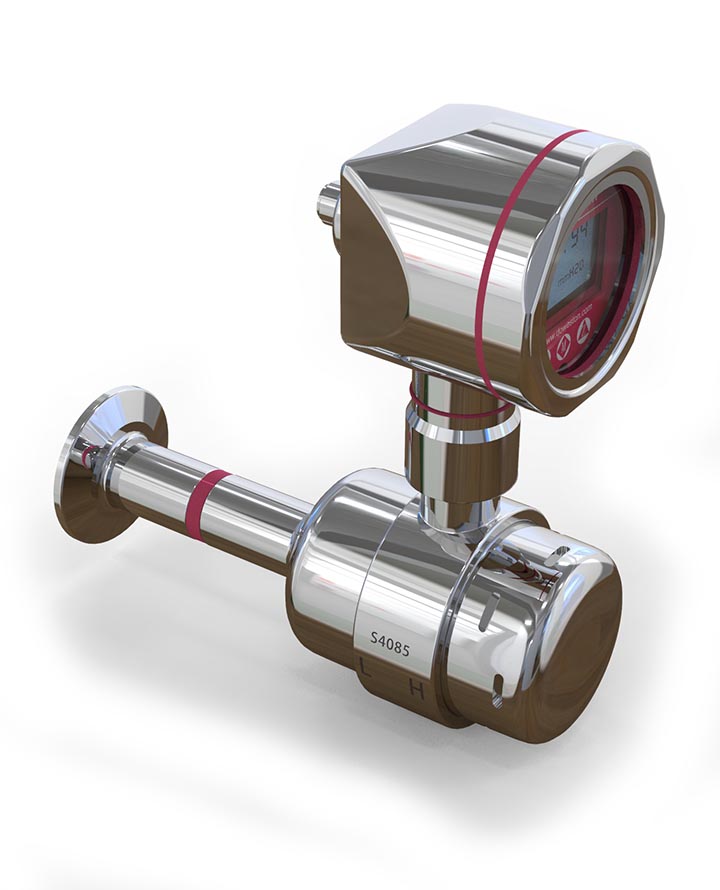

LPD-310Q pressure level gauge
YesFood, pharmaceutical and other industriesDedicated levelMeasurement
LPD-310Q pressure level gauge adopts single crystal silicon sensor.The design is exquisite and compact, and the middle part of the welding diaphragm is made of high-quality stainless steel 316L with roughnessRa≤0.4μm, conforming to sterile standards, the filling liquid complies withFDA health standards, with various international standard process connections, specially designed for the food and pharmaceutical industry, suitable for CIP/SIP cleaning and sterilization.With on-site display function,Diversified information output, including chuck, clamp, flange and other connection methods, It can meet the measurement needs of most food and pharmaceutical hygiene level requirements.
LPD-310Q pressure level gaugeIt can convert physical liquid level parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment.It is a liquid level measurement product widely used in the food and pharmaceutical industries.
■ Measuring medium: dry gas, gas, liquid, slightly corrosive liquid, viscous liquid
■ Measuring range: 0-100 meters
■ Comprehensive accuracy: ±0.1%FS
■ diaphragm Material: stainless steel 316L
■ Operating temperature: -35-125℃
■ Output: 4-20 mA, RS-485, Hartetc.
■ Process connections: chucks, clamps, flanges
■ Warranty: Up to 3 years limited warranty
■ Electrical connection: aviation plug (IP65), waterproof gland (IP68)
■ Seal: Silicone, fluorine rubber
| Compatible Media | Dry gases, gases, liquids that require hygienic requirements, |
| Measuring Range | 0-100 meters |
| Overall Accuracy | ±0.1%FS, ±0.25%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <3-10ms (10...90%FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | 316L stainless steel |
| Surface roughness | Ra≤0.4μm |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Electrical Connection | Aviation connector (GAR).(IP67), waterproof gland (IP68) |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | Silicone, fluorine rubber |
| Mounting Type | Chuck, clamp |
| Weight | approx. 0.15kg |
Application Areas:
■:It is widely used in liquid level measurement of tanks and equipment in food, brewing, pharmaceutical and other industrial fields.
