New

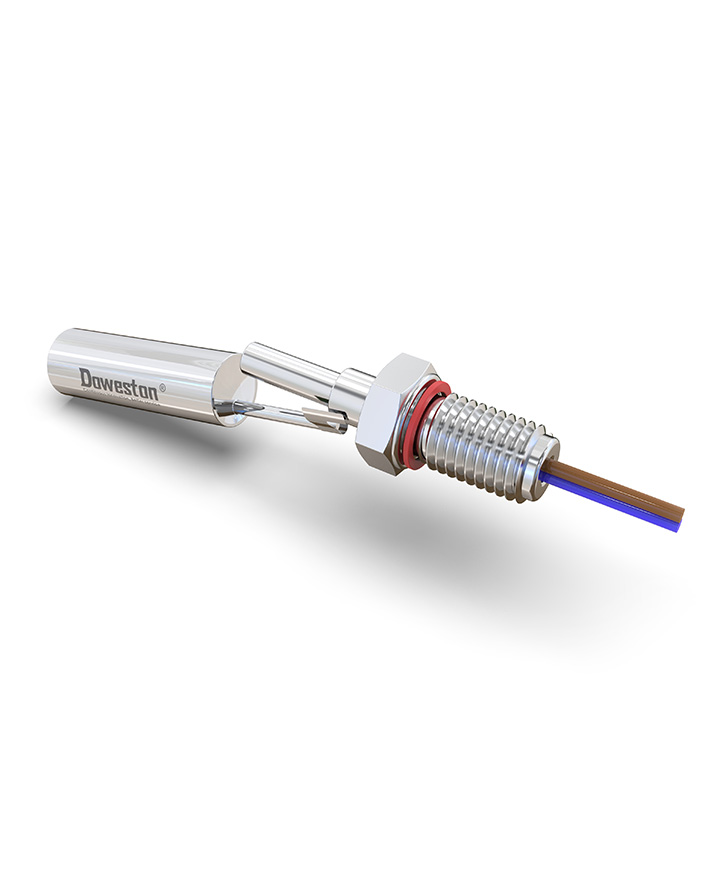

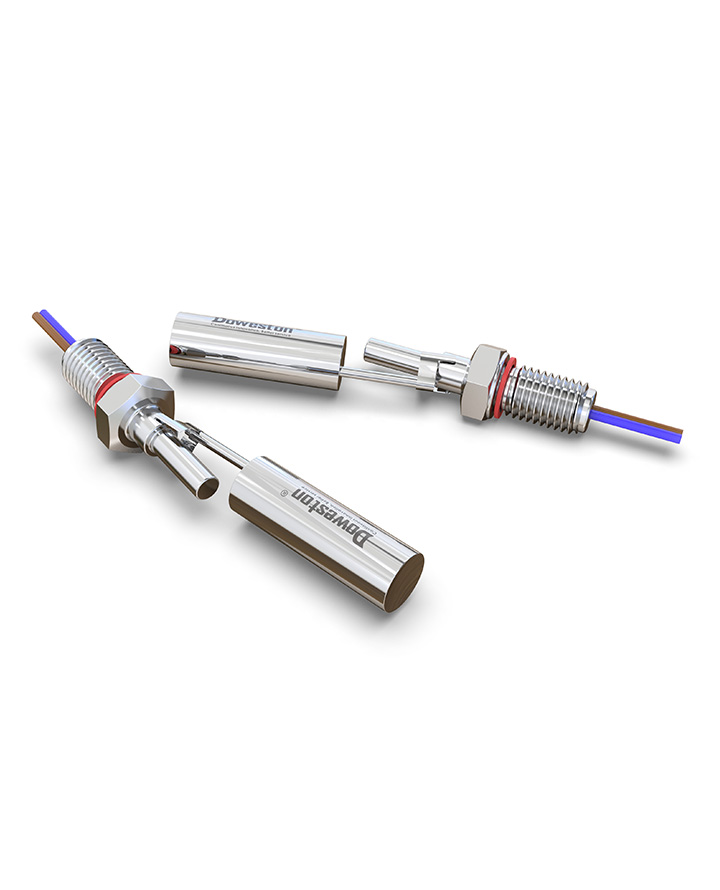

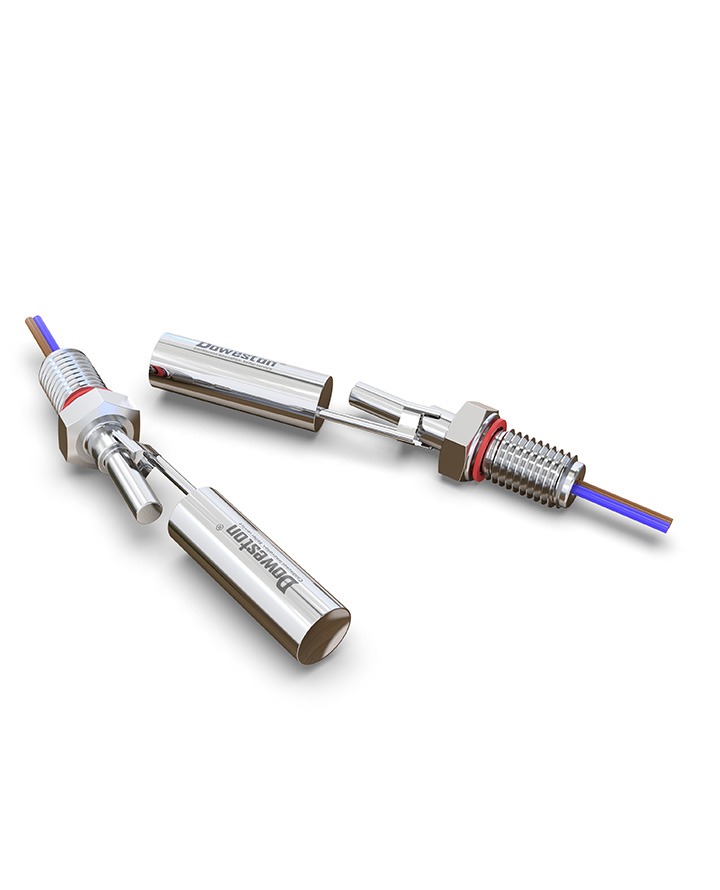

LCH side mounted small float level switch
MostTank and box liquid levels are full and emptyLiquid level alarm
The LCH side-mounted small float level switch uses the float to move up and down with the liquid, thereby triggering or releasing the magnetic reed switch in the tube and sending out a switch signal.featuresCompact structure, easy to install, corrosion resistance,covering most measurement requirements. Suitable forLiquid level alarms for various tanks and boxes, optionalMetal and plastic materials, Normally open and normally closed can be set.
The LCH side-mounted small float level switch has a reed switch in a sealed non-magnetic stainless steel. The float is equipped with a magnet. The liquid level drives the float to move up and down, thereby triggering or releasing the magnetic reed switch and sending out a switch signal to achieve the purpose of alarming.
■ operating pressure: 5bar
■ Material: stainless steel, rubber, PP, PVDF, PTFE, etc.
■ process medium temperature: -10-150°C
■Media density: greater than or equal to 0.75g/cm³
■ Input Output: Normally open, Normally closed, Normally open + Normally closed
■Contact type: reed switch
■ Contact capacity: 250AC, 0.5A
■ Protection rating: IP65
■ Wiring method: Directly attached
Suitable for specific gravity | ≥0.65 |
| Switching current | 0.5A |
| Energizing current | 1A |
| Operating Temperature | -10-150℃ |
| Material | Stainless steel, rubber, PP, PVDF, PTFE, PVC |
| Mounting Type | Threaded, Flanged |
| Electrical Connection | Directly attached cable (300mm), aviation plug, mini Horsman connector |
Application Areas:
■ LCH side-mounted small float level switch is suitable for full and empty liquid level alarms in most tanks and boxes.
