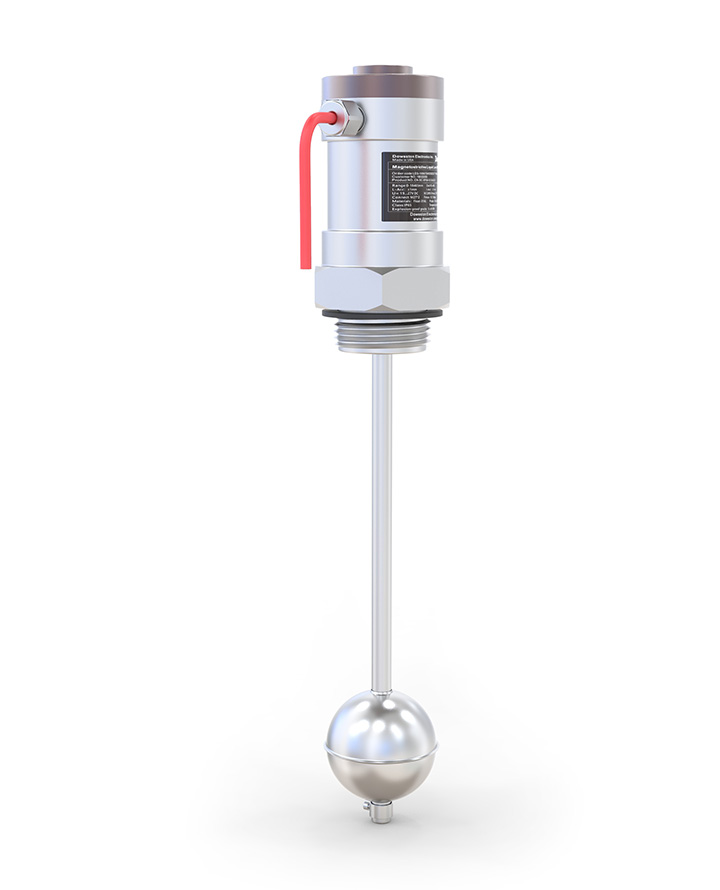

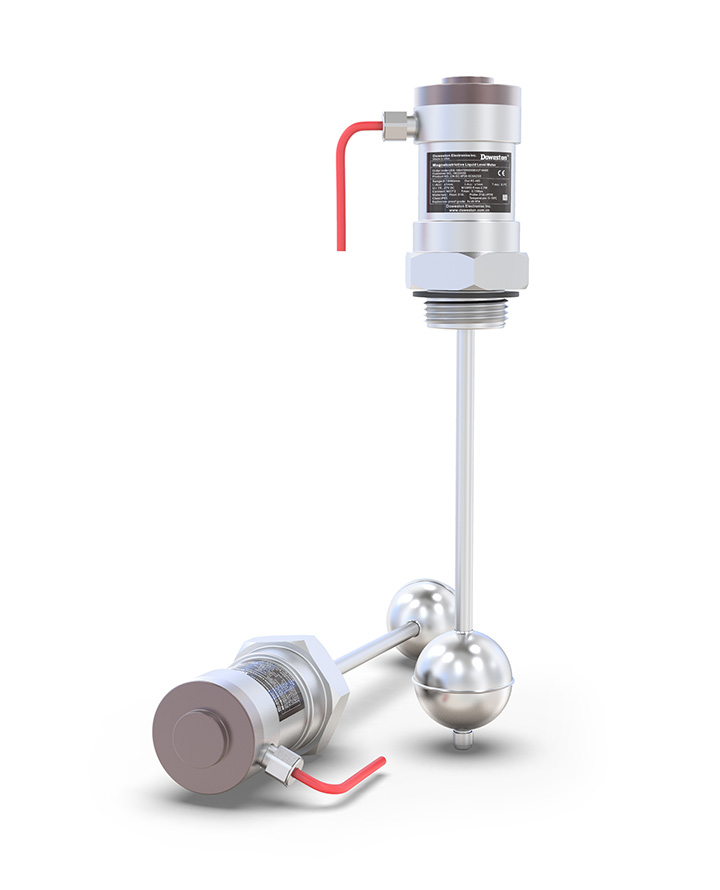

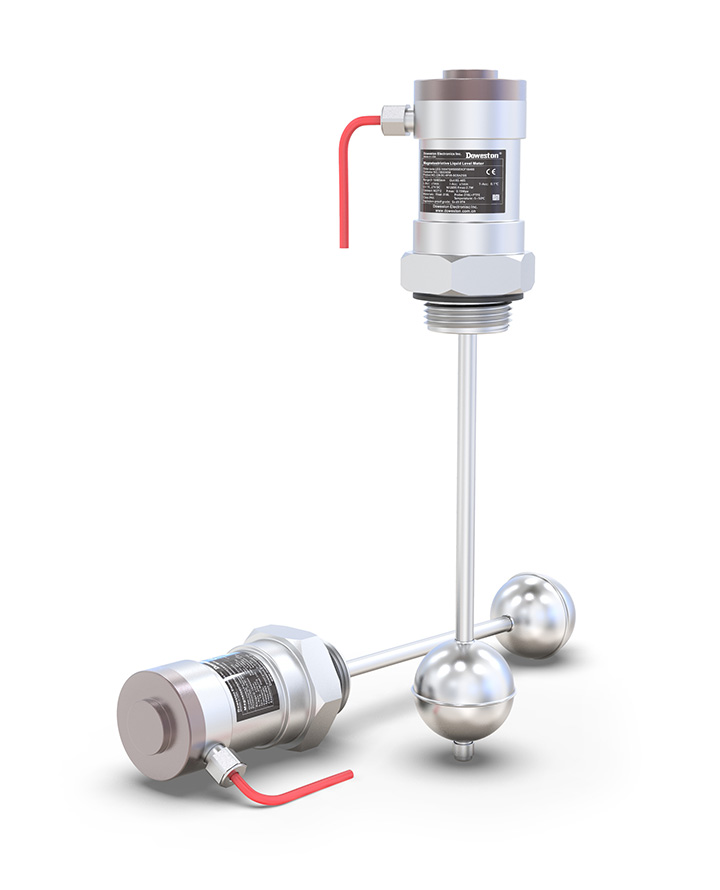

LEG-100A Series
Rigid Rod Magnetostrictive Level Transmitter

The LEG-100 rigid rod type magnetostrictive liquid level meter uses a stainless steel rod and float (PTFE coating can be applied externally under special circumstances), which is not affected by the physical and chemical properties of the liquid medium being measured. Regardless of the presence of steam, foaming, condensation, foam, boiling, corrosion, etc. in the liquid medium, or the presence of special conductivity, dielectric constant, pressure and vacuum environments, the sensor will not be affected and can transmit liquid level signals stably, accurately and in real time over long distances. LEG rigid stem magnetostrictive level gauges can be installed directly or via flange in any common liquid tank and metering equipment. It can provide double float measurement, one float measures the liquid/liquid interface, and one float measures the liquid/vapor interface. It is sturdy and reliable, easy to install, and does not require daily maintenance and calibration.

■Absolute position output, no need to reset to zero after power is restored

■Fast response

■Stability and reliability

■Easy to install, no need for regular calibration and maintenance

■High resolution and high precision

■Exquisite structure, strong environmental adaptability, anti-fouling, dust-proof, high pressure resistance

■External light protection grade IP67/IP69K

■Use Loop Power system to save wiring costs

■HART or RS485 communication interface

■4-20mA output
