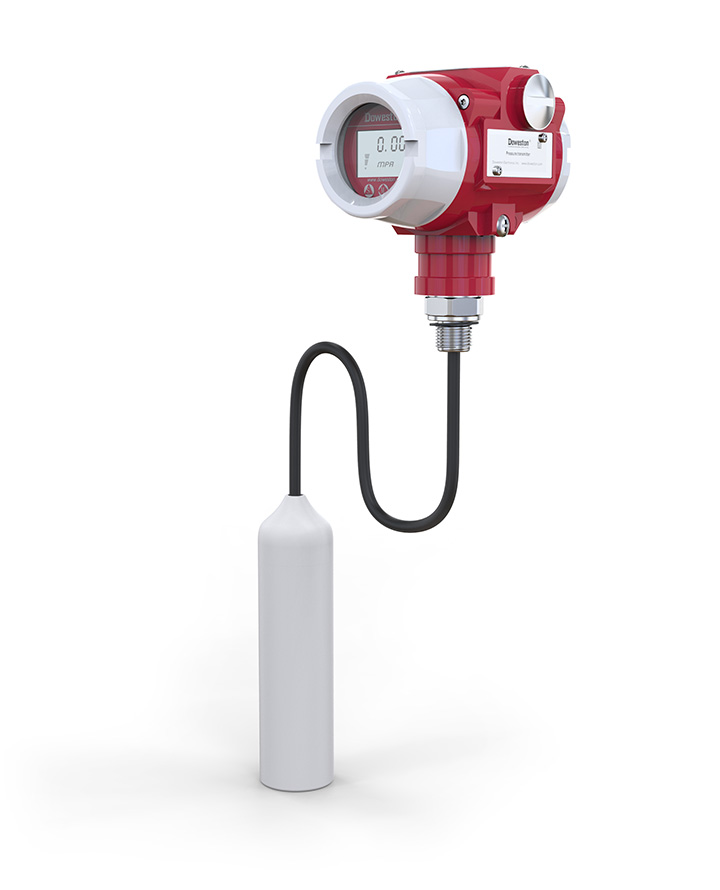

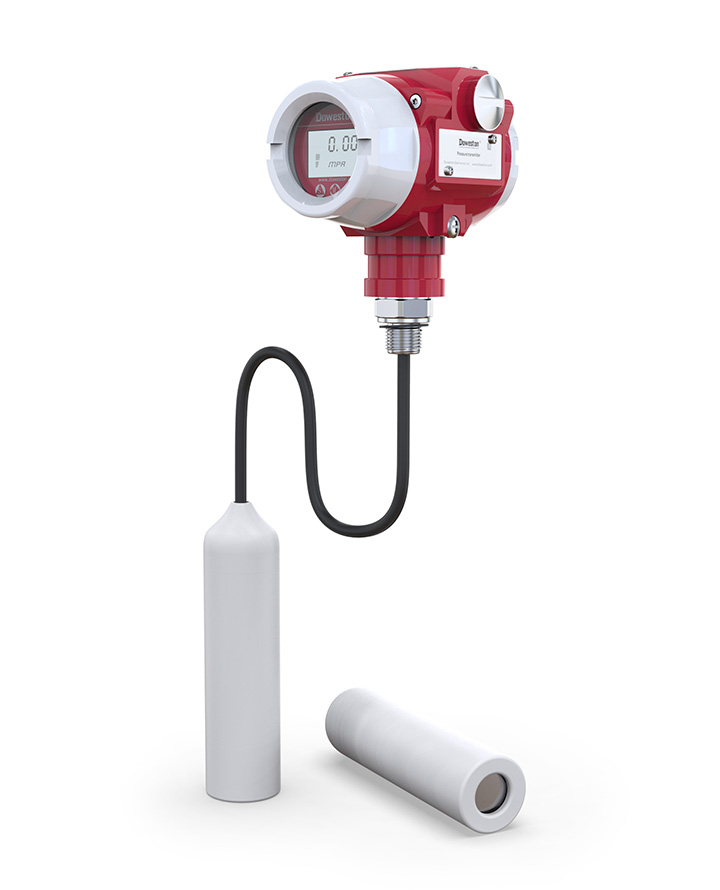

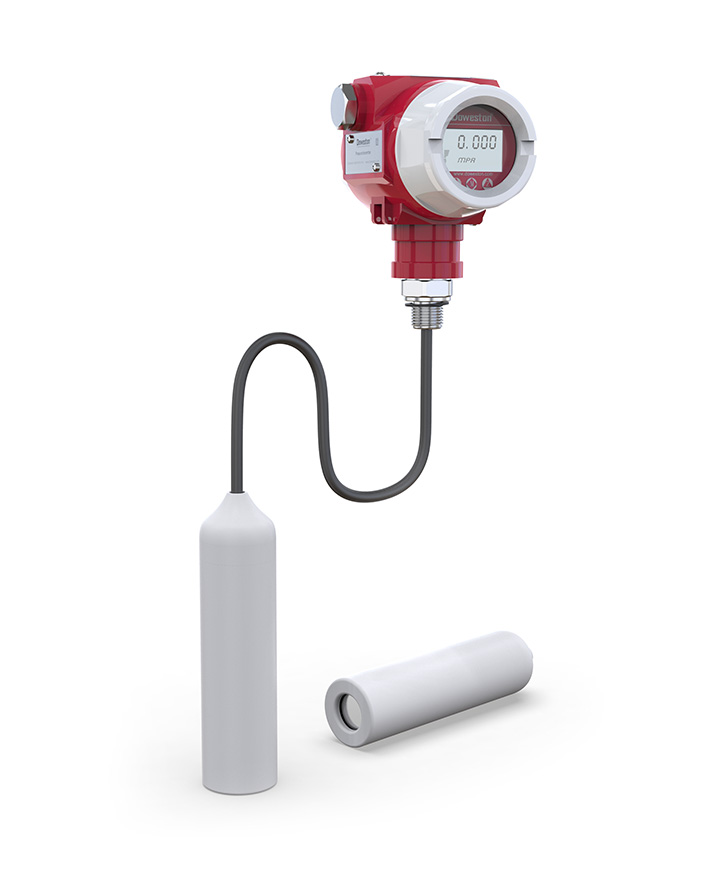

LPL-310D Series
Corrosion-Resistant Hydrostatic Level Transmitter

The LPL-310B anti-corrosion digital display hydrostatic level gauge is based on the principle that the measured static pressure of the liquid is proportional to the height of the liquid. It uses advanced foreign ceramic capacitive sensors to convert the static pressure into an electrical signal, and then through temperature compensation and linear correction, it is converted into a standard electrical signal (generally 4~20mA/1~5VD C), the sensor adopts a non-PTFE anti-corrosion probe protective shell with PTFE cable to solve the liquid level measurement of highly difficult corrosive liquids. It is a high-precision corrosion-resistant liquid level meter widely used in environmental protection, waste incineration power generation, leachate, and chemical plants. It can be connected to meters, recorders, computers, PLC program controllers or alarms, etc.

■ Measuring range: 0-200m

■ Comprehensive accuracy: ±0.1%FS

■ Probe material: stainless steel (optional coating of PP, PTFE)

■  Operating temperature: -40-125℃

■ Overload pressure: 150%FS

■ Burst pressure: 200%FS

■ Output: 4-20mA, Hart, RS485, etc.

■ Process connection: M20*1.5 8mm cable hole, built-in cable fixation

■ Protection level: IP65 for electrical parts (IP68 optional)

■ explosion-proof rating: ExdIICT6,NEPSI

■ Service life: >1*10^8 pressure cycle
