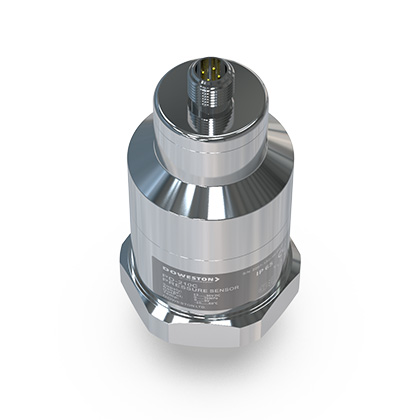

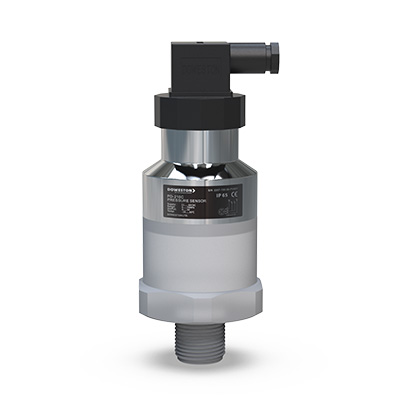

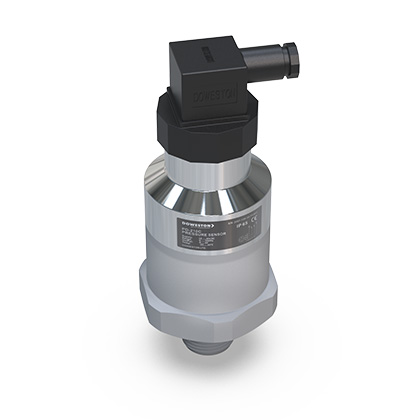

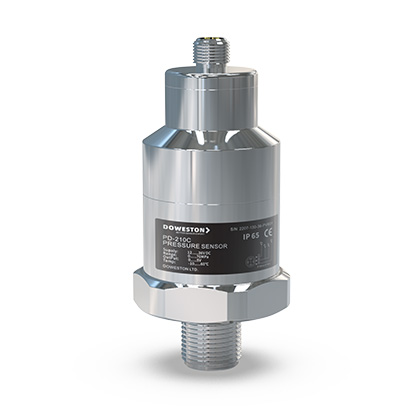

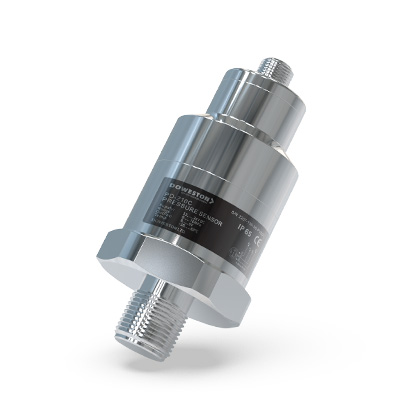

PD-210C series capacitive pressure sensor
Ultra-high precision,High anti-overload capability, Mechanical equipment, hydraulic industry, etc.
PD-210C series capacitive pressure sensorCombined with new ceramic piezoresistive sensing elementComponents, combined with advanced circuit processing and temperature compensation technology, convert pressure changes into linear standard current or voltage signals, withHigh cost performance, vibration resistance, high overload protection, suitable forwith a certainMildly corrosive fluids and gaseous media, Multiple output options, withThreaded, FlangedAnd other connection methods to meet the needs of different working conditions.
■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids
■ Measuring range: -0.1 to 70 MPa
■ Comprehensive accuracy: ±0.1%FS
■ Diaphragm material: ceramic (Al2O3 96%)
■ Operating temperature: -40 to 125°C
■ Overload pressure: 150% FS
■ Burst pressure: 200% FS
■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.
■ Process connection: threaded, flanged
■ Protective connections: Horsmann connectors, direct wiring, waterproof glands
■ Seal: FKM (fluorine rubber)
| Compatible Media | Dry gases, gases, liquids, mildly corrosive liquids, viscous liquids |
| Measuring Range | -0.1-70MPa |
| Overall Accuracy | ±0.1%FS |
| Repeatability | ≤ ±0.1% FS/year |
| Zero-point Thermal Drift | ±0.02FS/°C |
| Input Voltage | 12-36V DC |
| Output | 4-20 mA, 0-5 V, 0-10 V, etc. |
| Operating Temperature | -40-125°C |
| Overload Pressure | 150%FS |
| Burst Pressure | 200%FS |
| Ambient Temperature | -40-80°C |
| Response Time | <3-10ms (10...90%FS) |
| Vibration resistance | ±20g 20-5000Hz |
| Service Life | >1x10^8 pressure cycles |
| Wetted Material | ceramics (Al2O3 96%) |
| Housing Material | stainless steel 304 |
| Protection Rating | Electrical: IP65 (IP68 optional) |
| Electrical Connection | Terminal blocks, Horsmann connectors, |
| Electrical Protection | Overload/Reverse Polarity Protection |
| Seal | FKM (fluorine rubber) |
| Mounting Type | Threaded, Flanged |
| Weight | Approx. 0.4 kg |
Application Areas:
■ PD-210C series pressure transmitterWidely used in water plants, refineries, wastewater treatment plants, construction, light industry, machinery and other industrial sectors for measuring the pressure of liquids, gases and steam.
