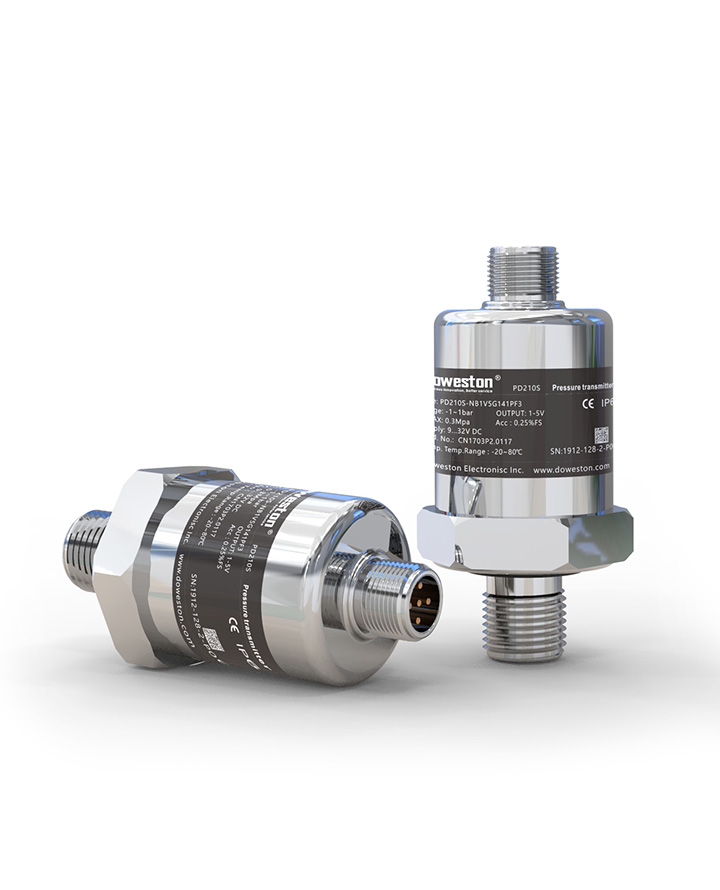

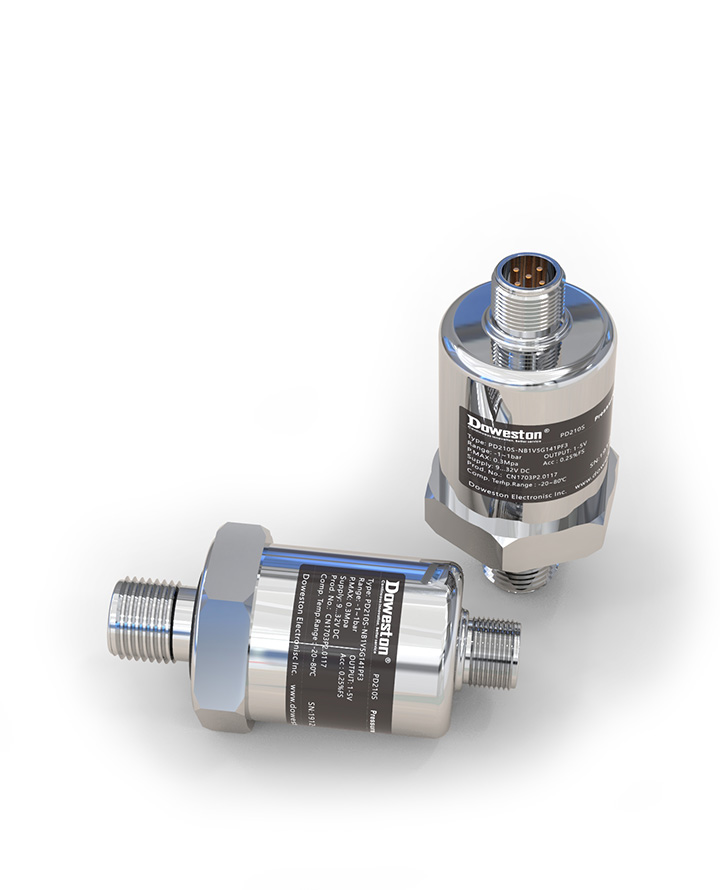

PD-186D Series
Compact Pressure Transmitter

PD-186D industrial pressure transmitterIt can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment. Special OEM products are widely used in various industrial automation environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemicals, oil wells, electric power, ships, machine tools, pipelines and many other industries.

■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids

■ measuring range:-0.1-40MPa

■ Comprehensive accuracy: ±0.5%FS

■ Diaphragm material: 316L stainless steel

■ operating temperature:-20-60℃

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.

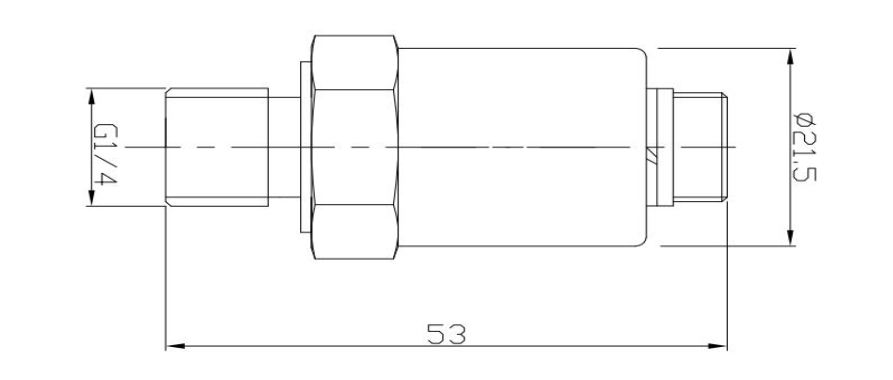

■ process connection:G1/4, NPT1/4, R1/4

■ Protective connection: three-core connector

■ Seal: fluorine rubber (FKM)
