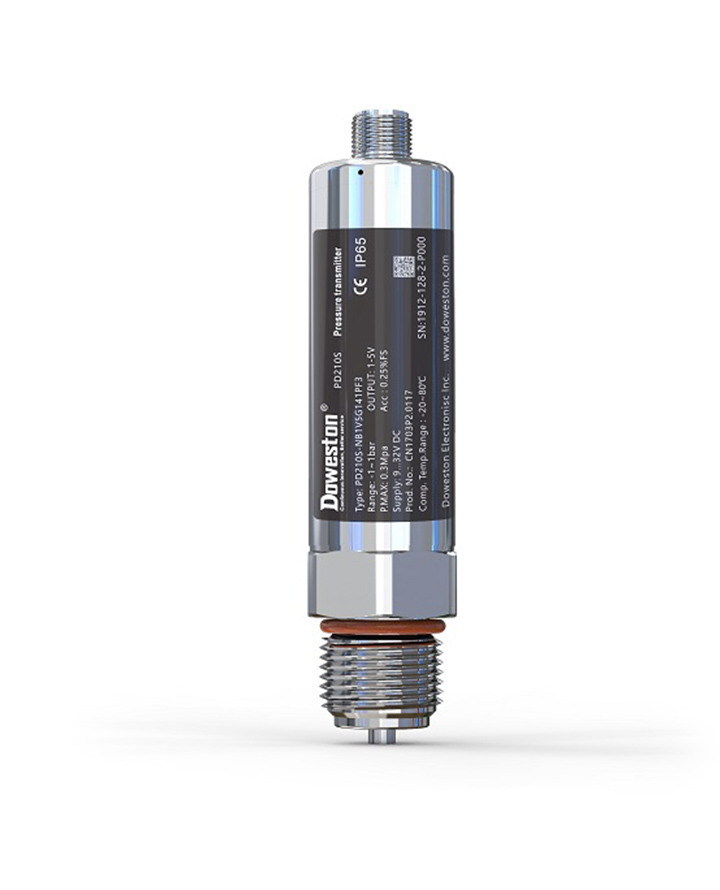

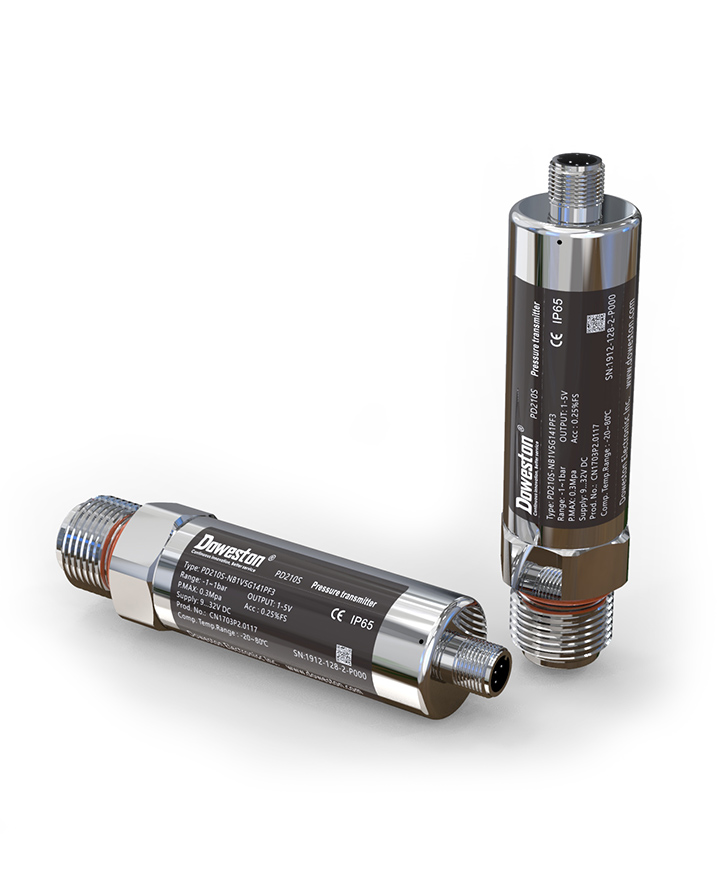

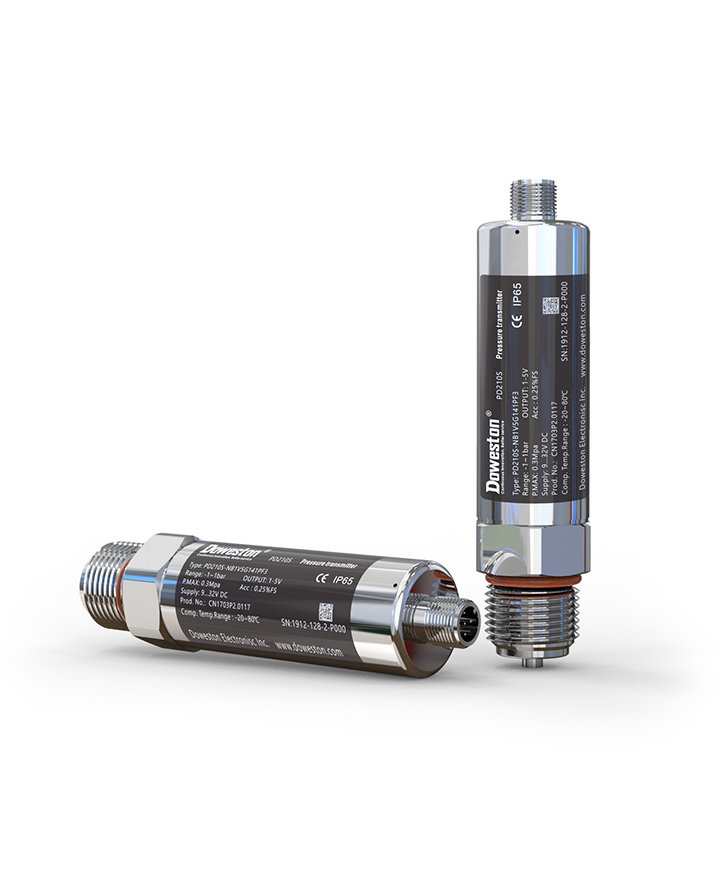

PD-210H Series
Monocrystalline Silicon High-Performance Pressure Transmitter

PD-210H series monocrystalline silicon high-performance pressure transmitterIt can convert physical pressure parameters such as gas and liquid sensed by the load cell sensor into standard electrical signals (such as 4~20mADC, etc.) to supply secondary instruments such as indicating alarms, recorders, and regulators for measurement, indication, and process adjustment.

It is widely used in various industrial automatic control environments, involving water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemical, oil wells, electric power, ships, machine tools, pipelines and many other industries.

■ Measured media: dry gases, gases, liquids, mildly corrosive liquids, viscous liquids

■ Measuring range: -0.1 to 70 MPa

■ Comprehensive accuracy: ±0.25%FS

■ Diaphragm material: ceramics (Al2O3 96%)

■ Operating temperature: -40 to 125°C

■ Overload pressure: 150% FS

■ Burst pressure: 200% FS

■ Output: 4-20 mA, 0-5 V, 0-10 V, etc.

■ Process connection: threaded, flanged

■ Protective connections: Horsmann connectors, direct wiring, waterproof glands

■ Seal: FKM (fluorine rubber)
